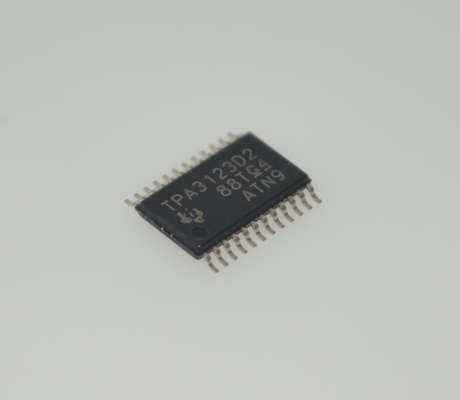

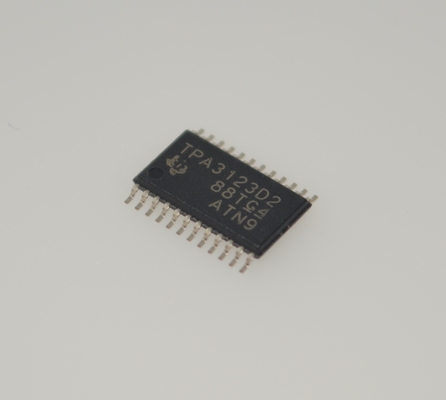

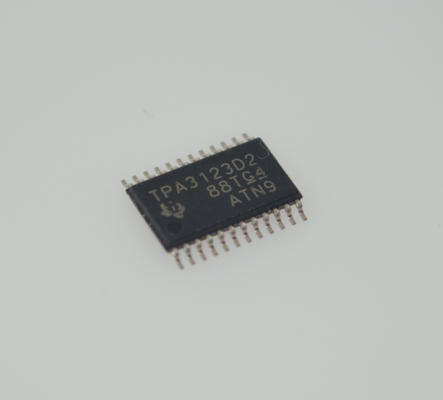

TPA3123D2PWPR Class D Amp 15W Stereo 92% Efficiency 8-26V Wide Input Thermal Protection Low THD+N Pop-Free Start Compact TSSOP-28 EMI Reduced Hi-Fi Audio

TPA3123D2PWPR Class D Amp 15W Stereo 92% Efficiency 8-26V Wide Input Thermal

Protection Low THD+N Pop-Free Start Compact TSSOP-28 EMI Reduced Hi-Fi Audio

andnbsp;

FEATURES

andbull; 25-W/ch into a 4-Ω Load from a 27-V Supply 2

andbull; 20-W/ch into a 4-Ω Load from a 24-V Supply

andbull; Operates from 10 V to 30 V

andbull; Efficient Class-D Operation Eliminates Need for Heat Sinks

andbull; Four Selectable, Fixed-Gain Settings

andbull; Internal Oscillator (No External Components Required)

andbull; Single-Ended Analog Inputs

andbull; Thermal and Short-Circuit Protection With Auto Recovery

andbull; Space-Saving Surface-Mount 24-Pin TSSOP Package

andbull; Pin-to-Pin compatible with TPA3120D2

andbull; Advanced Power-Off Pop Reduction

andnbsp;

APPLICATIONS

andbull; Televisions

andnbsp;

DESCRIPTION

The TPA3123D2 is a 25-W (per channel) efficient, Class-D audio power amplifier for driving stereo speakers in a single-ended configuration or a mono speaker in a bridge-tied-load configuration. The TPA3123D2 can drive stereo speakers as low as 4 Ω. The efficiency of the TPA3123D2 eliminates the need for an external heat sink when playing music.

The gain of the amplifier is controlled by two gain select pins. The gain selections are 20, 26, 32, 36 dB.

The patented start-up and shut-down sequences minimize pop noise in the speakers without additional circuitry.

andnbsp;

INFORMATION

andnbsp;

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active andamp; passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer andamp; Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal andamp; Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
