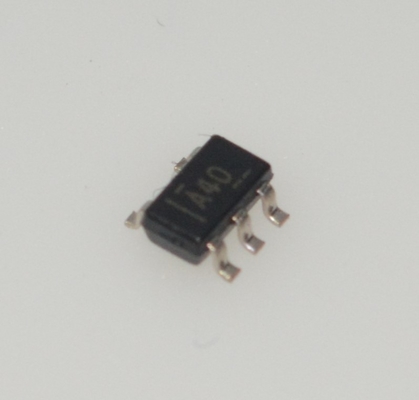

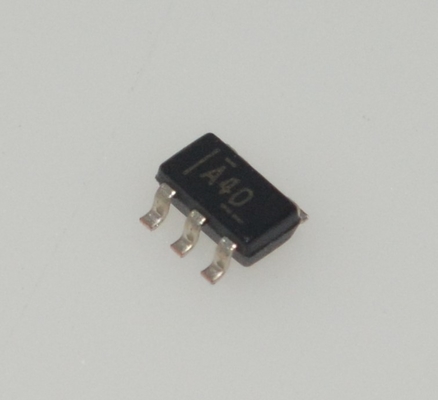

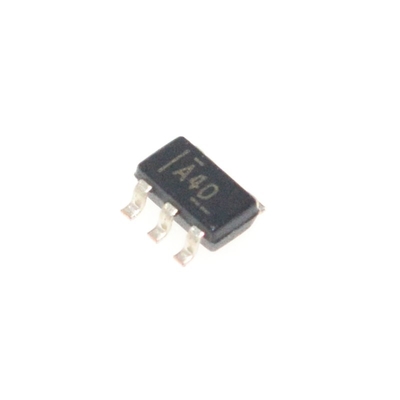

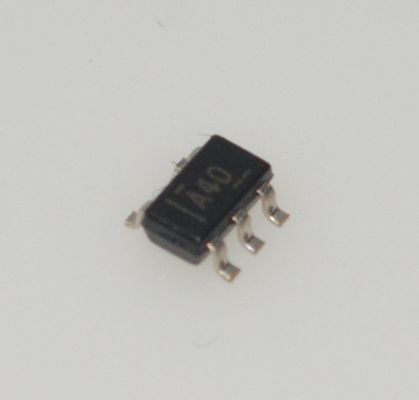

OPA340NA Single-Supply CMOS Op-Amp with 5.5MHz BW 2V/µs Slew Rate Rail-to-Rail I/O 750µA Quiescent Current 2.7-5.5V Operation SOT23-5 Package for Portable & Battery-Powered Apps

OPA340NA Single-Supply CMOS Op-Amp with 5.5MHz BW 2V/µs Slew Rate Rail-to-Rail I/O 750µA Quiescent Current 2.7-5.5V Operation SOT23-5 Package for Portable & Battery-Powered Apps

Features
Rail-to-Rail input
Rail-to-Rail Output (Within 1 mV)
MicroSize Packages
Wide Bandwidth: 5.5 MHz
High Slew Rate: 6 V/us
Low THD +Noise: 0.0007%(f=1 kHz)

Low Quiescent Current: 750 μA/Channel

Single, Dual, and Quad Versions

Applications
Driving A/D Converters

PCMCIA Cards

Data Acquisition

Process Control

Audio Processing

Communications

Active Filters

Test Equipment

Description
The OPA340 series rail-to-rail CMOS operationa amplifiers are optimized for low-voltage, single-supply operation. Rail-to-rail input and output and highspeed operation make them ideal for driving sampling analog-to-digital(AD)converters. They are also well-suited for general purpose and audio applications aswell as providing l/V conversion at the output ofdigital-to-anal0g(D/A)converters. Single,dual, andquad versions have identical specifications for design flexibility.

The OPA340 series operate on a single supply as lowas 2.5 Vwith an input common-mode voltage rangethat extends 500 mVbelow ground and 500 mVabove the positive supply.Output voltage swing is towithin 1 mV of the supply rails with a 100-kΩ load.These devices offer excellent dynamic response(BW= 5.5 MHz, SR =6 V/us),yet quiescent currentis only 750A.Dual and quad designs feature completely independent circuitry for lowest crosstalkand freedom from interaction.

All are specified from -40'C to 85°C and operatefrom -55“C to 125°C

INFORMATION

Drawing
