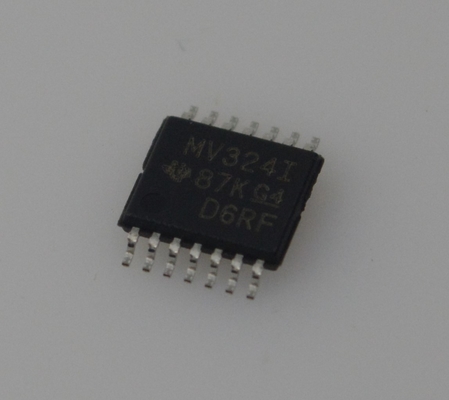

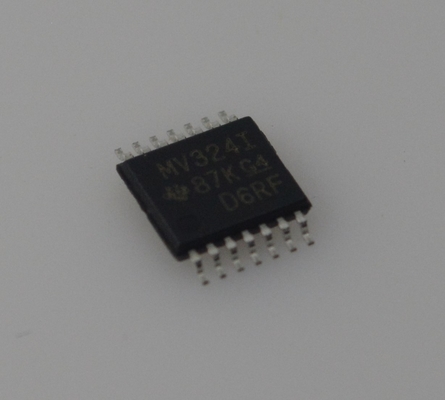

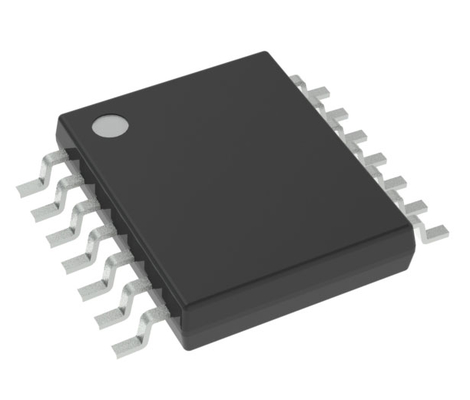

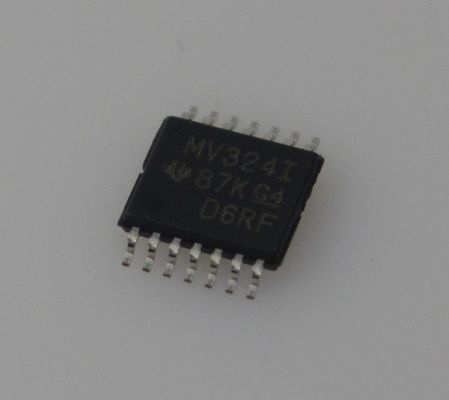

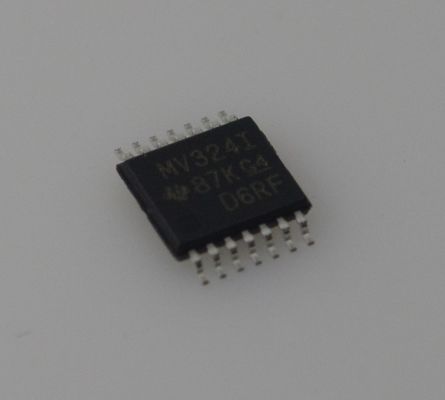

LMV324IPWR Low-Cost Quad Op-Amp with Rail-to-Rail Output 1.1MHz Bandwidth Low IQ (24µA/amp) 2.7-5.5V Operation Tiny TSSOP-14 Package -40°C to 125°C Range ESD Protection & High EMI Rejection

LMV324IPWR Low-Cost Quad Op-Amp with Rail-to-Rail Output 1.1MHz Bandwidth Low IQ (24µA/amp) 2.7-5.5V Operation Tiny TSSOP-14 Package -40°C to 125°C Range ESD Protection & High EMI Rejection

Features

2.7-V and 5-V Performance

-40°C to 125°C Operation

Low-Power Shutdown Mode (LMV324S)

No Crossover Distortion

Low Supply Current

  LMV321:130 μA TyP

  LMV358:210 μA TyP

  LMV324: 410 μA TyP

  LMV324S: 410 μA TyP

Rail-to-Rail Output Swing

ESD Protection Exceeds JESD 22

 2000-V Human-Body Model

 1000-V Charged-Device Model

Applications
Desktop PCs

HVAC: Heating, Ventilating, and Air Conditioning

Motor Control: AC induction

Netbooks
Portable Media Players

Power: Telecom DC/DC Module: Digital

Pro Audio Mixers
Refrigerators

Washing Machines: High-End and Low-End

Description
The LMV321,LMV358,LMV324,and LMV324Sdevices are single,dual,and quad low-voltage(2.7 V to 5.5 )operational amplifiers with rail-to-rail output swing.These devices are the most cost-effective solutions for applications where low-voltage

operation,space saving,and low cost are needed.These amplifiers are designed specifically for lowvoltage (2.7 V to 5 V)operation, with performance specifications meeting or exceeding the LM358 andLM324 devices that operate from 5 V to 30 V with package sizes down to one-half the size of the DBV(S0T-23)package,these devices can be use dfor a variety of applications.

INFORMATION

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
