IPA60R125P6 600V/125A MOSFET 60mΩ RDS(on) TO-247 Package Fast Switching High Efficiency Automotive Grade Robust Thermal Performance - Ideal for Motor Drives & Inverters

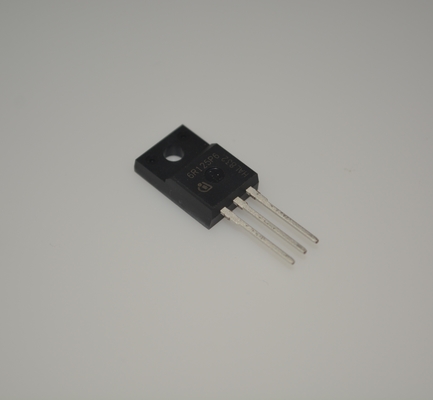

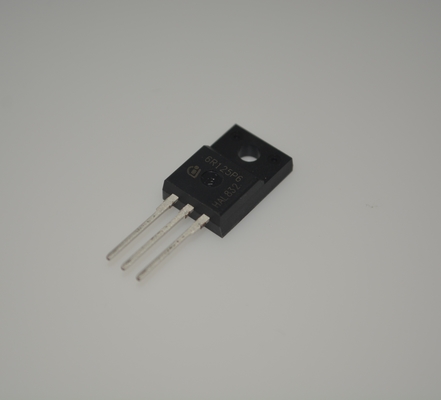

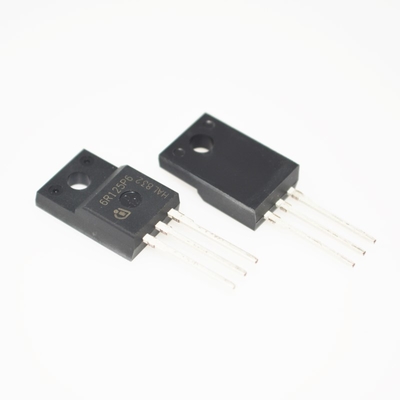

Large Image : IPA60R125P6 600V/125A MOSFET 60mΩ RDS(on) TO-247 Package Fast Switching High Efficiency Automotive Grade Robust Thermal Performance - Ideal for Motor Drives & Inverters

Product Details:

Place of Origin:	China
Brand Name:	Infineon
Certification:	CE, GCF, ROHS
Model Number:	IPA60R125P6XKSA1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time:	3-5 working days after received the payment
Payment Terms:	T/T, Western Union,
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Function:	Step-Up, Step-Down	Output Configuration:	Positive Or Negative
Topology:	Buck, Boost	Output Type:	Adjustable
Number Of Outputs:	1
Highlight:	600V/125A MOSFET IPA60R125P6 , Automotive Grade MOSFET IPA60R125P6 , IPA60R125P6

IPA60R125P6 600V/125A MOSFET 60mΩ RDS(on) TO-247 Package Fast Switching High Efficiency Automotive Grade Robust Thermal Performance - Ideal for Motor Drives & Inverters

Features

•IncreasedMOSFETdv/dtruggedness

•ExtremelylowlossesduetoverylowFOMRdson*QgandEoss

•Veryhighcommutationruggedness

•Easytouse/drive

•Pb-freeplating,Halogenfreemoldcompound

•Qualifiedfor industrialgradeapplicationsaccordingtoJEDEC(J-STD20 andJESD22)

Applications

PFCstages,hardswitchingPWMstagesandresonantswitchingstages fore.g.PCSilverbox,Adapter,LCD&PDPTV,Lighting,Server,Telecom andUPS.

Description

CoolMOS™isarevolutionarytechnologyforhighvoltagepower MOSFETs,designedaccordingtothesuperjunction(SJ)principleand pioneeredbyInfineonTechnologies.CoolMOS™P6seriescombinesthe experienceoftheleadingSJMOSFETsupplierwithhighclassinnovation. TheoffereddevicesprovideallbenefitsofafastswitchingSJMOSFET whilenotsacrificingeaseofuse.Extremelylowswitchingandconduction lossesmakeswitchingapplicationsevenmoreefficient,morecompact, lighterandcooler.

INFORMATION

Category	Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Mfr	Infineon Technologies
Series	CoolMOS™ P6
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	125mOhm @ 11.6A, 10V
Vgs(th) (Max) @ Id	4.5V @ 960µA
Gate Charge (Qg) (Max) @ Vgs	56 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2660 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	34W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Qualification	-
Mounting Type	Through Hole
Supplier Device Package	PG-TO220-FP
Package / Case	TO-220-3 Full Pack
Base Product Number	IPA60R

Drawing

Our advantage :

High quality products --- our offers are 100% new and original, ROHS
Competitive price --- good Purchase channels with good price.
Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
Adequate inventory --- With the support of our strong Purchasing team,
Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
