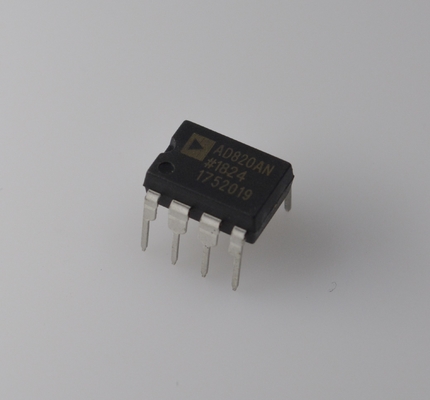

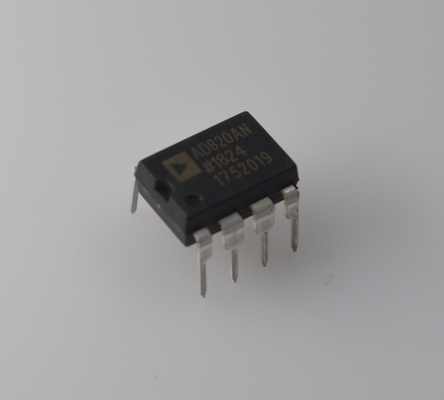

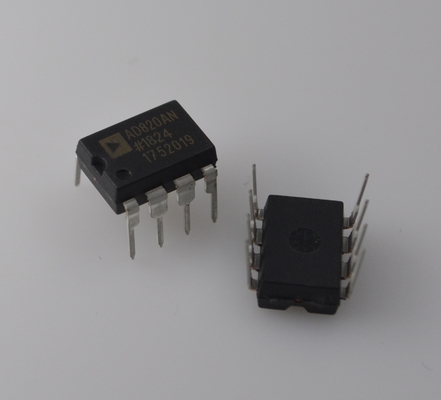

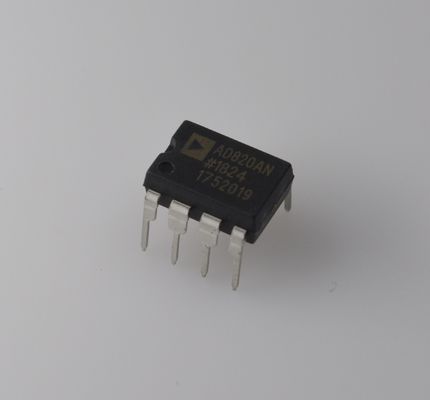

AD820ANZ Precision 5MHz Op Amp Single/Dual Supply (±18V) Low Power 1.3mA Rail-to-Rail Output Wide Temp Range -40°C~+125°C for Industrial and Automotive

AD820ANZ Precision 5MHz Op Amp Single/Dual Supply (andplusmn;18V) Low Power 1.3mA Rail-to-Rail Output Wide Temp Range -40anddeg;C~+125anddeg;C for Industrial andamp; Automotive

andnbsp;

FEATURES

True single-supply operation

andnbsp; Output swings rail-to-rail

andnbsp; Input voltage range extends below ground

andnbsp; Single-supply capability from 5 V to 30 V

andnbsp; Dual-supply capability from andplusmn;2.5 V to andplusmn;15 V

Excellent load drive

andnbsp; Capacitive load drive up to 350 pF

andnbsp; Minimum output current of 15 mA

Excellent ac performance for low power

andnbsp; 800 andmu;A maximum quiescent current

andnbsp; Unity-gain bandwidth: 1.8 MHz

andnbsp; Slew rate of 3 V/andmu;s

Excellent dc performance

andnbsp; 800 andmu;V maximum input offset voltage

andnbsp; 2 andmu;V/anddeg;C typical offset voltage drift

andnbsp; 25 pA maximum input bias current

Low noise: 13 nV/andradic;Hz @ 10 kHz

andnbsp;

APPLICATIONS

Battery-powered precision instrumentation

Photodiode preamps

Active filters

12-bit to 14-bit data acquisition systems

Medical instrumentation

Low power references and regulators

andnbsp;

DESCRIPTION

The AD820 is a precision, low power FET input op amp that can operate from a single supply of 5 V to 36 V, or dual supplies of andplusmn;2.5 V to andplusmn;18 V. It has true single-supply capability, with an input voltage range extending below the negative rail, allowing the AD820 to accommodate input signals below ground in the single-supply mode. Output voltage swing extends to within 10 mV of each rail, providing the maximum output dynamic range. Offset voltage of 800 andmu;V maximum, offset voltage drift of 2 andmu;V/anddeg;C, typical input bias currents below 25 pA, and low input voltage noise provide dc precision with source impedances up to 1 GandOmega;. 1.8 MHz unity gain bandwidth, andminus;93 dB THD at 10 kHz, and 3 V/andmu;s slew rate are provided for a low supply current of 800 andmu;A. The AD820 drives up to 350 pF of direct capacitive load and provides a minimum output current of 15 mA. This allows the amplifier to handle a wide range of load conditions. This combination of ac and dc performance, plus the outstanding load drive capability, results in an exceptionally versatile amplifier for the single-supply user.

The AD820 is available in two performance grades. The A and B grades are rated over the industrial temperature range of andminus;40anddeg;C to +85anddeg;C. The AD820 is offered in three 8-lead package options: plastic DIP (PDIP), surface mount (SOIC) and (MSOP).

andnbsp;

INFORMATION

andnbsp;

Drawing
