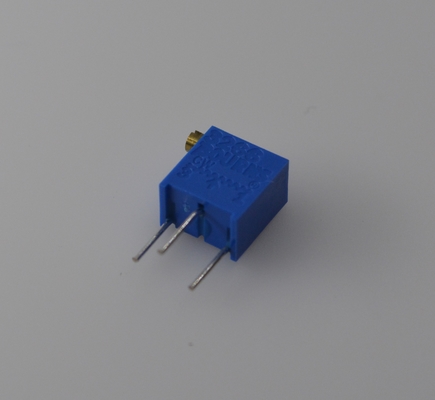

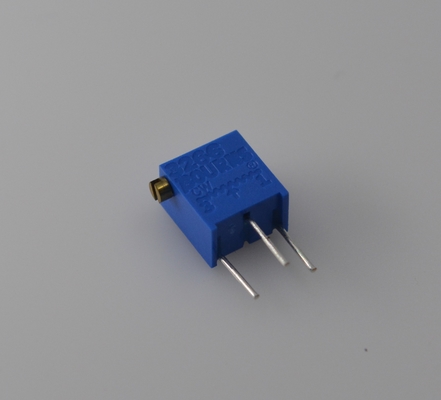

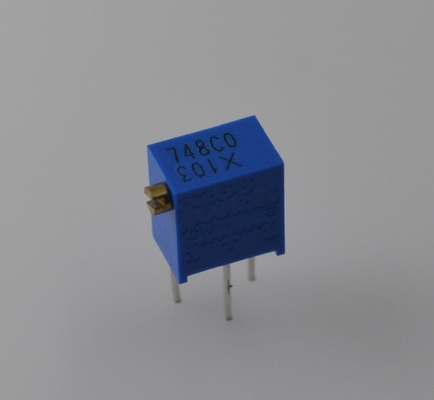

3266X-1-103LF 10KΩ Trimpot 1/4W Power 300V Rating ±10% Tolerance Cermet Construction PC Mount Reliable Adjustment for Precision Circuits

3266X-1-103LF 10KΩ Trimpot 1/4W Power 300V Rating ±10% Tolerance Cermet Construction PC Mount Reliable Adjustment for Precision Circuits

Features

■ Multiturn / Cermet / Industrial / Sealed

■ Standoffs allow thorough PC board washing

■ Tape and reel packaging available

■ RoHS compliant* version available

DESCRIPTION

Electrical Characteristics

Standard Resistance Range .........................10 ohms to 1 megohm (see standard resistance table)

Resistance Tolerance .............±10 % std.

Absolute Minimum Resistance .............................1 % or 2 ohms max. (whichever is greater)

Contact Resistance Variation ..........................3.0 % or 3 ohms max. (whichever is greater)

Adjustability Voltage Divider ........................±0.02 %

Rheostat ..................................±0.05 %

Resolution.....................................Infinite Insulation

Resistance ...............500 VDC 1,000 megohms min.

Dielectric Strength Sea Level ...............................600 VAC 80,000

Feet ............................250 VAC Effective Travel ..................12 turns nom.

Environmental Characteristics

Power Rating (300 volts max.) 70 °C .....................................0.25 watt

125 °C ........................................0 watt

Temperature Range ....-55 °C to +125 °C

Temperature Coefficient ....±100 PPM/°C

Seal Test ........................................85 °C

Humidity.........MIL-STD-202 Method 103

96 hours (2 % ΔTR, 10 Megohms IR)

Vibration .......30 G (1 % ΔTR; 1 % ΔVR)

Shock..........100 G (1 % ΔTR; 1 % ΔVR)

Load Life ....1,000 hours 0.25 watt 70 °C (3 % ΔTR; 3 % CRV)

Rotational Life.........................200 cycles (4 % ΔTR; 3 % or 3 ohms, whichever is greater, CRV)

Physical Characteristics

Torque..............................3.0 oz-in.

max. Mechanical Stops ..................Wiper idles

Terminals ........................Solderable pins

Weight ......................................0.015 oz.

Marking ..........Manufacturer’s trademark, resistance code, wiring diagram, date code, manufacturer’s model number and style

Wiper ................50 % (Actual TR) ±10 %

Flammability ...........................U.L. 94V-0

Standard Packaging ......50 pcs. per tube

Adjustment Tool ...............................H-90

Applications

Industrial Electronics
PLC control board parameter calibration

Sensor signal conditioning circuits
Industrial instrument zero-point adjustment

Consumer Electronics
Audio equipment tone/volume fine-tuning

Home appliance control board parameter adjustment

LED lighting brightness control

Communication Equipment
Base station RF circuit matching

Network device signal level adjustment

Test & Measurement
Laboratory test equipment calibration

Oscilloscope probe compensation adjustment

Automotive Electronics
In-vehicle entertainment system tuning

Body control module parameter setting

INFORMATION

Drawing
