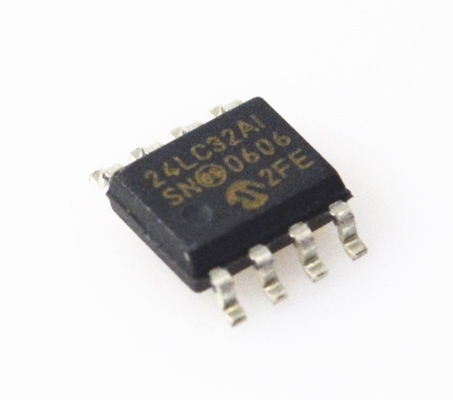

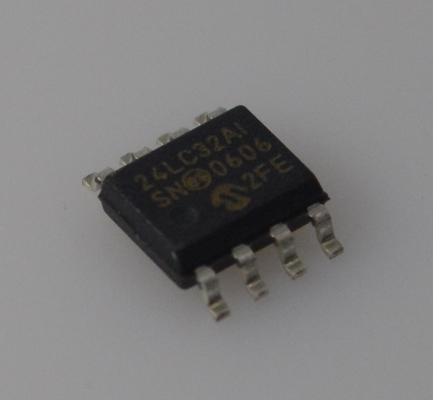

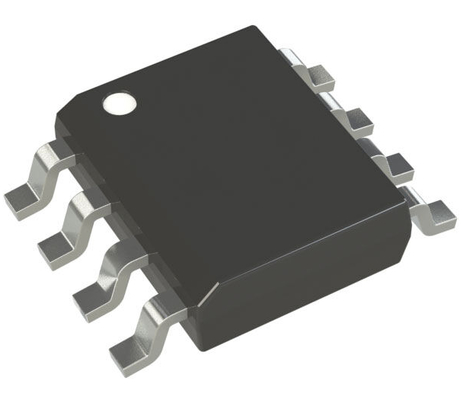

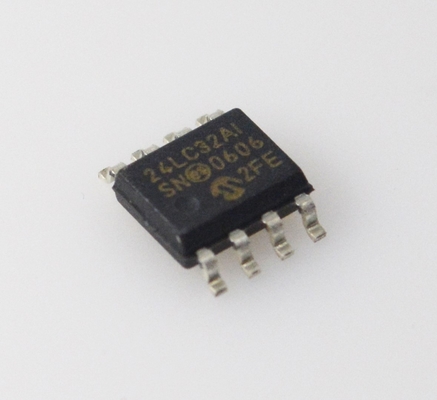

24LC32A-I/SN 32K I2C EEPROM 400kHz Speed 1M Write Cycles 2.5-5.5V Range 64-Byte Page Industrial Grade Low Power RoHS Compliant Compact SOIC-8 Package

24LC32A-I/SN 32K I2C EEPROM 400kHz Speed 1M Write Cycles 2.5-5.5V Range 64-Byte Page Industrial Grade Low Power RoHS Compliant Compact SOIC-8 Package

andnbsp;

Features

andbull; Single Supply with Operation down to 1.7V for 24AA32A Devices, 2.5V for 24LC32A Devices

andbull; Low-Power CMOS Technology:- Active current 1mA, typical- Standby current 1andmicro;A, typical

andbull; Two-Wire Serial Interface, I2C Compatible

andbull; Schmitt Trigger Inputs for Noise Suppression

andbull; Output Slope Control to Eliminate Ground Bounce

andbull; 100kHz and 400kHz Clock Compatibility

andbull; Page Write Time: 5ms, Maximum

andbull; Self-Timed Erase/Write Cycle

andbull; 32-Byte Page Write Buffer

andbull; Hardware Write-Protect

andbull; ESD Protection andgt; 4,000V

andbull; More than 1 Million Erase/Write Cycles

andbull; Data Retention andgt; 200Years

andbull; Factory Programming Available

andbull; RoHS Compliant

andbull; Temperature Ranges:- Industrial (I): -40anddeg;C to +85anddeg;C- Extended (E): -40anddeg;C to +125anddeg;C

andbull; Automotive AEC-Q100 Qualified

andnbsp;

Packages

andbull; 8-Lead DFN, 8-Lead MSOP, 8-Lead PDIP, 8-LeadSOIC, 8-LeadSOIJ, 5-Lead SOT-23, 8-Lead TDFN, 8-Lead TSSOP and 8-LeadX-Rotated TSSOP

andnbsp;

Description

The Microchip Technology Inc. 24XX32A(1) is a 32-Kbit Electrically Erasable PROM (EEPROM). The device is organized as a single block of 4Kx8-bit memory with a two-wire serial interface. Its low-voltage design permits operation down to 1.7V, with standby and active currents of only 1andmicro;A and 1mA, respectively. The 24XX32A also has a page write capability for up to 32bytes of data. Functional address lines allow up to eight devices on the same bus for up to 256Kbits address space.

andnbsp;

Applications

Data Storage andamp; Configuration
andnbsp; Microcontroller (McU) External Memory: Stores system parameters, calibration data, and
andnbsp; user settings (e.g. Arduino, STM32).
andnbsp; loT Devices: Saves Wi-Fi configurations, sensor data, and device lDs.
Consumer Electronics: Retains user preferences in TVs, set-top boxes, and printers.
andnbsp; Industrial andamp; Automotive Electronics
andnbsp; Industrial Control Systems: Logs operational data and fault codes (industrial-grade -40and#39;C to+85anddeg;C support).
andnbsp; Automotive Electronics: Stores mileage and diagnostic info (wide 2.5V-5.5V voltage range).

Smart Hardware andamp; Sensors
andnbsp; Wearable Devices: Tracks user activity data (low power extends battery life)

andnbsp; Sensor Modules: Buffers data to prevent loss during power outages (1 million write cycles).

Networking andamp; Communication Devices

andnbsp; Routers/Switches: Saves MAC addresses and firmware backups (l2C simplifies circuit design).
Other General Uses
andnbsp; Replaces On-Chip Flash: Expands limited MCU storage (compact SOlC-8 package savesspace).
