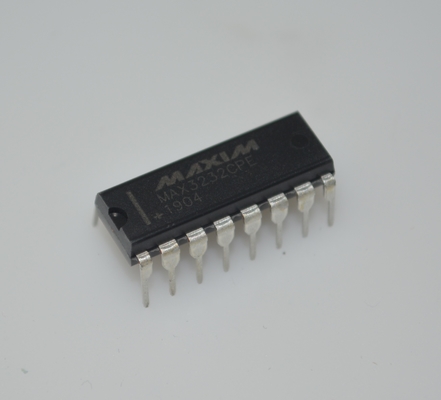

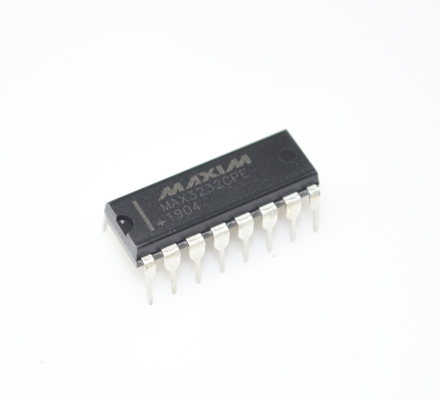

MAX3232CPE RS-232 Transceiver ±15kV ESD Protection 3.0-5.5V Wide Voltage 1μA Low Power 250kbps Data Rate 2 Drivers/2 Receivers DIP-16 Package for Industrial Comms

MAX3232CPE RS-232 Transceiver andplusmn;15kV ESD Protection 3.0-5.5V Wide Voltage 1andmu;A Low Power 250kbps Data Rate 2 Drivers/2 Receivers DIP-16 Package for Industrial Comms

andnbsp;

Benefits and Features

● Integrated Features Saves Board Space and Simplifies Design

andnbsp; andbull; Charge Pump Circuitry Eliminates the Need for a Bipolar andplusmn;12V Supply

andnbsp; andbull; Wide Single-Supply Operation From +3V to +5.5V Supply

andnbsp; andbull; Always-On Extra Outputs Enable Monitoring of External Devices

● Power Saving Extends Battery Life

andnbsp; andbull; 1andmicro;A Supply Current in Shutdown Mode While Receiver is Active (MAX3222, MAX3237, MAX3241)

andnbsp;

Applications

● Battery-Powered Equipment

● Hand-Held Equipment

● Peripherals

● Datacom Equipment

andnbsp;

General Description

The MAX3222/MAX3232/MAX3237/MAX3241 transceivers have a proprietary low-dropout transmitter output stage enabling true RS-232 performance from a 3.0V to 5.5V supply with a dual charge pump. The devices require only four small 0.1andmicro;F external charge-pump capacitors. The MAX3222, MAX3232, and MAX3241 are guaranteed to run at data rates of 120kbps while maintaining RS-232 output levels. The MAX3237 is guaranteed to run at data rates of 250kbps in normal operating mode and 1Mbps in the MegaBaudandtrade; operating mode.

The MAX3222/MAX3232 have 2 receivers and 2 drivers. The MAX3222 and MAX3232 are pin, package, and func tionally compatible with the industry-standard MAX242 and MAX232, respectively.

The MAX3241 has 5 receivers and 3 drivers, while the MAX3237 has 3 receivers and 5 drivers. Receivers R1 (MAX3237/MAX3241) and R2 (MAX3241) have extra outputs in addition to their standard outputs. These extra outputs are always active, allowing external devices to be monitored without forward biasing the protection diodes in circuitry that may have VCC completely removed.

The MAX3222, MAX3232, and MAX3241 are available in space-saving TSSOP and SSOP packages with operating temperatures of either -40anddeg;C to +85anddeg;C or 0anddeg;C to 70anddeg;C.

andnbsp;

INFORMATION

andnbsp;

Drawing

andnbsp;

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active andamp; passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer andamp; Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal andamp; Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
