IS181GB Smart Switch 1.8V Low Voltage 6A High Current Ultra-Low 28mΩ RDS(on) Fast 15ns Switching ESD Protection DFN2x2 Package for Portable/IoT Devices

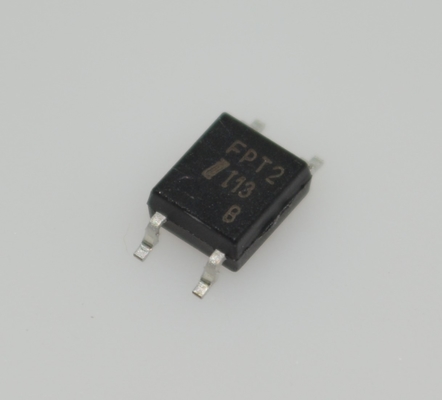

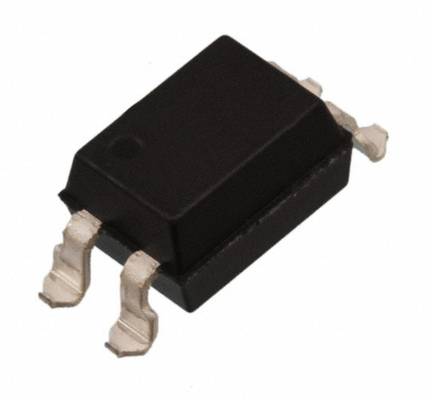

Large Image : IS181GB Smart Switch 1.8V Low Voltage 6A High Current Ultra-Low 28mΩ RDS(on) Fast 15ns Switching ESD Protection DFN2x2 Package for Portable/IoT Devices

Product Details:

Place of Origin:	China
Brand Name:	ISOCOM
Certification:	CE, GCF, ROHS
Model Number:	IS181GB

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time:	3-5 working days after received the payment
Payment Terms:	T/T, Western Union,
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Function:	Step-Up, Step-Down	Output Configuration:	Positive Or Negative
Topology:	Buck, Boost	Output Type:	Adjustable
Number Of Outputs:	1
Highlight:	6A High Current Smart Switch , IS181GB Smart Switch , 1.8V Smart Switch

IS181GB Smart Switch 1.8V Low Voltage 6A High Current Ultra-Low 28mandOmega; RDS(on) Fast 15ns Switching ESD Protection DFN2x2 Package for Portable/IoT Devices

andnbsp;

FEATURES

andbull; Low Profile Package

andbull; AC Isolation Voltage 3750VRMS

andbull; CTR Selections Available

andbull; Wide Operating Temperature Range -55anddeg;C to +110anddeg;C

andbull; Lead Free and RoHS Compliant

andbull; UL File E91231 model andldquo;FPT1andrdquo; and andldquo;FPT2andrdquo;

andnbsp;

APPLICATIONS

andbull; Computer Terminals

andbull; Industrial System Controllers

andbull; Measuring Instruments

andbull; Signal Transmission between Systems of Different Potentials and Impedance

andnbsp;

DESCRIPTION

The IS181 series of optocoupler consists of an infrared light emitting diode optically coupled to an NPN silicon photo transistor in a space efficient Mini Flat Package.

andnbsp;

INFORMATION

Category	Isolators Optocouplers, Optoisolators Transistor, Photovoltaic Output Optoisolators	andnbsp;
Manufacturer	Isocom Components 2004 LTD	andnbsp;
Series	-	andnbsp;
Packaging	Tape andamp; Reel (TR) Cut Tape (CT) Digi-Reelandreg;	andnbsp; andnbsp; andnbsp;
Part Status	Active	andnbsp;
Number of Channels	1	andnbsp;
Voltage - Isolation	3750Vrms	andnbsp;
Current Transfer Ratio (Min)	100% @ 5mA	andnbsp;
Current Transfer Ratio (Max)	600% @ 5mA	andnbsp;
Turn On / Turn Off Time (Typ)	-	andnbsp;
Rise / Fall Time (Typ)	4andmicro;s, 3andmicro;s	andnbsp;
Input Type	DC	andnbsp;
Output Type	Transistor	andnbsp;
Voltage - Output (Max)	80V	andnbsp;
Current - Output / Channel	50mA	andnbsp;
Voltage - Forward (Vf) (Typ)	1.2V	andnbsp;
Current - DC Forward (If) (Max)	50 mA	andnbsp;
Vce Saturation (Max)	200mV	andnbsp;
Operating Temperature	-55anddeg;C ~ 100anddeg;C	andnbsp;
Mounting Type	Surface Mount	andnbsp;
Package / Case	4-SMD, Gull Wing	andnbsp;
Supplier Device Package	-	andnbsp;
Base Product Number	IS181

andnbsp;

Drawing
