CSD18563Q5A 60V MOSFET 1.7mΩ RDS(on) 300A Current Fast Switching AEC-Q101 Qualified Superior Thermal Performance D2PAK-7 Package for Automotive & Power

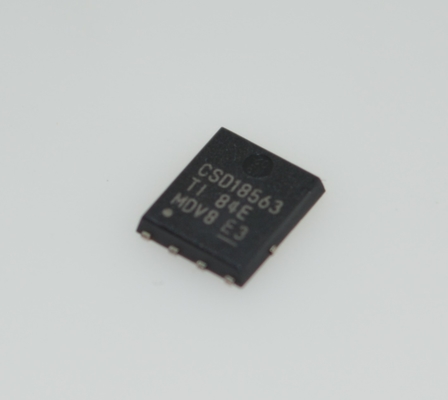

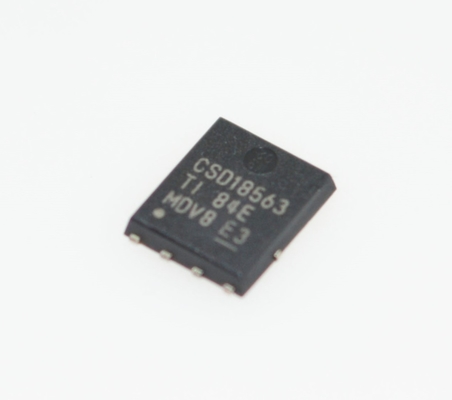

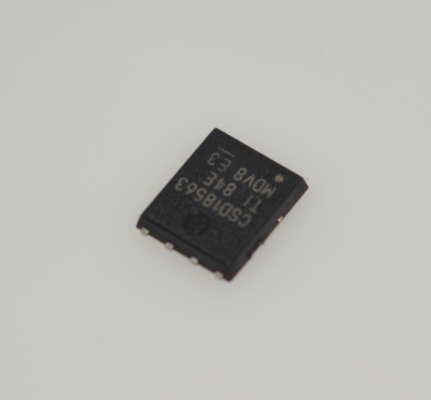

Large Image : CSD18563Q5A 60V MOSFET 1.7mΩ RDS(on) 300A Current Fast Switching AEC-Q101 Qualified Superior Thermal Performance D2PAK-7 Package for Automotive & Power

Product Details:

Place of Origin:	China
Brand Name:	TI
Certification:	CE,ROHS
Model Number:	CSD18563Q5A

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs

Contact Now

Detailed Product Description

Frequency Stability:	±50ppm	Frequency Tolerance:	±30ppm
Operating Temperature:	-40°C ~ 85°C	Load Capacitance:	18pF
Package / Case:	HC-49/US	Name:	Passive Electronic Components
Highlight:	D2PAK-7 CSD18563Q5A MOSFET , 300A CSD18563Q5A MOSFET , AEC-Q101 Qualified CSD18563Q5A MOSFET

CSD18563Q5A 60V MOSFET 1.7mΩ RDS(on) 300A Current Fast Switching AEC-Q101 Qualified Superior Thermal Performance D2PAK-7 Package for Automotive & Power

Features

• Ultra-Low Qg and Qgd

• Soft Body Diode for Reduced Ringing

• LowThermal Resistance

• Avalanche Rated

• Logic Level

• Pb-Free Terminal Plating

• RoHSCompliant

• Halogen Free

• SON5mm×6mmPlastic Package

Applications

Low-Side FET for Industrial Buck Converter

Secondary Side Synchronous Rectifier

Motor Control

Description

This 5.7 mΩ, 60 V SON 5 mm × 6 mm NexFET™ power MOSFET was designed to pair with the CSD18537NQ5A control FET and act as the sync FET for a complete industrial buck converter chipset solution.

INFORMATION

Category	Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Mfr	Texas Instruments
Series	NexFET™
Packaging	Tape & Reel (TR) Cut Tape (CT) Digi-Reel®
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	100A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.8mOhm @ 18A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	20 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1500 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	3.2W (Ta), 116W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Qualification	-
Mounting Type	Surface Mount
Supplier Device Package	8-VSONP (5x6)
Package / Case	8-PowerTDFN
Base Product Number	CSD18563
