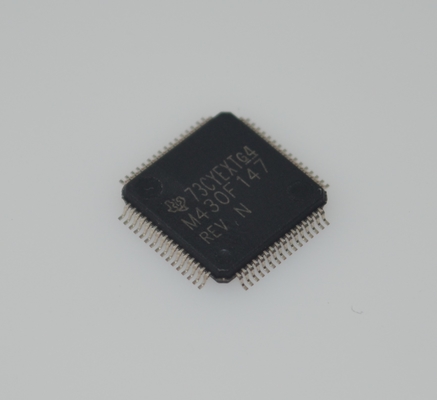

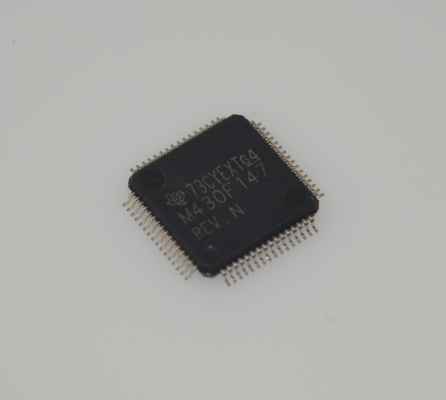

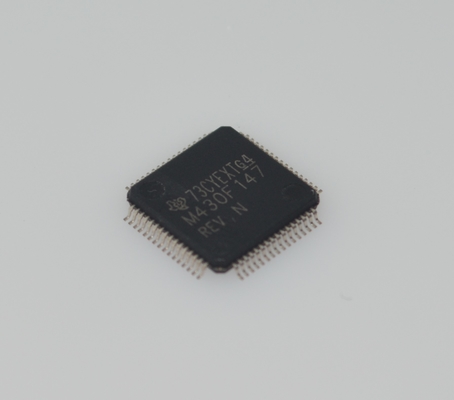

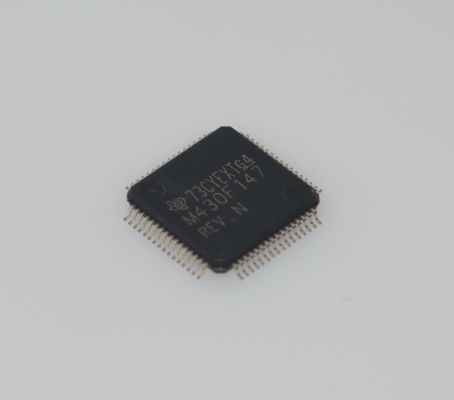

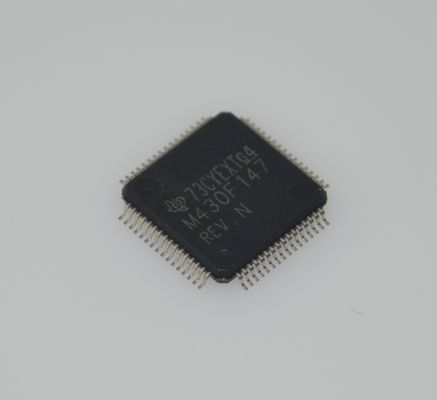

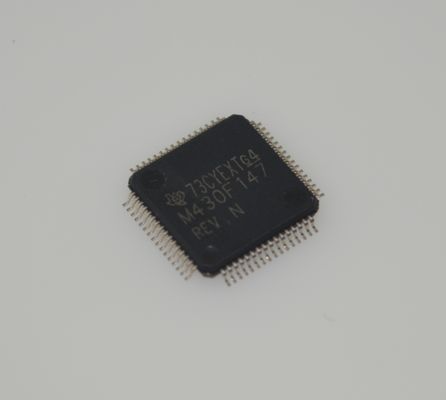

MSP430F147IPMR 16MHz Ultra-Low-Power MCU with 32KB Flash 1KB RAM 12-bit ADC 16-bit Timers UART/SPI/I2C 1.8-3.6V Operation and 64-Pin LQFP Package

MSP430F147IPMR 16MHz Ultra-Low-Power MCU with 32KB Flash 1KB RAM 12-bit ADC 16-bit Timers UART/SPI/I2C 1.8-3.6V Operation andamp; 64-Pin LQFP Package

andnbsp;

Featuresandnbsp;

andbull; LowSupply Voltage Range, 1.8 V to 3.6 V

andbull; Ultra-Low Power Consumption:

andnbsp; andndash; Active Mode: 280 andmicro;A at 1 MHz, 2.2 V

andnbsp; andndash; Standby Mode: 1.6 andmicro;A

andnbsp; andndash; Off Mode (RAM Retention): 0.1 andmicro;A

andbull; Five Power-Saving Modes

andbull; Wakeup From Standby Mode in Less Than 6 andmicro;s

andbull; 16-Bit RISC Architecture, 125-ns Instruction Cycle Time

andbull; 12-Bit Analog-to-Digital Converter (ADC) With Internal Reference, Sample-and-Hold, and Autoscan Feature

andbull; 16-Bit Timer_B With Seven Capture/Compare With-Shadow Registers

andbull; 16-Bit Timer_A With Three Capture/Compare Registers

andbull; On-Chip Comparator

andbull; Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse

andbull; Serial Communication Interface (USART), Functions as Asynchronous UART or Synchronous SPI Interface

andnbsp; andndash; TwoUSARTs (USART0, USART1) On MSP430F14x and MSP430F14x1 Devices

andnbsp; andndash; OneUSART(USART0) On MSP430F13x Devices

andbull; Family Members (Also See Device Comparison)

andnbsp;andndash; MSP430F133

andnbsp; andnbsp;andndash; 8KB+256 Bytes of Flash Memory, 256 Bytes of RAM

andnbsp;andndash; MSP430F135

andnbsp; andnbsp;andndash; 16KB +256 Bytes of Flash Memory, 512 Bytes of RAM

andnbsp;andndash; MSP430F147, MSP430F1471

andnbsp; andnbsp;andndash; 32KB +256 Bytes of Flash Memory, 1KB of RAM

andnbsp;andndash; MSP430F148, MSP430F1481

andnbsp; andnbsp;andndash; 48KB +256 Bytes of Flash Memory, 2KB of RAM

andnbsp;andndash; MSP430F149, MSP430F1491

andnbsp; andnbsp;andndash; 60KB +256 Bytes of Flash Memory, 2KB of RAM

andnbsp;

Applications

andbull; Sensor Systems

andbull; Industrial Controls

andbull; Hand-Held Meters

andnbsp;

Description

The Texas Instruments MSP430andtrade; family of ultra-low-power microcontrollers (MCUs) consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 andmicro;s.

The MSP430F13x, MSP430F14x, and MSP430F14x1 MCUs support two built-in 16-bit timers, a fast 12-bit ADC on the MSP430F13x and the MSP430F14x devices, one USART on the MSP430F13x devices or two USARTs on the MSP430F14x and MSP430F14x1 devices, and 48 I/O pins. The hardware multiplier enhances the performance and offers a broad code and hardware-compatible family solution.

For complete module descriptions, see the MSP430x1xx Family Userandrsquo;s Guide

andnbsp;

INFORMATION

andnbsp;

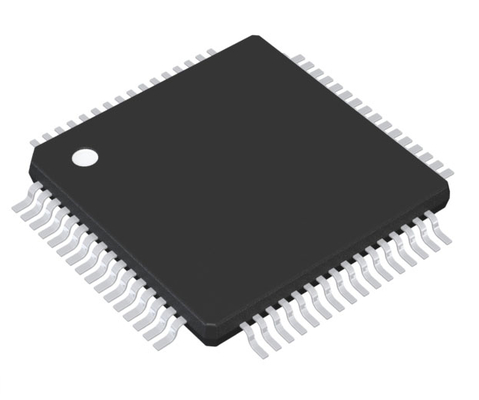

Drawing
