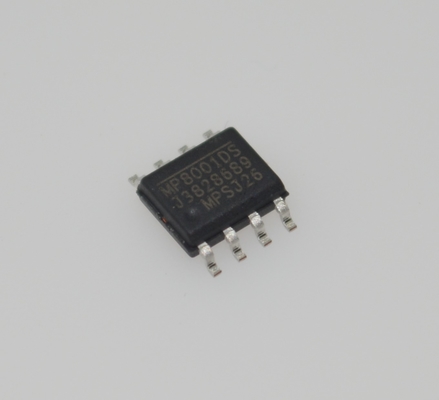

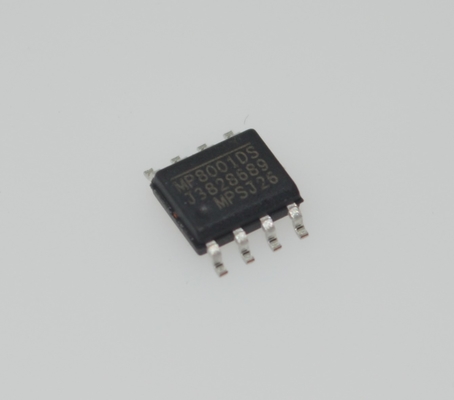

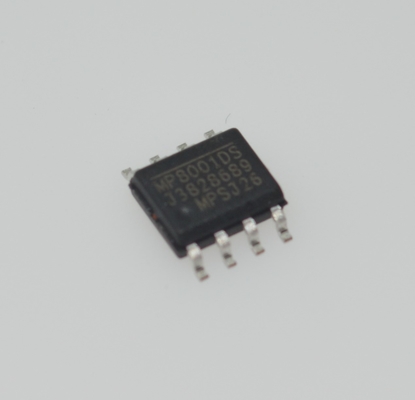

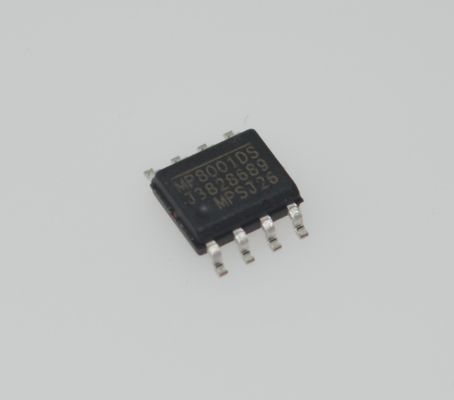

MP8001DS-LF-Z 36V 3A Synchronous Step-Down Converter with 4.5-36V Wide Input 92% Efficiency, 500kHz Switching Adjustable Output Overcurrent & Overtemp Protection Compact TSOT23 Package

MP8001DS-LF-Z 36V 3A Synchronous Step-Down Converter with 4.5-36V Wide Input 92% Efficiency, 500kHz Switching Adjustable Output Overcurrent & Overtemp Protection Compact TSOT23 Package

FEATURES

 Meets IEEE 802. 3 af Specifications

 100V, 1Ω Integrate DMOS Device

 420mA Current Limit for MP8001 810mA Current Limit for MP8001A

 Open Drain Power Good Output

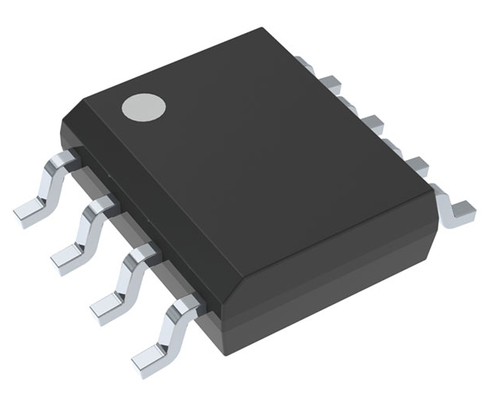

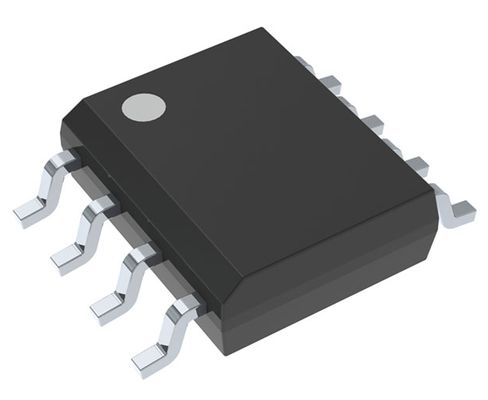

 SOIC-8 Package

APPLICATIONS

 VoIP Telephones

 Network Cards

 Security Camera Systems

 Safety Backup Power

 Remote Internet Power

DESCRIPTION

The MP8001/MP8001A are IEEE 802. 3 af POE compliant Powered Device (PD) controllers. they include detection and classification modes as well as a 100V output pass device having a temperature compensated current limit over the specified temperature range. Thermal protection is built in to accommodate both transient and/or overload conditions, shutting the part down and protecting the input source as well as the output load depending on the particular fault conditions. Inrush current limiting is included to slowly charge the input capacitor without interruption due to die heating, a problem encountered without the current limit foldback feature.

INFORMATION

Drawing
