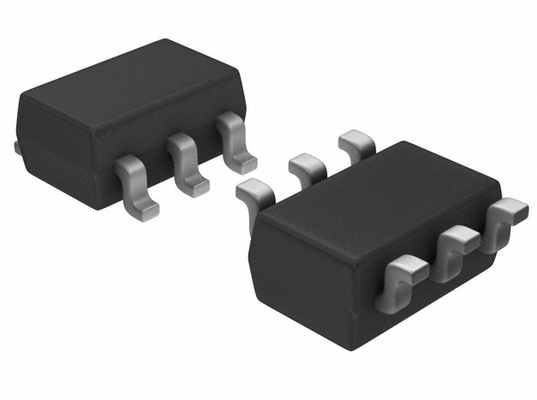

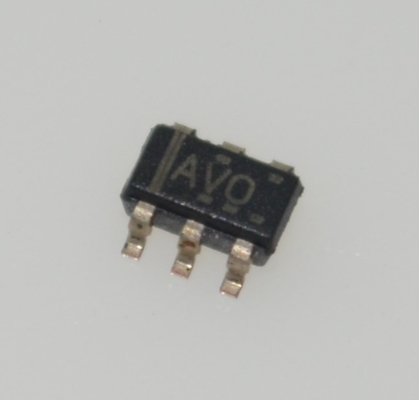

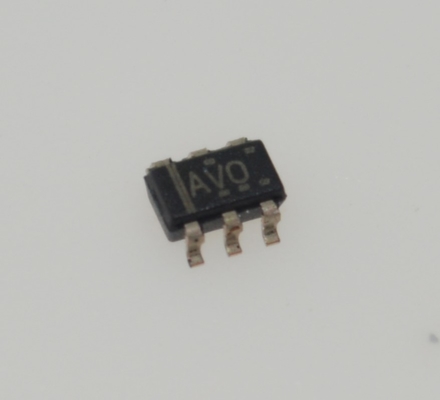

TPS3808G33DBVR 3.3V Voltage Supervisor 1.6V Threshold 200ms Delay SOT-23-5 1.1-6.5V Input -40°C to +125°C

TPS3808G33DBVR 3.3V Voltage Supervisor 1.6V Threshold 200ms Delay SOT-23-5 1.1-6.5V Input -40anddeg;C to +125anddeg;C

andnbsp;

Features

andbull; Power-on reset generator with adjustable delay time: 1.25 ms to 10 s

andbull; Very low quiescent current: 2.4 andmu;A typical

andbull; High threshold accuracy: 0.5% typical

andbull; Fixed threshold voltages for standard voltage rails from 0.9 V to 5 V and adjustable voltage down to 0.4 V are available

andbull; Manual reset ( MR) input

andbull; Open-drain RESET output

andbull; Temperature range: andndash;40anddeg;C to 125anddeg;C

andbull; Small SOT-23 and 2-mm andtimes; 2-mm WSON packages

andnbsp;

Applications

andbull; DSP or microcontroller applications

andbull; Notebook and desktop computers

andbull; PDAs and hand-held products

andbull; Portable and battery-powered products

andbull; FPGA and ASIC applications

andnbsp;

Description

The TPS3808 family of microprocessor supervisory circuits monitors system voltages from 0.4 V to 5 V, asserting an open-drain RESET signal when the SENSE voltage drops below a preset threshold or when the manual reset ( MR) pin drops to a logic low. The RESET output remains low for the user-adjustable delay time after the SENSE voltage and manual reset ( MR) return above the respective thresholds.

The TPS3808 device uses a precision reference to achieve 0.5% threshold accuracy for VIT andle; 3.3 V. The reset delay time can be set to 20 ms by disconnecting the CT pin, 300 ms by connecting the CT pin to VDD using a resistor, or can be user-adjusted between 1.25 ms and 10 s by connecting the CT pin to an external capacitor. The TPS3808 device has a very low typical quiescent current of 2.4 andmu;A, so it is well suited to battery-powered applications. It is available in the SOT-23 and 2-mm andtimes; 2-mm WSON packages, and is fully specified over a temperature range of 40anddeg;C to 125anddeg;C (TJ).

andnbsp;

INFORMATION

andnbsp;

Drawing
