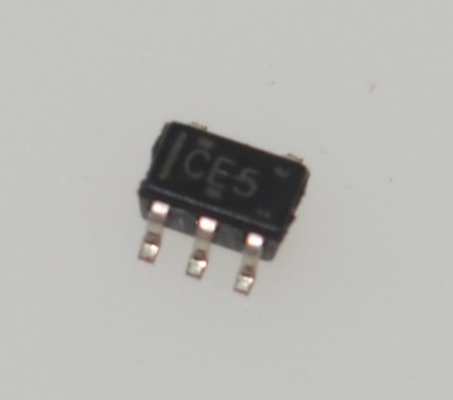

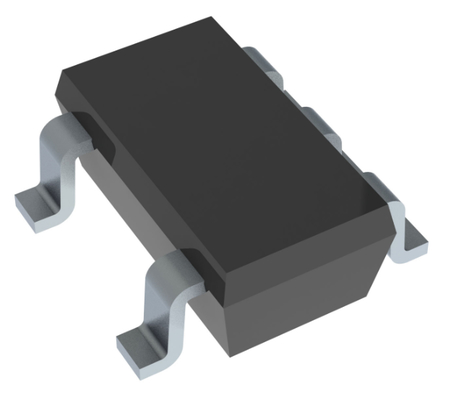

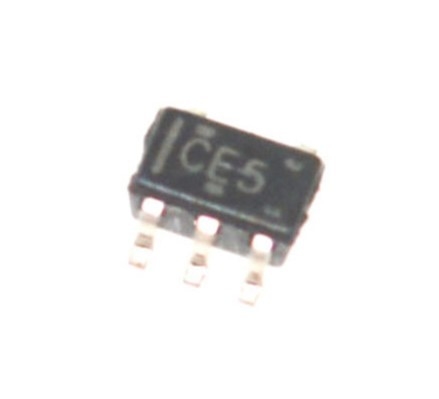

SN74LVC1G08DBVR Single 2-Input AND Gate 1.65-5.5V Supply 10ns Propagation Delay SOT-23-5 -40°C to +125°C

SN74LVC1G08DBVR Single 2-Input AND Gate 1.65-5.5V Supply 10ns Propagation Delay SOT-23-5 -40anddeg;C to +125anddeg;C

andnbsp;

Features andnbsp;

andbull; Available in the Ultra Small 0.64-mm2 Package (DPW) With 0.5-mm Pitch

andbull; Supports 5-V VCC Operation

andbull; Inputs Accept Voltages to 5.5 V

andbull; Provides Down Translation to VCC

andbull; Maxtpd of 3.6 ns at 3.3 V

andbull; LowPower Consumption, 10-andmu;A Max ICC

andbull; andplusmn;24-mA Output Drive at 3.3 V

andbull; Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back Drive Protection

andbull; Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

andbull; ESDProtection Exceeds JESD 22

andnbsp;andndash; 2000-V Human-Body Model (A114-A)

andnbsp;andndash; 200-V Machine Model (A115-A)

andnbsp;andndash; 1000-V Charged-Device Model (C101)

andnbsp;

Applications

andbull; ATCASolutions

andbull; Active Noise Cancellation (ANC)

andbull; Barcode Scanner

andbull; Blood Pressure Monitor

andbull; CPAPMachine

andbull; Cable Solutions

andbull; DLP3DMachine Vision, Hyperspectral Imaging, Optical Networking, and Spectroscopy

andbull; E-Book

andbull; Embedded PC

andbull; Field Transmitter: Temperature or Pressure Sensor

andbull; Fingerprint Biometrics

andbull; HVAC:Heating, Ventilating, and Air Conditioning

andbull; Network-Attached Storage (NAS)

andbull; Server Motherboard and PSU

andbull; Software Defined Radio (SDR)

andbull; TV:High-Definition (HDTV), LCD, and Digital

andbull; Video Communications System

andbull; Wireless Data Access Card, Headset, Keyboard, Mouse, and LAN Card

andbull; X-ray: Baggage Scanner, Medical, and Dental

andnbsp;

Description

This single 2-input positive-AND gate is designed for 1.65-V to 5.5-V VCC operation.

The SN74LVC1G08 device performs the Boolean function or inpositivelogic.

The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range.

The SN74LVC1G08 is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8 mm andtimes; 0.8 mm.
