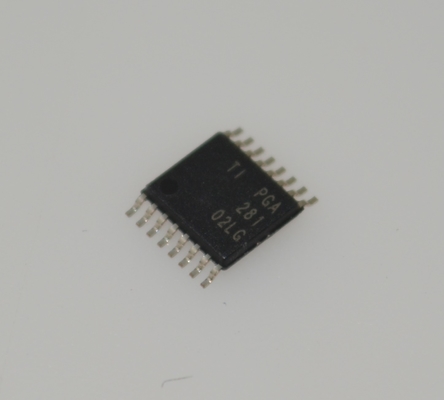

PGA281AIPWR Precision Programmable Gain Amplifier 0.1-1000x Gain 10MHz BW ±18V Supply 0.025% Gain Error TSSOP-16 -40°C to +125°C

PGA281AIPWR Precision Programmable Gain Amplifier 0.1-1000x Gain 10MHz BW andplusmn;18V Supply 0.025% Gain Error TSSOP-16 -40anddeg;C to +125anddeg;C

andnbsp;

FEATURES

andbull; Wide Input Range: andplusmn;15.5 V at andplusmn;18 V Supply 234

andbull; Binary Gain Steps: 128 V/V to ⅛ V/V

andbull; Additional Scaling Factor: 1 V/V and 1⅜ V/V

andbull; LowOffset Voltage: 5 andmu;V at G = 128

andbull; Near-Zero Long-Term Drift of Offset Voltage

andbull; Near-Zero Gain Drift: 0.5 ppm/anddeg;C

andbull; Excellent Linearity: 1.5 ppm

andbull; Excellent CMRR: 140 dB

andbull; High Input Impedance

andbull; Very Low 1/f Noise

andbull; Differential Signal Output

andbull; Overload Detection

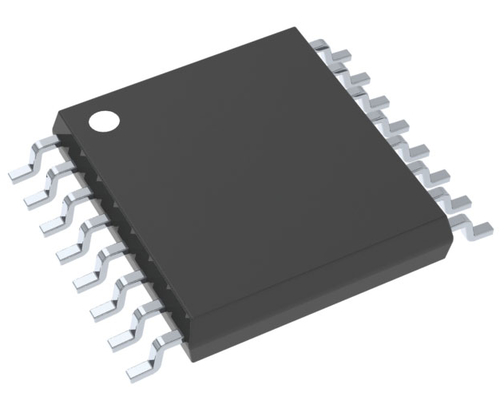

andbull; TSSOP-16 Package

andnbsp;

APPLICATIONS

andbull; High-Precision Signal Instrumentation

andbull; Multiplexed Data Acquisition

andbull; Medical Instrumentation

andbull; Test and Measurement Equipment

andbull; Differential or Single-Ended ADC Drivers

andbull; Strain Gauge Amplifiers

andbull; Industrial Process Control

andnbsp;

DESCRIPTION

The PGA281 is a high-precision instrumentation amplifier with a digitally-controllable gain and signal integrity test capability. This device uses proprietary autozeroing techniques to offer low offset voltage, near-zero offset and gain drift, excellent linearity, and nearly no 1/f noise.

The PGA281 is optimized to provide an excellent common-mode rejection of greater than 110 dB (G = 1) over a wide frequency range. Superior common mode and supply rejection supports high-resolution, precise measurement. The 36-V supply capability and wide, high-impedance input range comply with requirements for universal signal measurement.

The PGA281 offers multiple internal gain options from ⅛ V/V (attenuation) to 176 V/V, making this a universal, high-performance, analog front-end suitable for a wide variety of applications. The fully differential, rail-to-rail output is designed to easilyandnbsp;interface a wide range of input signals to the low voltage domain of high-resolution analog-to-digital converters (ADCs).

The PGA281 is available in a TSSOP-16 package and is specified over a temperature range ofandndash;40anddeg;C to +105anddeg;C.
