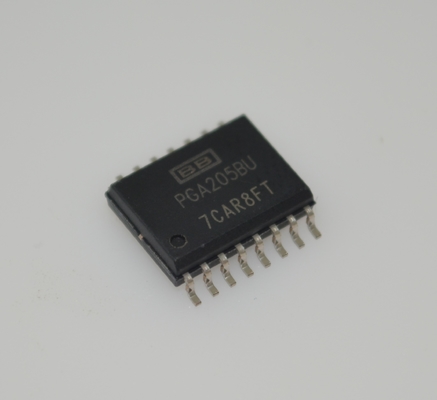

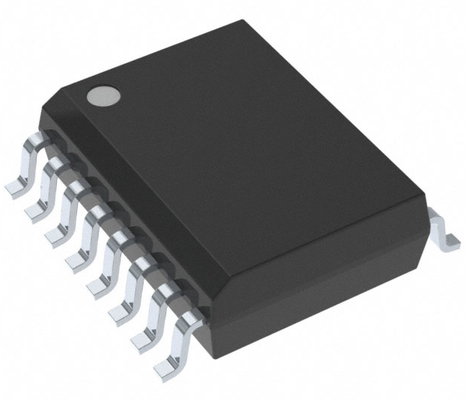

PGA205BU Programmable Gain Amplifier 1-1000x Gain Range 1MHz Bandwidth ±18V Supply 0.01% Gain Error DIP-16 -40°C to +85°C

PGA205BU Programmable Gain Amplifier 1-1000x Gain Range 1MHz Bandwidth andplusmn;18V Supply 0.01% Gain Error DIP-16 -40anddeg;C to +85anddeg;C

andnbsp;

FEATURES

DIGITALLY PROGRAMMABLE GAIN:

andnbsp; PGA204: G=1, 10, 100, 1000V/V

andnbsp; PGA205: G=1, 2, 4, 8V/V

LOW OFFSET VOLTAGE: 50andmicro;V max

LOW OFFSET VOLTAGE DRIFT: 0.25andmicro;V/anddeg;C

LOW INPUT BIAS CURRENT: 2nA max

LOW QUIESCENT CURRENT: 5.2mA typ

NO LOGIC SUPPLY REQUIRED

16-PIN PLASTIC DIP, SOL-16 PACKAGES

andnbsp;

APPLICATIONS

DATA ACQUISITION SYSTEM

GENERAL PURPOSE ANALOG BOARDS

MEDICAL INSTRUMENTATION

andnbsp;

DESCRIPTION

The PGA204 and PGA205 are low cost, general pur pose programmable-gain instrumentation amplifiers offering excellent accuracy. Gains are digitally se lected: PGA204andmdash;1, 10, 100, 1000, and PGA205andmdash;1, 2, 4, 8V/V. The precision and versatility, and low cost of the PGA204 and PGA205 make them ideal for a wide range of applications.

Gain is selected by two TTL or CMOS-compatible address lines, A0 and A1. Internal input protection can withstand up to andplusmn;40V on the analog inputs without damage.

The PGA204 and PGA205 are laser trimmed for very low offset voltage (50andmicro;V), drift (0.25andmicro;V/anddeg;C) and high common-mode rejection (115dB at G=1000). They op erate with power supplies as low as andplusmn;4.5V, allowing use in battery operated systems. Quiescent current is 5mA. The PGA204 and PGA205 are available in 16-pin plastic DIP, and SOL-16 surface-mount packages, speci fied for the andndash;40anddeg;C to +85anddeg;C temperature range.

andnbsp;

INFORMATION

andnbsp;

Drawing
