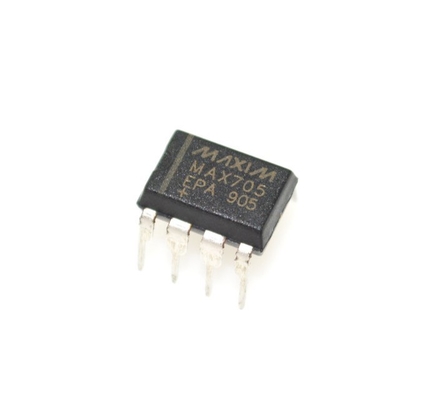

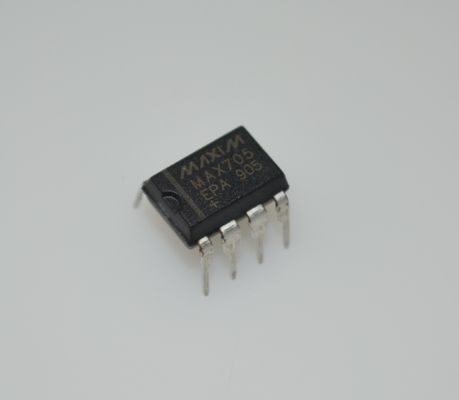

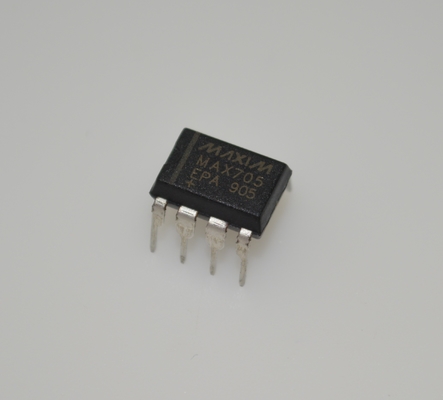

MAX705EPA Microprocessor Supervisor 4.65V Threshold 200ms Reset Pulse 5V Supply DIP-8 -40°C to +85°C

China TOP Electronic Industry Co., Ltd. certification
China TOP Electronic Industry Co., Ltd. certification
Excellent product , good quality , competitive price , professional service , with 10 years cooperation , now we become good friends each other.

—— Ronald-from Boilvia

It is very glad to find TOP as our partner in China , here we can get the best Product and serice , they always put the customer at the first place.

—— Carlos-from Argentina

I am very satisfied with all your service. It is really a good team! with your one-stop solution offer , help us to save much time and money

—— Giancarlo-from Italy

I'm Online Chat Now

MAX705EPA Microprocessor Supervisor 4.65V Threshold 200ms Reset Pulse 5V Supply DIP-8 -40°C to +85°C

MAX705EPA Microprocessor Supervisor 4.65V Threshold 200ms Reset Pulse 5V Supply DIP-8 -40°C to +85°C
MAX705EPA Microprocessor Supervisor 4.65V Threshold 200ms Reset Pulse 5V Supply DIP-8 -40°C to +85°C MAX705EPA Microprocessor Supervisor 4.65V Threshold 200ms Reset Pulse 5V Supply DIP-8 -40°C to +85°C MAX705EPA Microprocessor Supervisor 4.65V Threshold 200ms Reset Pulse 5V Supply DIP-8 -40°C to +85°C

Large Image :  MAX705EPA Microprocessor Supervisor 4.65V Threshold 200ms Reset Pulse 5V Supply DIP-8 -40°C to +85°C

Product Details:
Place of Origin: China
Brand Name: Maxim Integrated
Certification: CE, GCF, ROHS
Model Number: MAX705EPA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time: 3-5 working days after received the payment
Payment Terms: T/T, Western Union,
Supply Ability: 1000pcs per month
Detailed Product Description
Function: Step-Up, Step-Down Output Configuration: Positive Or Negative
Topology: Buck, Boost Output Type: Adjustable
Number Of Outputs: 1

MAX705EPA Microprocessor Supervisor 4.65V Threshold 200ms Reset Pulse 5V Supply DIP-8 -40°C to +85°C



Benefits and Features

● Supervisory-Function Integration Significantly Improves System Reliability While Reducing Board Space

  • μMAX Package

  • Guaranteed RESET Valid at VCC = 1V

    - 200ms Reset Pulse Width

    - Debounced TTL/CMOS-Compatible Manual Reset Input

    - Active-High Reset Output (MAX707/MAX708/ MAX813L)

  • Precision-Supply Voltage Monitor

    - 4.65V (MAX705/MAX707/MAX813L)

    - 4.40V (MAX706/MAX708)

  • Voltage Monitor for Power

    -Fail or Low-Battery Warning



Applications

● Computers

● Controllers

● Intelligent Instruments

● Critical μP Power Monitoring



General Description

The MAX705–MAX708/MAX813L microprocessor (µP) supervisory circuits reduce the complexity and number of components required to monitor power-supply and battery functions in µP systems. These devices significantly improve system reliability and accuracy compared to separate ICs or discrete components.

The MAX705/MAX706/MAX813L provide four functions:

1) A reset output during power-up, power-down, and brownout conditions.

2) An independent watchdog output that goes low if the watchdog input has not been toggled within 1.6 seconds.

3) A 1.25V threshold detector for power-fail warning, low battery detection, or for monitoring a power supply other than +5V.

4) An active-low manual-reset input.

The MAX707/MAX708 are the same as the MAX705/ MAX706, except an active-high reset is substituted for the watchdog timer. The MAX813L is the same as the MAX705, except RESET is provided instead of RESET.

Two supply-voltage monitor levels are available: The MAX705/MAX707/MAX813L generate a reset pulse when the supply voltage drops below 4.65V, while the MAX706/ MAX708 generate a reset pulse below 4.40V. All four parts are available in 8-pin DIP, SO, and µMAX® packages.



INFORMATION

Category
Manufacturer
Analog Devices Inc./Maxim Integrated
Series
-
Packaging
Tube
Part Status
Obsolete
DigiKey Programmable
Not Verified
Type
Simple Reset/Power-On Reset
Number of Voltages Monitored
1
Voltage - Threshold
4.65V
Output
Push-Pull, Totem Pole
Reset
Active Low
Reset Timeout
140ms Minimum
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Through Hole
Package / Case
8-DIP (0.300", 7.62mm)
Supplier Device Package
8-PDIP
Base Product Number



Drawing

MAX705EPA Microprocessor Supervisor 4.65V Threshold 200ms Reset Pulse 5V Supply DIP-8 -40°C to +85°C 0
