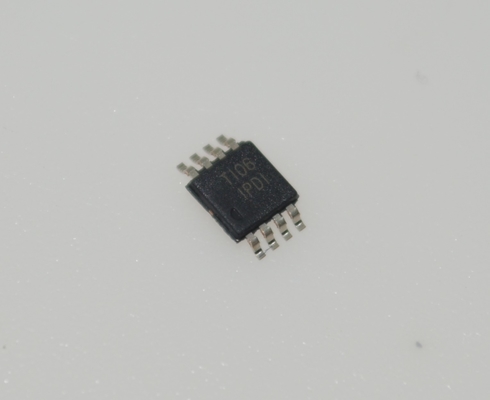

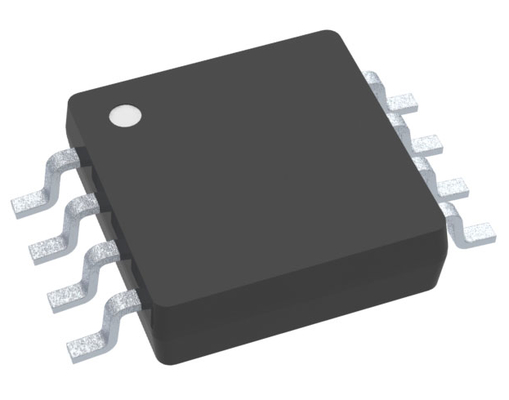

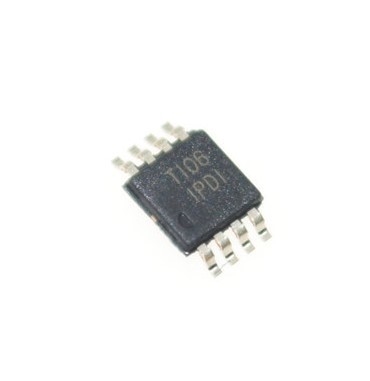

INA826AIDGKR Precision Instrumentation Amplifier with Low Noise Rail-to-Rail Output Wide Supply Range Low Power High CMRR & Small MSOP-8 Package

Excellent product , good quality , competitive price , professional service , with 10 years cooperation , now we become good friends each other.

—— Ronald-from Boilvia

It is very glad to find TOP as our partner in China , here we can get the best Product and serice , they always put the customer at the first place.

—— Carlos-from Argentina

I am very satisfied with all your service. It is really a good team! with your one-stop solution offer , help us to save much time and money

—— Giancarlo-from Italy

I'm Online Chat Now

INA826AIDGKR Precision Instrumentation Amplifier with Low Noise Rail-to-Rail Output Wide Supply Range Low Power High CMRR & Small MSOP-8 Package

INA826AIDGKR Precision Instrumentation Amplifier with Low Noise Rail-to-Rail Output Wide Supply Range Low Power High CMRR & Small MSOP-8 Package
INA826AIDGKR Precision Instrumentation Amplifier with Low Noise Rail-to-Rail Output Wide Supply Range Low Power High CMRR & Small MSOP-8 Package INA826AIDGKR Precision Instrumentation Amplifier with Low Noise Rail-to-Rail Output Wide Supply Range Low Power High CMRR & Small MSOP-8 Package INA826AIDGKR Precision Instrumentation Amplifier with Low Noise Rail-to-Rail Output Wide Supply Range Low Power High CMRR & Small MSOP-8 Package

Large Image :  INA826AIDGKR Precision Instrumentation Amplifier with Low Noise Rail-to-Rail Output Wide Supply Range Low Power High CMRR & Small MSOP-8 Package

Product Details:
Place of Origin: China
Brand Name: Texas Instruments
Certification: CE, GCF, ROHS
Model Number: INA826AIDGKR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time: 3-5 working days after received the payment
Payment Terms: T/T, Western Union,
Supply Ability: 1000pcs per month
Detailed Product Description
Function: Step-Up, Step-Down Output Configuration: Positive Or Negative
Topology: Buck, Boost Output Type: Adjustable
Number Of Outputs: 1

INA826AIDGKR Precision Instrumentation Amplifier with Low Noise Rail-to-Rail Output Wide Supply Range Low Power High CMRR & Small MSOP-8 Package



Features

• Input common-mode range: Includes V

• Common-mode rejection:– 104dB, min (G = 10)– 100dB, min at 5 kHz (G = 10)

• Power-supply rejection: 100 dB, min (G = 1)

• Lowoffset voltage: 150 µV, max

• Gain drift: 1 ppm/°C (G = 1), 35 ppm/°C (G > 1)

• Noise: 18 nV/√Hz, G ≥ 100

• Bandwidth: 1 MHz (G = 1), 60 kHz (G = 100)

• Inputs protected up to ±40 V

• Rail-to-rail output

• Supply current: 200 µA

• Supply range:– Single supply: 3 V to 36 V– Dual supply: ±1.5 V to ±18 V

• Specified temperature range:–40°C to +125°C

• Packages: 8-pin VSSOP, SOIC, and WSON



Applications

• Analog input module

• Flow transmitter

• Battery test

• LCDtest

• Electrocardiogram (ECG)

• Surgical equipment

• Process analytics (pH, gas, concentration, force and humidity)

• Circuit breaker (ACB, MCCB, VCB)



Description

The INA826 is a cost-effective instrumentation amplifier that offers extremely low power consumption and operates over a very wide single-supply or dual supply range. A single external resistor sets any gain from 1 to 1000. The device offers excellent stability over temperature, even at G > 1, as a result of the low gain drift of only 35 ppm/°C (maximum).

The INA826 is optimized to provide excellent common-mode rejection ratio of over 100 dB (G = 10) over frequencies up to 5 kHz. At G = 1, the common mode rejection ratio exceeds 84 dB across the full input common-mode range, from the negative supply all the way up to 1 V of the positive supply. Using a rail-to-rail output, the INA826 is a great choice for low-voltage operation from a 3-V single supply, as well as dual supplies up to ±18 V.

Additional circuitry protects the inputs against overvoltage of up to ±40 V beyond the power supplies by limiting the input currents to less than 8 mA.

The INA826 is available in 8-pin SOIC, VSSOP, and tiny 3-mm × 3-mm WSON surface-mount packages. All versions are specified for the–40°C to +125°C temperature range.



INFORMATION

Category
Mfr
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Part Status
Active
Amplifier Type
Number of Circuits
1
Output Type
Rail-to-Rail
Slew Rate
1V/µs
-3db Bandwidth
1 MHz
Current - Input Bias
35 nA
Voltage - Input Offset
40 µV
Current - Supply
200µA
Current - Output / Channel
16 mA
Voltage - Supply Span (Min)
2.7 V
Voltage - Supply Span (Max)
36 V
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package
8-VSSOP
Base Product Number



Drawing

INA826AIDGKR Precision Instrumentation Amplifier with Low Noise Rail-to-Rail Output Wide Supply Range Low Power High CMRR & Small MSOP-8 Package 0

Our advantage :

  • High quality products --- our offers are 100% new and original, ROHS
  • Competitive price --- good Purchase channels with good price.
  • Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
  • Adequate inventory --- With the support of our strong Purchasing team,
  • Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.



be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
