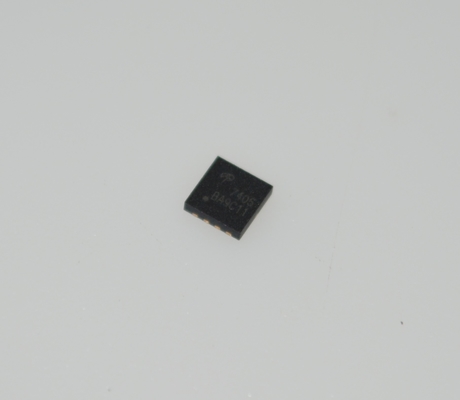

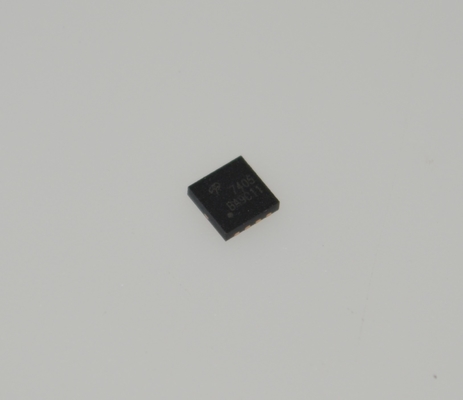

AON7405 30V N-Channel MOSFET 9.5mΩ Rds(on) 60A Continuous DFN5x6-8L -55°C to +175°C AEC-Q101 Qualified
FEATURES
High-Efficiency Power Switching
30V Drain-Source Voltage: ldeal for 12V/24V systems (e.g., automotive/industrial power)
60A Continuous Current (100A pulsed): Drives high-power loads (motors, LED arrays, etc.)
Ultra-Low Conduction Loss
Rds(on)= 9.5m2 (Vgs=10V): Significantly reduces power dissipation
Logic-Level Drive (Vgs(th)=1.8V): Directly compatible with 3.3V/5V MCUs
High-Frequency Switching Optimization
Low Gate Charge (Qg=42nC): Supports high-frequency PWM control (up to 1MHz)
Fast Switching: Rise/Fall time < 25ns
Reliability & Protection
100% Avalanche Tested: Ensures stability under voltage transients
AEC-Q101 Certified: Meets automotive reliability standards
APPLICATIONS
1.Power Management
DC-Dc Converters: Commonly used in synchronous rectification (Buck, Boost, etc.) to improvepower efficiency, especially in laptops, servers, and communication equipment power supplies
Point-of-Load (POL) Power Supplies: Provides efficient power delivery to core componentssuch as CPUs, GPUs, and FPGAs.
Switched-Mode Power supplies (SMPs): Adapters, LED driver circuits, etc.
2. Motor Drive
DC Motor Control: Used in H-bridge drive circuits for power tools, drones, and robotics
Stepper/Servo Drives: Precision motor control in industrial automation equipment.
3. Automotive Electronics
12V/24V Systems: Applications like automotive lighting, seat heating, and fan control (verifyif AON7405 is AEC-Q101 compliant).
Battery Management Systems (BMS): Charge/discharge control and protection circuits.
4. Consumer Electronics
Fast charging Circuits: Power switching in USB PD chargers and wireless charging.
High-Current Load Switches: Power distribution in TVs, gaming consoles, etc.
5.Industrial & Communications
Inverters/Variable-Frequency Drives: Solar microinverters and small industrial VFDs.
Telecom Power Supplies: High-efficiency power modules for base stations and routers.
INFORMATION
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
|
|
|
FET Type
|
|
|
|
Technology
|
|
|
|
Drain to Source Voltage (Vdss)
|
|
|
|
Current - Continuous Drain (Id) @ 25°C
|
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
|
|
|
Rds On (Max) @ Id, Vgs
|
|
|
|
Vgs(th) (Max) @ Id
|
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
|
|
|
Vgs (Max)
|
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
|
|
|
FET Feature
|
|
|
|
Power Dissipation (Max)
|
|
|
|
Operating Temperature
|
|
|
|
Grade
|
|
|
|
Qualification
|
|
|
|
Mounting Type
|
|
|
|
Supplier Device Package
|
|
|
|
Package / Case
|
|
|
|
Base Product Number
|
|
----------------------------------------------------------
