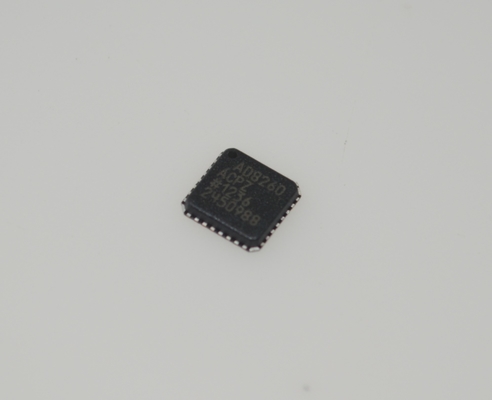

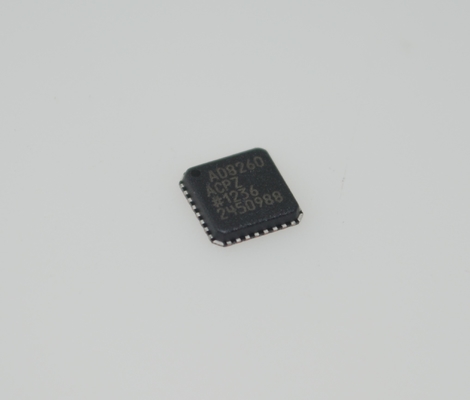

AD8260ACPZ-R7 Dual 250MHz Low Power Op Amp 1nV/√Hz Noise ±5V to ±15V Supply LFCSP-16 -40°C to +125°C Industrial Grade

AD8260ACPZ-R7 Dual 250MHz Low Power Op Amp 1nV/√Hz Noise ±5V to ±15V Supply LFCSP-16 -40°C to +125°C Industrial Grade

FEATURES

High current driver

  Differential input—direct drive from DAC

  Preset gain: 1.5×

  −3 dB bandwidth: 195 MHz

  Large output drive: >±300 mA

VGA/preamplifier

  Low noise

    Voltage noise: 2.4 nV/√Hz

    Current noise: 5 pA/√Hz

  −3 dB bandwidth: 230 MHz

  Gain range: 30 dB in 3 dB steps

    −6 dB to +24 dB (for preamplifier gain of 6 dB)

  Single-ended preamplifier input and differential VGA

    output

Supplies: 3.3 V to 10 V (with VMID enabled)

  ±3.3 V to ±5 V (with VMID disabled)

Power: 93 mW with 3.3 V supplies

  Power-down for VGA, driver amplifier, and system

APPLICATIONS

Digital AGC systems

Tx/Rx signal processing

Power line transceivers

GENERAL DESCRIPTION

The AD8260 includes a high current driver, usable as a transmitter, and a low noise digitally programmable variable gain amplifier (DGA), useable as a receiver.

The receiver section consists of a single-ended input preampli fier, and linear-in-dB, differential-output DGA. The receiver has a small signal –3 dB bandwidth of 230 MHz; the driver small signal bandwidth is 195 MHz. The driver delivers ±300 mA, well suited for driving low impedance loads, even when connected to a 3.3 V supply.

The AD8260 DGA is ideal for trim applications and has a gain span of 30 dB, in 3 dB steps. Excellent bandwidth uniformity is maintained across the entire frequency range. The low output referred noise of the DGA is advantageous in driving high speed ADCs. The differential output facilitates the interface to modern low voltage high speed ADCs.

Single-supply and dual-supply operation makes the part versatile and enables gain control of negative-going pulses, such as those generated by photodiodes or photo-multiplier tubes, as well as processing band-pass signals on a single supply. For maximum dynamic range, it is essential that the part be ac-coupled when operating on a single supply.

The AD8260 preamplifier (PrA) is configured with external resistors for gains greater than 6 dB and can be inverting or noninverting. The DGA is characterized with a noninverting preamplifier gain of 2×. The attenuator has a range of 30 dB and the output amplifier has a gain of 8× (18.06 dB). The lowest noninverting gain range is −6 dB to +24 dB and shifts up with increased preamplifier gain. The gain is controlled via a parallel port (Pin GNS0 to Pin GNS3) with 10 gain steps of 3 dB per code. The preamplifier and DGA are disabled for any code that is not assigned a gain step.

The AD8260 can operate with single or dual supplies from 3.3 V to ±5 V. An internal buffer normally provides a split supply reference for single-supply operation; an external reference can also be used when the VMID buffer is shut down.

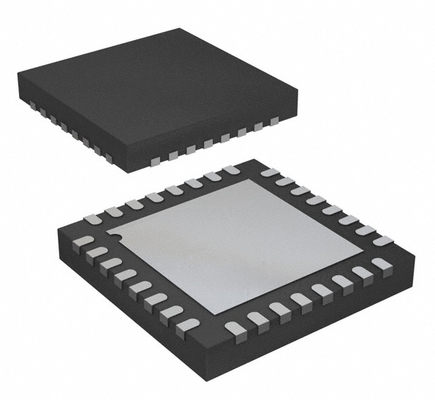

The operating temperature range is −40°C to +105°C. The AD8260 is available in a 5 mm × 5 mm, 32-lead LFCSP.
