EN5339QI 3A Synchronous Buck Converter 4.5-36V Input 95% Efficiency QFN-24 -40°C to +125°C AEC-Q100

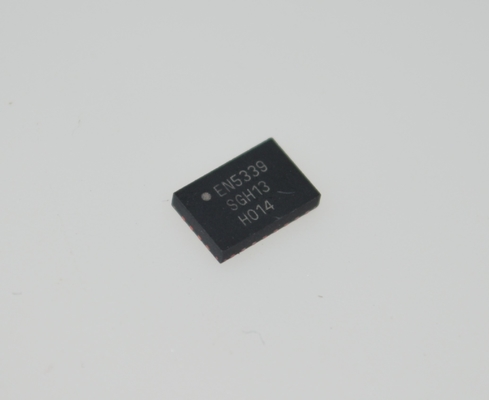

Large Image : EN5339QI 3A Synchronous Buck Converter 4.5-36V Input 95% Efficiency QFN-24 -40°C to +125°C AEC-Q100

Product Details:

Place of Origin:	China
Brand Name:	Intel
Certification:	CE,ROHS
Model Number:	EN5339QI

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs

Contact Now

Detailed Product Description

Frequency Stability:	±50ppm	Frequency Tolerance:	±30ppm
Operating Temperature:	-40°C ~ 85°C	Load Capacitance:	18pF
Package / Case:	HC-49/US	Name:	Passive Electronic Components
Highlight:	AEC-Q100 Buck Converter , 3A Buck Converter , EN5339QI

EN5339QI 3A Synchronous Buck Converter 4.5-36V Input 95% Efficiency QFN-24 -40anddeg;C to +125anddeg;C AEC-Q100

andnbsp;

FEATURES
andbull; Integrated Inductor

andbull; Solution Footprint as Small as 55 mm2

andbull; Low Profile, 1.1mm

andbull; High Reliability Solution: 280k Years MTBF

andbull; High Efficiency, up to 95%

andbull; Low Output Ripple Voltage; andlt;5mVP-P Typical

andbull; andplusmn;3% Output Variation Over Line, Load, Temp

andbull; 2.4 V to 5.5 V Input Voltage Range

andbull; 3A Continuous Output Current Capability

andbull; Output Enable and Power OK Signal

andbull; Under Voltage Lockout, Over Current, Short Circuit, and Thermal Protection

andbull; RoHS Compliant; Halogen Free; 260anddeg;C Reflow

andnbsp;

APPLICATIONS

andbull; Applications with Low Profile Requirement such as SSD and Embedded Computing

andbull; SAN/NAS Accelerator Appliance

andbull; Controllers, Raid, Processors, Network Processors, DSPsandrsquo; FPGAs

andbull; Noise Sensitive Applications

andnbsp;

DESCRIPTION

The EN5339QI is an Intelandreg; Enpirionandreg; Power System on a Chip (PowerSoC) DC-DC converter. It integrates the inductor, MOSFET switches, small-signal circuits and compensation in an advanced 4mm x 6mm x 1.1mm 24-pin QFN package.

The EN5339QI PowerSoC is designed specifically to meet the driving demand for higher power density by providing a fully integrated buck converter. It features high efficiency, excellent line and load regulation and guarantees the full 3A output current over temperature.

The EN5339QI operates at high switching frequency and allows for the use of tiny MLCC capacitors. It also enables a very wide control loop bandwidth providing excellent transient performance and reduced output impedance.

Intel Enpirion integrated inductor solution significantly helps to reduce noise. The complete power converter solution enhances productivity by offering greatly simplified board design, layout and manufacturing requirements.

All Enpirion products are RoHS compliant and lead free manufacturing environment compatible.

andnbsp;

INFORMATION

Category	Power Supplies - Board Mount DC DC Converters	andnbsp;
Mfr	Altera	andnbsp;
Series	Enpirionandreg; 5300	andnbsp;
Packaging	Tape andamp; Reel (TR) Cut Tape (CT)	andnbsp; andnbsp;
Part Status	Obsolete	andnbsp;
Type	Non-Isolated PoL Module	andnbsp;
Number of Outputs	1	andnbsp;
Voltage - Input (Min)	2.4V	andnbsp;
Voltage - Input (Max)	5.5V	andnbsp;
Voltage - Output 1	0.6 ~ 4.6V	andnbsp;
Voltage - Output 2	-	andnbsp;
Voltage - Output 3	-	andnbsp;
Current - Output (Max)	3A	andnbsp;
Applications	ITE (Commercial)	andnbsp;
Features	Remote On/Off, OCP, OTP, SCP, UVLO	andnbsp;
Operating Temperature	-40anddeg;C ~ 85anddeg;C	andnbsp;
Efficiency	95%	andnbsp;
Mounting Type	Surface Mount	andnbsp;
Package / Case	24-PowerTQFN Module	andnbsp;
Size / Dimension	0.24andquot; L x 0.16andquot; W x 0.04andquot; H (6.0mm x 4.0mm x 1.1mm)	andnbsp;
Supplier Device Package	24-QFN (6x4)	andnbsp;
Control Features	Enable, Active High	andnbsp;
Base Product Number	EN5339

andnbsp;

Drawing

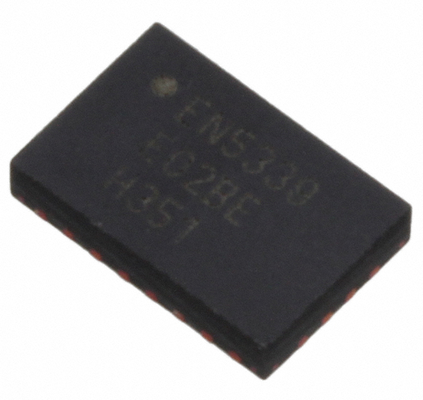

EN5339QI 3A Synchronous Buck Converter 4.5-36V Input 95% Efficiency QFN-24 -40°C to +125°C AEC-Q100 0

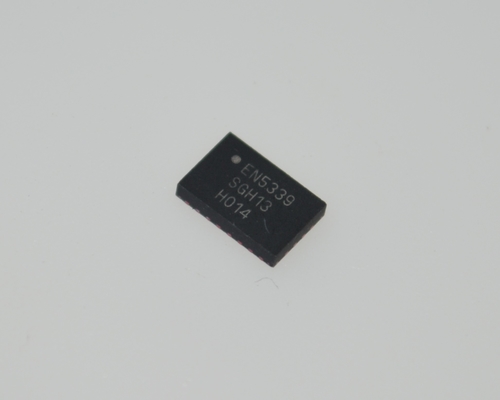

EN5339QI 3A Synchronous Buck Converter 4.5-36V Input 95% Efficiency QFN-24 -40°C to +125°C AEC-Q100 1
