EN5311QI 5A Synchronous Buck Converter 4.5-36V Input 95% Efficiency QFN-20 -40°C to +125°C AEC-Q100

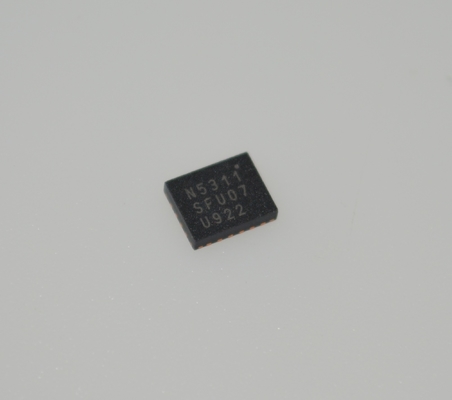

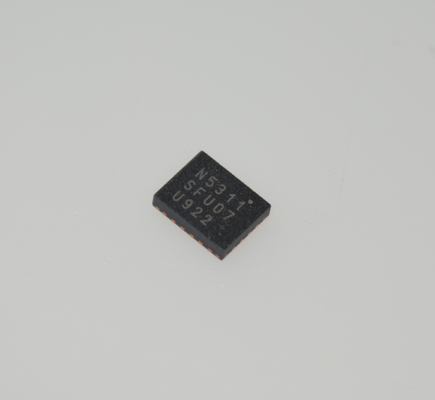

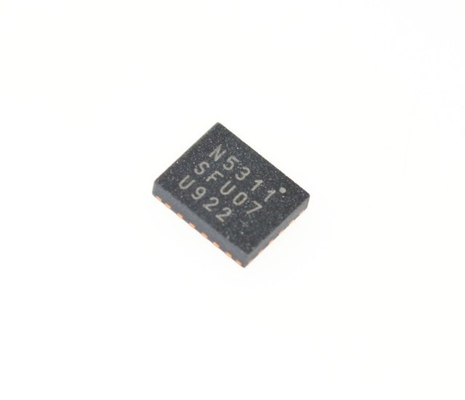

Large Image : EN5311QI 5A Synchronous Buck Converter 4.5-36V Input 95% Efficiency QFN-20 -40°C to +125°C AEC-Q100

Product Details:

Place of Origin:	China
Brand Name:	Intel
Certification:	CE,ROHS
Model Number:	EN5311QI

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs

Contact Now

Detailed Product Description

Frequency Stability:	±50ppm	Frequency Tolerance:	±30ppm
Operating Temperature:	-40°C ~ 85°C	Load Capacitance:	18pF
Package / Case:	HC-49/US	Name:	Passive Electronic Components
Highlight:	EN5311QI Synchronous Buck Converter , 5A Synchronous Buck Converter , QFN-20 Synchronous Buck Converter

EN5311QI 5A Synchronous Buck Converter 4.5-36V Input 95% Efficiency QFN-20 -40anddeg;C to +125anddeg;C AEC-Q100

andnbsp;

FEATURES
Revolutionary Integrated inductor

5mm x 4mm x1.1mm QFN package

Very small total solution foot print

andnbsp;

APPLICATIONS
Area constrained applications

Noise Sensitive Applications such as A/V and RF

LDO replacement for improved thermals

Set top box/home gateway

Smart phones, PDAs
VolP and Video phones

Personal Media Player

andnbsp;

DESCRIPTION
The Ultra-Low-Profile EN5311Ql is targeted toapplications where board area and profile are critical.EN5311Ql is a complete power conversion solutionrequiring only two low cost ceramic MLCC caps.Inductor,MOSFETS,PWM,and compensation areintegrated into a tiny 5mmx4mm x1.1mm QFNpackage. The EN5311Ql is engineered to simplifydesign and to minimize layout constraints. 4 MHzswitching frequencyand internal typelcompensation provides superior transient response.With a 1.1 mm profile, the EN5311Ql is ideal for spaceand height constrained applications.

A 3-pin VD output voltage selector provides sevenpre-programmed output voltages along with anoption for external resistor divider. Output voltagecan be programmed on-the-fly to provide fast,dynamic voltage scaling.

andnbsp;

INFORMATION

Category	Power Supplies - Board Mount DC DC Converters	andnbsp;
Mfr	Altera	andnbsp;
Series	Enpirionandreg; 5300	andnbsp;
Packaging	Tape andamp; Reel (TR) Cut Tape (CT)	andnbsp; andnbsp;
Part Status	Obsolete	andnbsp;
Type	Non-Isolated PoL Module	andnbsp;
Number of Outputs	1	andnbsp;
Voltage - Input (Min)	2.4V	andnbsp;
Voltage - Input (Max)	6.6V	andnbsp;
Voltage - Output 1	0.6 ~ 6V	andnbsp;
Voltage - Output 2	-	andnbsp;
Voltage - Output 3	-	andnbsp;
Current - Output (Max)	1A	andnbsp;
Applications	ITE (Commercial)	andnbsp;
Features	Remote On/Off, OCP, OTP, SCP, UVLO	andnbsp;
Operating Temperature	-40anddeg;C ~ 85anddeg;C	andnbsp;
Efficiency	94%	andnbsp;
Mounting Type	Surface Mount	andnbsp;
Package / Case	20-PowerTQFN Module	andnbsp;
Size / Dimension	0.20andquot; L x 0.16andquot; W x 0.04andquot; H (5.0mm x 4.0mm x 1.1mm)	andnbsp;
Supplier Device Package	20-QFN (5x4)	andnbsp;
Control Features	Enable, Active High	andnbsp;
Base Product Number	EN5311

andnbsp;

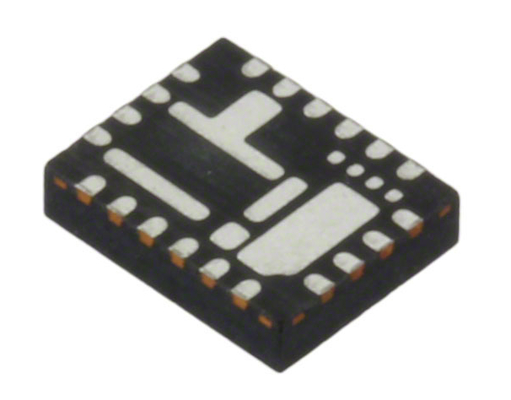

Drawing

EN5311QI 5A Synchronous Buck Converter 4.5-36V Input 95% Efficiency QFN-20 -40°C to +125°C AEC-Q100 1
