AON7534 30V N-Channel MOSFET 10.5mΩ Rds(on) 60A Continuous DFN5x6-8L -55°C to +175°C AEC-Q101

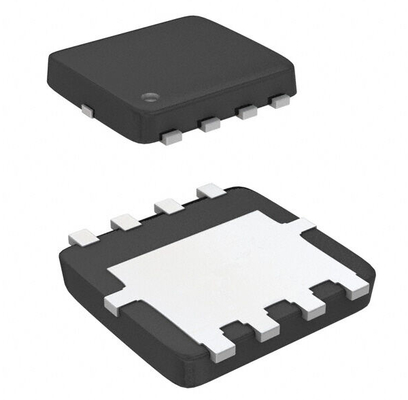

Large Image : AON7534 30V N-Channel MOSFET 10.5mΩ Rds(on) 60A Continuous DFN5x6-8L -55°C to +175°C AEC-Q101

Product Details:

Place of Origin:	China
Brand Name:	AlphaandOmega Semiconductor
Certification:	CE, GCF, ROHS
Model Number:	AON7534

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time:	3-5 working days after received the payment
Payment Terms:	T/T, Western Union,
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Function:	Step-Up, Step-Down	Output Configuration:	Positive Or Negative
Topology:	Buck, Boost	Output Type:	Adjustable
Number Of Outputs:	1
Highlight:	AON7534 N-Channel MOSFET , Continuous 60A MOSFET , 30V N-Channel MOSFET

AON7534 30V N-Channel MOSFET 10.5mandOmega; Rds(on) 60A Continuous DFN5x6-8L -55anddeg;C to +175anddeg;C AEC-Q101

andnbsp;

General Description

andbull; Trench Power MOSFET technology

andbull; Very Low RDS(on) at 4.5VGS

andbull; Low Gate Charge

andbull; High Current Capability

andbull; RoHS and Halogen-Free Compliant

andnbsp;

Application

andbull; DC/DC Converters in Computing, Servers, and POL

andbull; Isolated DC/DC Converters in Telecom and Industrial

andnbsp;

Features

High-Efficiency Power switching

andnbsp; 30V Drain-Source Voltage: ldeal for 12V/24V power systems

andnbsp; 60A Continuous Current (100A pulsed): Supports high-power load driving

Ultra-Low Conduction Loss
andnbsp; Rds(on)= 10.5m2 (Vgs=10V): Minimizes power dissipation, boosts efficiency

High-Frequency switching Optimization
andnbsp; Low Gate charge (Qg=38nC): Enables high-frequency PWM control (up to 1MHz)

andnbsp; Fast switching: Rise/Fall time andlt;20ns

Reliability andamp; Protection
andnbsp; 100% Avalanche Tested: Ensures stability under extreme conditions

AEC-Q101 Certified: Meets automotive-grade reliability standards

andnbsp;

Leading Power Density: DFN5x6-8L package is 80% smaller than TO-220

Superior Efficiency: 30% lower conduction loss vs. 15mQ MOSFETS

Wide Temperature Range: -55and#39;C to +175and#39;C for harsh environments

andnbsp;

INFORMATION

Category	Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs	andnbsp;
Mfr	Alpha andamp; Omega Semiconductor Inc.	andnbsp;
Series	-	andnbsp;
Packaging	Tape andamp; Reel (TR) Cut Tape (CT) Digi-Reelandreg;	andnbsp; andnbsp; andnbsp;
Part Status	Not For New Designs	andnbsp;
FET Type	N-Channel	andnbsp;
Technology	MOSFET (Metal Oxide)	andnbsp;
Drain to Source Voltage (Vdss)	30 V	andnbsp;
Current - Continuous Drain (Id) @ 25anddeg;C	20A (Ta), 30A (Tc)	andnbsp;
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V	andnbsp;
Rds On (Max) @ Id, Vgs	5mOhm @ 20A, 10V	andnbsp;
Vgs(th) (Max) @ Id	2.2V @ 250andmicro;A	andnbsp;
Gate Charge (Qg) (Max) @ Vgs	22 nC @ 10 V	andnbsp;
Vgs (Max)	andplusmn;20V	andnbsp;
Input Capacitance (Ciss) (Max) @ Vds	1037 pF @ 15 V	andnbsp;
FET Feature	-	andnbsp;
Power Dissipation (Max)	3W (Ta), 23W (Tc)	andnbsp;
Operating Temperature	-55anddeg;C ~ 150anddeg;C (TJ)	andnbsp;
Grade	-	andnbsp;
Qualification	-	andnbsp;
Mounting Type	Surface Mount	andnbsp;
Supplier Device Package	8-DFN-EP (3x3)	andnbsp;
Package / Case	8-PowerVDFN	andnbsp;
Base Product Number	AON75

andnbsp;

Drawing
