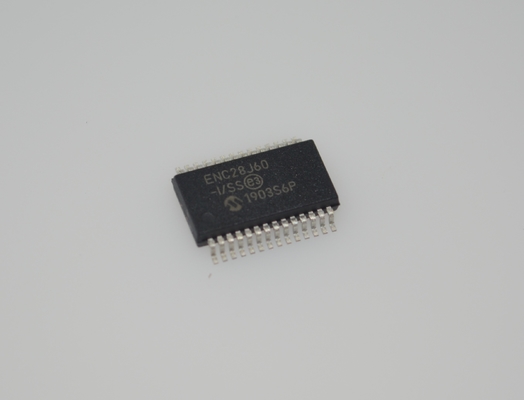

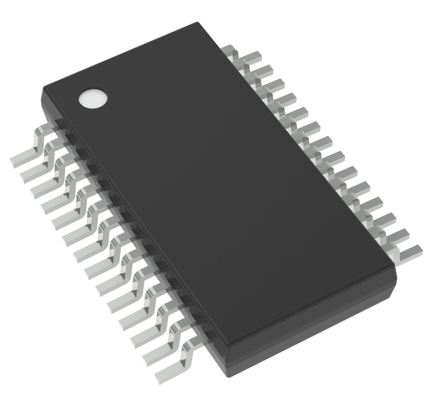

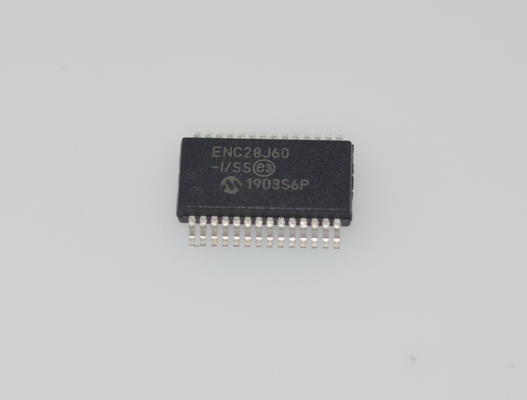

ENC28J60-I/SS Standalone Ethernet Controller 10Base-T SPI Interface 8KB Buffer 3.3V SSOP-28 -40°C to +85°C

ENC28J60-I

andnbsp;

Ethernet Controller Features

andbull; IEEE 802.3andtrade; Compatible Ethernet Controller

andbull; Fully Compatible with 10/100/1000Base-T Networks

andbull; Integrated MAC and 10Base-T PHY

andbull; Supports One 10Base-T Port with Automatic Polarity Detection and Correction

andbull; Supports Full and Half-Duplex modes

andbull; Programmable Automatic Retransmit on Collision

andbull; Programmable Padding and CRC Generation

andbull; Programmable Automatic Rejection of Erroneous Packets

andbull; SPI Interface with Clock Speeds up to 20MHz

andnbsp;

Buffer

andbull; 8-Kbyte Transmit/Receive Packet Dual Port SRAM

andbull; Configurable Transmit/Receive Buffer Size

andbull; Hardware Managed Circular Receive FIFO

andbull; Byte-Wide Random and Sequential Access with Auto-Increment

andbull; Internal DMA for Fast Data Movement

andbull; Hardware Assisted Checksum Calculation for Various Network Protocols

andnbsp;

Medium Access Controller (MAC) Features

andbull; Supports Unicast, Multicast and Broadcast Packets

andbull; Programmable Receive Packet Filtering and Wake-up Host on Logical AND or OR of the Following:

- Unicast destination address

- Multicast address

- Broadcast address

- Magic Packetandtrade;

- Group destination addresses as defined by 64-bit Hash Table

- Programmable Pattern Matching of up to 64bytes at user-defined offset

andnbsp;

Physical Layer (PHY) Features

andbull; Loopback mode

andbull; Two Programmable LED Outputs for LINK, TX, RX, Collision and Full/Half-Duplex Status Operational

andbull; Six Interrupt Sources and One Interrupt Output Pin

andbull; 25MHz Clock Input Requirement

andbull; Clock Out Pin with Programmable Prescaler

andbull; Operating Voltage of 3.1V to 3.6V (3.3V typical)

andbull; 5V Tolerant Inputs

andbull; Temperature Range: -40anddeg;C to +85anddeg;C Industrial, 0anddeg;C to +70anddeg;C Commercial (SSOP only)

andbull; 28-Pin SPDIP, SSOP, SOIC, QFN Packages

andnbsp;

INFORMATION

andnbsp;

Drawing

andnbsp;
