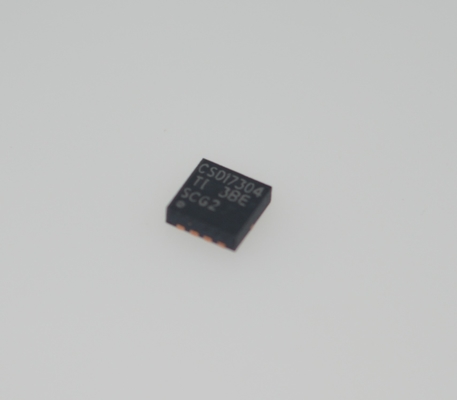

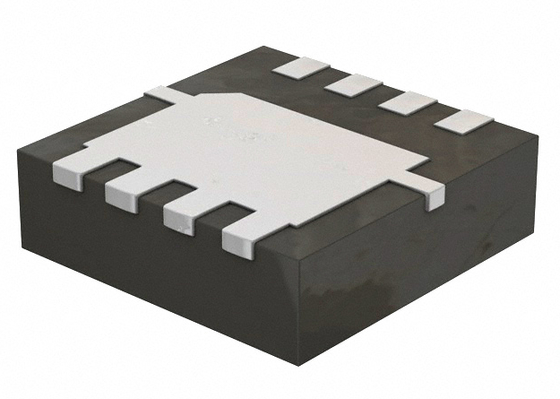

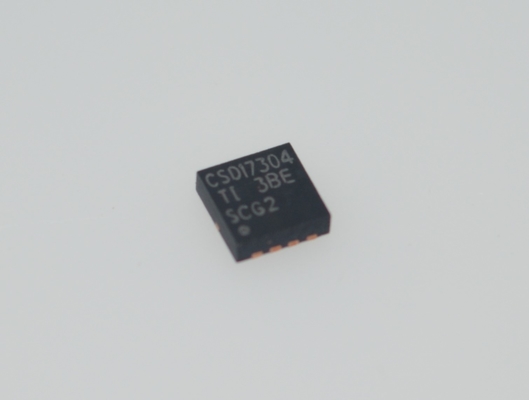

CSD17304Q3

andnbsp;

FEATURES

andbull; Optimizedfor5VGateDrive

andbull; UltralowQgandQgd

andbull; LowThermalResistance

andbull; AvalancheRated

andbull; PbFreeTerminalPlating

andbull; RoHSCompliant

andbull; HalogenFree

andbull; SON3.3-mmandtimes;3.3-mmPlasticPackage

andnbsp;

APPLICATIONS

andbull; NotebookPointofLoad

andbull; Point-of-LoadSynchronousBuckin

andnbsp;andnbsp;Networking,Telecom,andComputingSystems

andnbsp;

DESCRIPTION

The CSD17304Q3 is a 30V N-channel NexFETandtrade; power MOSFET from Texas Instruments (TI), featuring an advanced SON 3.3x3.3mm package. Designed for high-current, high-efficiency power conversion, its ultra-low Rds(on) (2.2mandOmega;) and 60A continuous current capability make it ideal for automotive electronics, industrial power systems, and motor drives.

✔ 80% smaller than TO-220 packages
✔ 60% lower conduction loss (vs. 5mandOmega; MOSFETs)
✔ Supports 1MHz PWM switching

andnbsp;

INFORMATION

Category	Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs	andnbsp;
Mfr	Texas Instruments	andnbsp;
Series	NexFETandtrade;	andnbsp;
Packaging	Tape andamp; Reel (TR) Cut Tape (CT) Digi-Reelandreg;	andnbsp; andnbsp; andnbsp;
Part Status	Active	andnbsp;
FET Type	N-Channel	andnbsp;
Technology	MOSFET (Metal Oxide)	andnbsp;
Drain to Source Voltage (Vdss)	30 V	andnbsp;
Current - Continuous Drain (Id) @ 25anddeg;C	15A (Ta), 56A (Tc)	andnbsp;
Drive Voltage (Max Rds On, Min Rds On)	3V, 8V	andnbsp;
Rds On (Max) @ Id, Vgs	7.5mOhm @ 17A, 8V	andnbsp;
Vgs(th) (Max) @ Id	1.8V @ 250andmicro;A	andnbsp;
Gate Charge (Qg) (Max) @ Vgs	6.6 nC @ 4.5 V	andnbsp;
Vgs (Max)	+10V, -8V	andnbsp;
Input Capacitance (Ciss) (Max) @ Vds	955 pF @ 15 V	andnbsp;
FET Feature	-	andnbsp;
Power Dissipation (Max)	2.7W (Ta)	andnbsp;
Operating Temperature	-55anddeg;C ~ 150anddeg;C (TJ)	andnbsp;
Grade	-	andnbsp;
Qualification	-	andnbsp;
Mounting Type	Surface Mount	andnbsp;
Supplier Device Package	8-VSON-CLIP (3.3x3.3)	andnbsp;
Package / Case	8-PowerTDFN	andnbsp;
Base Product Number	CSD17304
