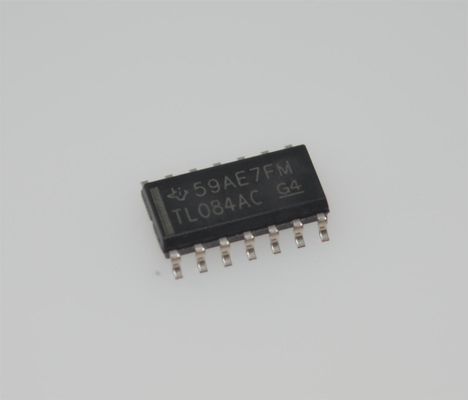

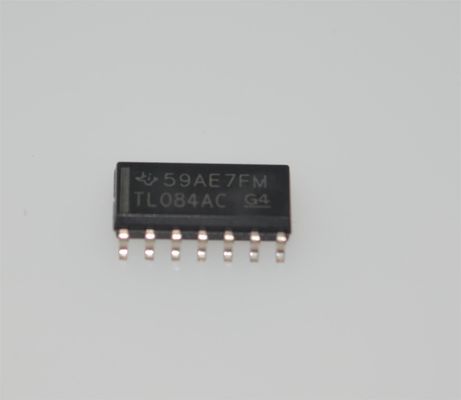

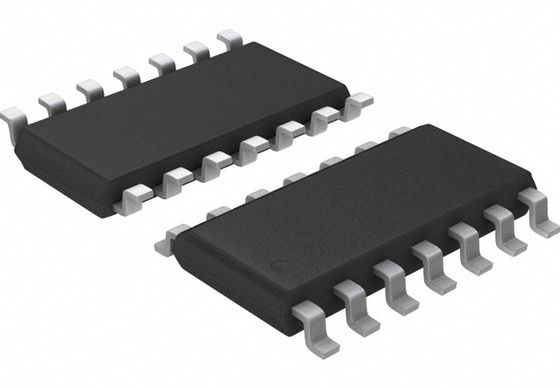

TL084ACDR Quad Precision JFET Op Amp 4MHz BW 13V/μs Slew Rate ±18V Supply 3pA Input Bias SOIC-14 -40°C to +125°C

TL084ACDR Quad Precision JFET Op Amp 4MHz BW 13V/μs Slew Rate ±18V Supply 3pA Input Bias SOIC-14 -40°C to +125°C

Features

• High slew rate: 20V/μs (TL08xH, typ)

• Low offset voltage: 1mV (TL08xH, typ)

• Low offset voltage drift: 2 μV/°C

• Low power consumption: 940μA/ch (TL08xH, typ)

• Wide common-mode and differential voltage ranges– Common-mode input voltage range includes VCC+

• Low input bias and offset currents

• Low noise: Vn = 18nV/√ Hz (typ) at f = 1kHz

• Output short-circuit protection

• Low total harmonic distortion: 0.003% (typ)

• Wide supply voltage: ±2.25V to ±20V, 4.5V to 40V

Applications

• Solar energy: string and central inverter

• Motor drives: AC and servo drive control and power stage modules

• Single phase online UPS

• Three phase UPS

• Pro audio mixers

• Battery test equipment

Description

The TL08xH (TL081H, TL082H, and TL084H) family of devices are the next-generation versions of the industry-standard TL08x (TL081, TL082, and TL084) devices. These devices provide outstanding value for cost-sensitive applications, with features including low offset (1mV, typical), high slew rate (20V/μs), and common-mode input to the positive supply. High ESD (1.5kV, HBM), integrated EMI and RF filters, and operation across the full –40°C to 125°C enable the TL08xH devices to be used in the most rugged and demanding applications.

INFORMATION

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
