78M05 5V 500mA Linear Regulator TO-252 2V Dropout ±4% Accuracy -40°C to +125°C

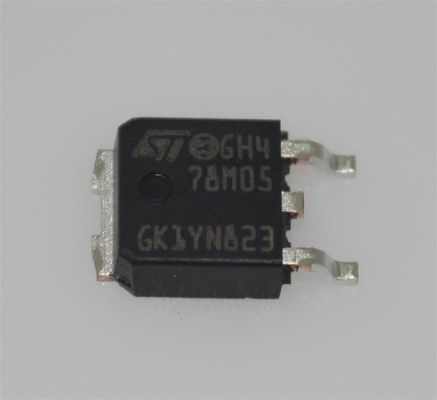

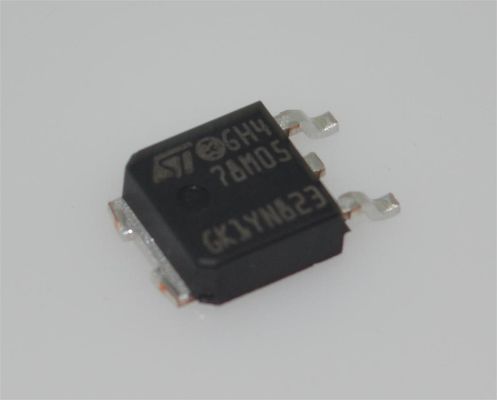

Large Image : 78M05 5V 500mA Linear Regulator TO-252 2V Dropout ±4% Accuracy -40°C to +125°C

Product Details:

Place of Origin:	China
Brand Name:	Texas Instruments
Certification:	CE, GCF, ROHS
Model Number:	78M05

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time:	3-5 working days after received the payment
Payment Terms:	T/T, Western Union,
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Function:	Step-Up, Step-Down	Output Configuration:	Positive Or Negative
Topology:	Buck, Boost	Output Type:	Adjustable
Number Of Outputs:	1
Highlight:	78M05 TO-252 Linear Regulator , 500mA Linear Regulator , 78M05 5V Linear Regulator

78M05

andnbsp;

Features

andbull; Output Current up to 1A

andbull; Output Voltages of 5V

andbull; Thermal Overload Protection

andbull; Short Circuit Protection

andbull; Output Transistor Safe Operating Area (SOA)Protection

andnbsp;

Description

The 78MXX series of three-terminal

package with several fixed output voltages making it useful

in a wide range of applications.

andnbsp;

APPLICATION

1. Basic Power Regulation
andnbsp; Digital circuits: Provides stable 5V for MCUs (e.g., 8051) and logic chips (74-series)

andnbsp; Sensor modules: Power management for optical/temperature sensors
2.Industrial Control
andnbsp; PLC l/0 modules: lsolated power for relays/optocouplers

andnbsp; Test equipment: Auxiliary power for multimeters/oscilloscopes
3.Consumer Electronics
andnbsp; Appliance control boards: Microwave/coffee maker circuits

andnbsp; Toys/digital clocks: Low-cost battery-powered designs (requires andge;7V input)

andnbsp;

INFORMATION

Category	Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators	andnbsp;
Mfr	Shenzhen Slkormicro Semicon Co., Ltd.	andnbsp;
Series	78MXX	andnbsp;
Packaging	Tape andamp; Reel (TR) Cut Tape (CT) Digi-Reelandreg;	andnbsp; andnbsp; andnbsp;
Part Status	Active	andnbsp;
Output Configuration	Positive	andnbsp;
Output Type	Fixed	andnbsp;
Number of Regulators	1	andnbsp;
Voltage - Input (Max)	30V	andnbsp;
Voltage - Output (Min/Fixed)	5V	andnbsp;
Voltage - Output (Max)	-	andnbsp;
Voltage Dropout (Max)	2V @ 350mA	andnbsp;
Current - Output	1A	andnbsp;
Current - Quiescent (Iq)	6 mA	andnbsp;
PSRR	80dB (120Hz)	andnbsp;
Control Features	-	andnbsp;
Protection Features	Over Temperature, Short Circuit	andnbsp;
Operating Temperature	-40anddeg;C ~ 150anddeg;C (TJ)	andnbsp;
Grade	-	andnbsp;
Qualification	-	andnbsp;
Mounting Type	Surface Mount	andnbsp;
Package / Case	TO-252-3, DPAK (2 Leads + Tab), SC-63	andnbsp;
Supplier Device Package	TO-252

andnbsp;

Drawing

Our advantage :

High quality products --- our offers are 100% new and original, ROHS
Competitive price --- good Purchase channels with good price.
Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
Adequate inventory --- With the support of our strong Purchasing team,
Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^

Product List
Supply a Series of Electronic Components, full range of semiconductors, active andamp; passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,

The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer andamp; Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal andamp; Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
