08055C224JAT2A 220nF MLCC 50V, X7R ±5% Tol 0805 -55°C to +125°C Low ESR

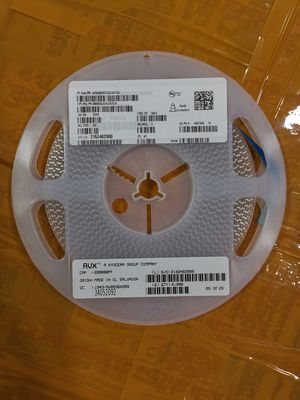

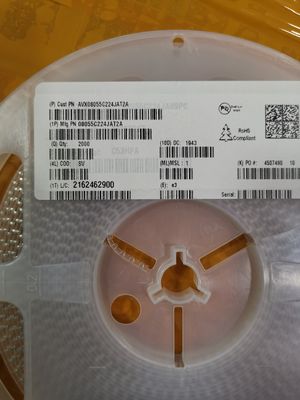

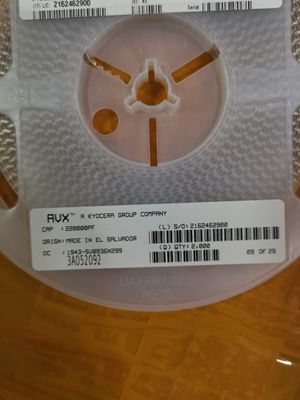

Large Image : 08055C224JAT2A 220nF MLCC 50V, X7R ±5% Tol 0805 -55°C to +125°C Low ESR

Product Details:

Place of Origin:	China
Brand Name:	AVX
Certification:	CE,ROHS
Model Number:	08055C224JAT2A

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs

Contact Now

Detailed Product Description

Frequency Stability:	±50ppm	Frequency Tolerance:	±30ppm
Operating Temperature:	-40°C ~ 85°C	Load Capacitance:	18pF
Package / Case:	HC-49/US	Name:	Passive Electronic Components
Highlight:	50V 0805 MLCC , 08055C224JAT2A MLCC , 220nF 0805 MLCC

08055C224JAT2A

andnbsp;

DESCRIPTION

The X7R dielectric is the most popular of the intermediate EIA class II materials due to its relative temperature stability. While the capacitance change is non-linear, temperature variation is within andplusmn;15% from - 55anddeg;C to + 125anddeg;C. Capacitance for X7R varies under the influence of electrical operating conditions such as voltage and frequency. X7R dielectric chip usage covers a broad spectrum of industrial applications where known changes in capacitance due to applied voltages are acceptable.

andnbsp;

APPLICATION

1.Power Systems
andnbsp; Dc-Dc Converters: input/output filtering for voltage stabilization (e.g., 3.3V/5V power rails)

andnbsp; Bypass/Decoupling: High-frequency noise suppression (placed near lC power pins)
2.Consumer Electronics
andnbsp; Smartphones/Tablets: Power management on mainboards.

andnbsp; loT Devices: Power filtering for wireless modules (Wi-Fi/BLE)
3. Industrial Control
andnbsp; PLC Modules: Noise filtering in signal conditioning circuits

andnbsp; Motor Drives: Voltage buffering in lGBT gate drivers
4.Automotive Electronics
andnbsp; ECU Power: Complies with AEC-Q200 (verify specific suffix)

andnbsp; Vehicle sensors: RC filtering in signal chains

andnbsp;

INFORMATION

Category	Capacitors Ceramic Capacitors	andnbsp;
Mfr	KYOCERA AVX	andnbsp;
Series	KGM - X7R	andnbsp;
Packaging	Tape andamp; Reel (TR) Cut Tape (CT) Digi-Reelandreg;	andnbsp; andnbsp; andnbsp;
Part Status	Active	andnbsp;
Capacitance	0.22 andmicro;F	andnbsp;
Tolerance	andplusmn;5%	andnbsp;
Voltage - Rated	50V	andnbsp;
Temperature Coefficient	X7R	andnbsp;
Operating Temperature	-55anddeg;C ~ 125anddeg;C	andnbsp;
Features	-	andnbsp;
Ratings	-	andnbsp;
Applications	General Purpose	andnbsp;
Failure Rate	-	andnbsp;
Mounting Type	Surface Mount, MLCC	andnbsp;
Package / Case	0805 (2012 Metric)	andnbsp;
Size / Dimension	0.079andquot; L x 0.049andquot; W (2.01mm x 1.25mm)	andnbsp;
Height - Seated (Max)	-	andnbsp;
Thickness (Max)	0.057andquot; (1.45mm)	andnbsp;
Lead Spacing	-	andnbsp;
Lead Style	-

andnbsp;

Drawing

andnbsp;

----------------------------------------------------------

1. 10 years components experience; One-Stop service for BOM list; PCBandamp;PCBA Service.

2. Produce Communication Antenna, RF Coaxial Cable, RF Connector,Terminals.

3. Distribute GSM/GPRS,GPS,3G,4G/LTE Module.

Our high quality products , competitive price and professional service,

be sure to meet your need for all kinds of components. ^_^

andnbsp;
