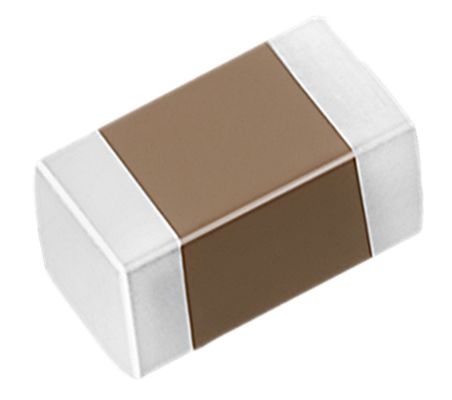

0402N5R6C500 5.6pF MLCC 50V C0G/NP0 ±0.25pF Tol 0402 -55°C to +125°C

Large Image : 0402N5R6C500 5.6pF MLCC 50V C0G/NP0 ±0.25pF Tol 0402 -55°C to +125°C

Product Details:

Place of Origin:	China
Brand Name:	Walsin
Certification:	CE,ROHS
Model Number:	0402N5R6C500

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs

Contact Now

Detailed Product Description

Frequency Stability:	±50ppm	Frequency Tolerance:	±30ppm
Operating Temperature:	-40°C ~ 85°C	Load Capacitance:	18pF
Package / Case:	HC-49/US	Name:	Passive Electronic Components
Highlight:	NP0 5.6pF MLCC , 0402N5R6C500 MLCC , C0G 5.6pF MLCC

0402N5R6C500

andnbsp;

DESCRIPTION

MLCC consists of a conducting material and electrodes. To manufacture a chip-type SMT and achieve miniaturization, high density and high efficiency, ceramic condensers are used. MLCC is made by NP0 (C0G), X7R, X5R And X6S dielectric material and which provides product with high electrical precision, stability and reliability.

andnbsp;

MAIN FEATURE

andbull; A Wide Selection Of Size Is Available

andbull; Rated Voltage Range 6.3V ~ 100V

andbull; High Capacitance In Given Case Size

andbull; Temperature Characteristics: NP0 (C0G), X7R, X5R and X6S

andbull; Capacitor With Lead-free Termination (Pure Tin)

andbull; REACH/RoHS/RoHS III Compliant

andnbsp;

APPLICATION

andbull; General Digital Circuit

andbull; Power Supply by pass capacitors

andbull; Consumer Electronics

andbull; Telecommunication

andnbsp;

INFORMATION

Category	Capacitors Ceramic Capacitors	andnbsp;
Mfr	Aillen	andnbsp;
Series	0402	andnbsp;

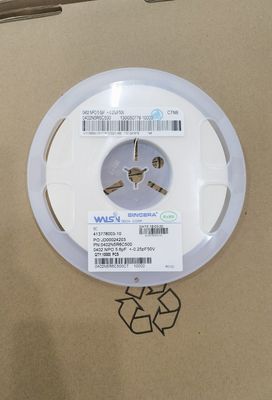

Packaging	Tape andamp; Reel (TR)	andnbsp;
Part Status	Active	andnbsp;
Capacitance	5.6 pF	andnbsp;
Tolerance	andplusmn;0.25pF	andnbsp;
Voltage - Rated	50V	andnbsp;
Temperature Coefficient	C0G, NP0	andnbsp;
Operating Temperature	-55anddeg;C ~ 125anddeg;C	andnbsp;
Applications	General Purpose	andnbsp;
Mounting Type	Surface Mount, MLCC	andnbsp;
Package / Case	0402 (1005 Metric)	andnbsp;
Size / Dimension	0.039andquot; L x 0.020andquot; W (1.00mm x 0.50mm)	andnbsp;
Thickness (Max)	0.027andquot; (0.68mm)

andnbsp;

Drawing

andnbsp;

----------------------------------------------------------

1. 10 years components experience; One-Stop service for BOM list; PCBandamp;PCBA Service.

2. Produce Communication Antenna, RF Coaxial Cable, RF Connector,Terminals.

3. Distribute GSM/GPRS,GPS,3G,4G/LTE Module.

Our high quality products , competitive price and professional service,

be sure to meet your need for all kinds of components. ^_^

andnbsp;
