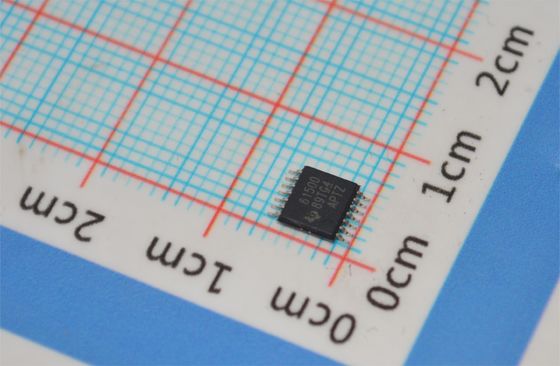

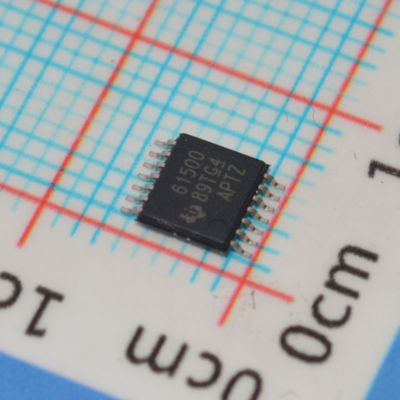

TPS61500PWPR 5V 1.2A Boost Converter 2.5-5.5V Input 95% Efficiency 1MHz 14-HTSSOP -40°C to +85°C

TPS61500PWPR

andnbsp;

Features

andbull; 2.9-V to 18-V Input Voltage Range

andbull; 3-A, 40-V Internal Power Switchandndash; Four 3-W LEDs From 5-V Inputandndash; Eight 3-W LEDs From 12-V Input

andbull; High-Efficiency Power Conversion: Up to 93%

andbull; Frequency Set by External Resistor: 200 kHz to 2.2 MHz

andbull; User-Defined Soft Start Into Full Load

andbull; Programmable Overvoltage Protection

andbull; Analog and Pure PWM Brightness Dimming

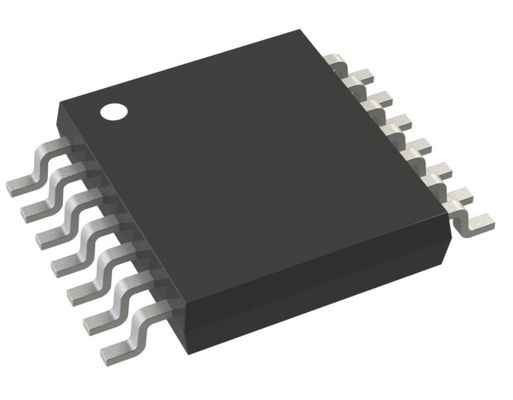

andbull; 14-Pin HTSSOP Package With PowerPADandtrade;

andnbsp;

Applications

andbull; Monitor Backlight

andbull; 1-Wor3-W High-Brightness LED

andnbsp;

Description

The TPS61500 is a monolithic switching regulator with integrated 3-A, 40-V power switch. It is an ideal driver for high brightness 1-W or 3-W LED. The device has a wide input voltage range to support application with input voltage from multi-cell batteries or regulated 5-V or 12-V power rails. Vin 5 V PWM C4 C5 R4 1 The LED current is set with an external sensor resistor R3, and the feedback voltage that is regulated to 200 mV by current mode PWM (pulse width modulation) control loop, as shown in Typical Application Circuit. The device supports analog and pure PWM dimming methods for LED brightness control. Connecting a capacitor to the DIMC pin configures the device to be used for analog dimming, and the LED current varies proportional to the duty cycle of an external PWM signal. Floating the DIMC pin configures the device for pure PWM dimming with the average LED current being the PWM signaland#39;s duty cycle times a set LED current. The device features a programmable soft-start function to limit inrush current during start-up, and it has other built-in protection features, such as pulse by-pulse overcurrent limit, overvoltage protection, and thermal shutdown. The TPS61500 is available in 14 pin HTSSOP package with PowerPAD.
