TLC549CP 8-bit ADC 40ksps 4MHz Clock Single Supply 3-6V DIP-8 ±0.5LSB INL Low Power <15mW -40°C to +85°C

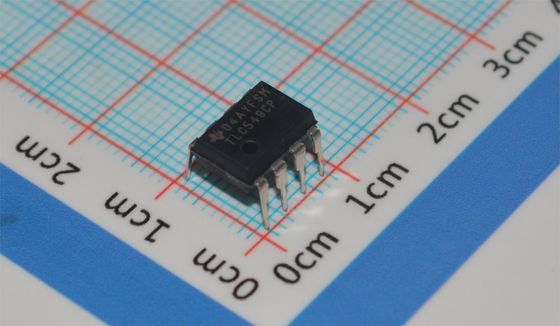

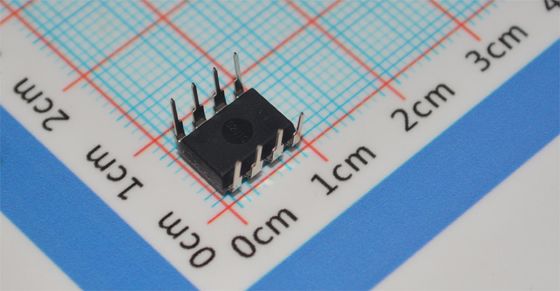

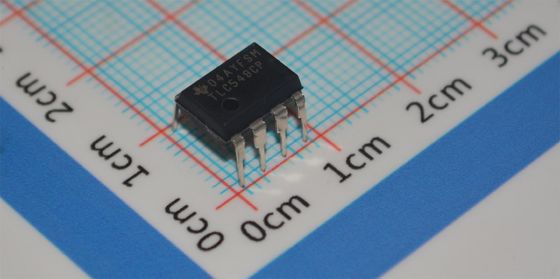

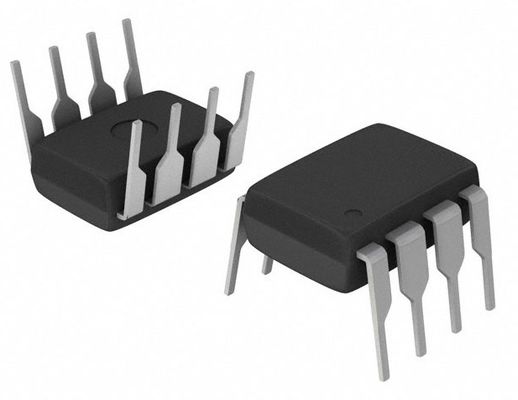

TLC549CP

Features

D Microprocessor Peripheral or Standalone
D 8-Bit Resolution AD Converter
D Differential Reference Input Voltages
D Conversion Time ..17 μs Max
D Total Access and Conversion Cycles Per
Second
           -TLC548...up to 45 500

           -TLC549...up to 40 000

D On-Chip Software-Controllable
       Sample-and-Hold Function

D Total Unadjusted Error... +0.5 LSB Max
D 4-MHz Typical Internal System Clock
D Wide Supply Range...3 V to 6 v
D Low Power Consumption...l5 mWMax
D Ideal for Cost-Effective, High-Performance
       Applications including Battery-Operated

       Portable Instrumentation

D Pinout and Control Signals Compatible
       With the TLC540 and TLC545 8-Bit A/D

       Converters and with the TLCl540 10-BitA/D Converter

D CMOs Technology

description
The TLC548 and TLCs49 are CMOS analog-to-digital converter (ADc) integrated circuits built around an 8-bitswitched-capacitor successive-approximation ADC, These devices are designed for serial interface with amicroprocessor or peripheral through a 3-state data output and an analog input. The TLC548 and TLC549 useonly the input/output clock (1/0 CLOCK) input along with the chip select (CS) input for data control. Themaximum I/0 CLOCK input freguency of the TLc548 is 2.048 MHz. and the 10 CLOcK input frequency of theTLC549 is specified up to 1.1 MHz.

Information

Drawing
