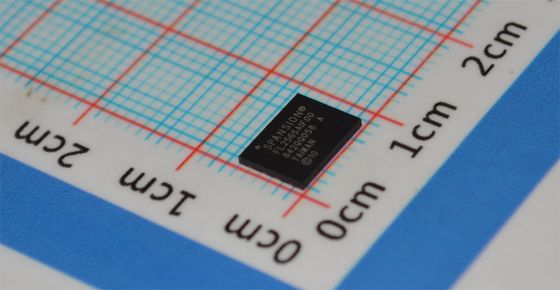

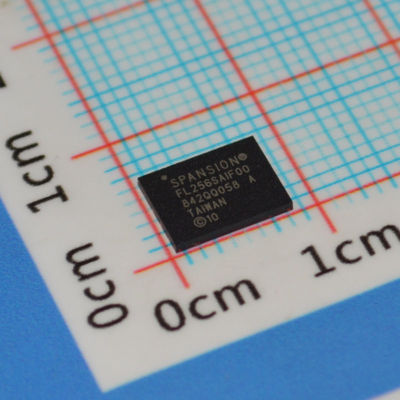

S25FL256SAGNFI010 256Mb (32MB) Serial NOR Flash 104MHz SPI 100K Erase/Program Cycles 20-Year Data Retention 2.7-3.6V WSON-8 -40°C to +85°C Automotive Grade

S25FL256SAGNFI010

andnbsp;

Features

andbull; CMOS 3.0V core with versatile I/O

andbull; Serial Peripheral Interface (SPI) with multi-I/O- SPI clock polarity and phase modes 0 and 3- DDR option- Extended addressing: 24- or 32-bit address options- Serial command set and footprint compatible with S25FL-A, S25FL-K, and S25FL-P SPI families- Multi I/O command set and footprint compatible with S25FL-P SPI family

andbull;Read commands- Normal, Fast, Dual, Quad, Fast DDR, Dual DDR, Quad DDR- AutoBoot andndash; Power up or reset and execute a Normal or Quad read command automatically at a preselected address- Common Flash Interface (CFI) data for configuration information

andbull; Programming (1.5 MBps)- 256- or 512-byte page programming buffer options- Quad-input page programming (QPP) for slow clock systems- Automatic ECC-internal hardware error correction code generation with single-bit error correction

andbull; Erase (0.5 to 0.65 MBps)- Hybrid sector size option andndash; Physical set of thirty two 4-KB sectors at top or bottom of address space with all remaining sectors of 64 KB, for compatibility with prior generation S25FL devices- Uniform sector option andndash; always erase 256-KB blocks for software compatibility with higher density and future devices

andbull;Cycling endurance- 100,000 program-erase cycles, minimum

andbull;Data retention- 20 year data retention, minimum

andbull; Security features- One-time programmable (OTP) array of 1024 bytes-Block protection

andbull; Status Register bits to control protection against program or erase of a contiguous range of sectors

andbull; Hardware and software control options- Advanced sector protection (ASP)

andbull; Individual sector protection controlled by boot code or password

andbull; 65-nm MIRRORBITandtrade; technology with Eclipse architecture

andbull; Core supply voltage: 2.7 V to 3.6 V

andbull; I/O supply voltage: 1.65 V to 3.6 V - SO16 and FBGA packages

andnbsp;

Temperature range/grade:

- Industrial (40anddeg;C to +85anddeg;C)

- Industrial Plus (40anddeg;C to +105anddeg;C)

- Automotive AEC-Q100 grade 3 (40anddeg;C to +85anddeg;C)

- Automotive AEC-Q100 grade 2 (40anddeg;C to +105anddeg;C)

- Automotive AEC-Q100 grade 1 (40anddeg;C to +125anddeg;C)

Packages (all Pb-free)

- 16-lead SOIC (10.30 andtimes; 7.50 andtimes; 2.65 mm) (300 mil)

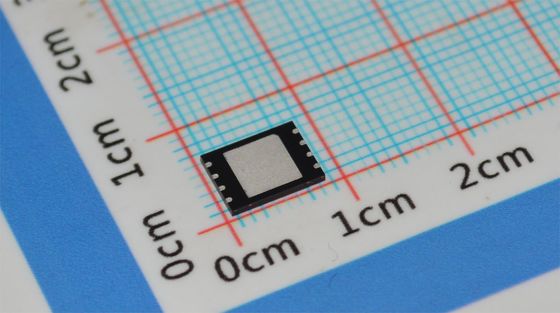

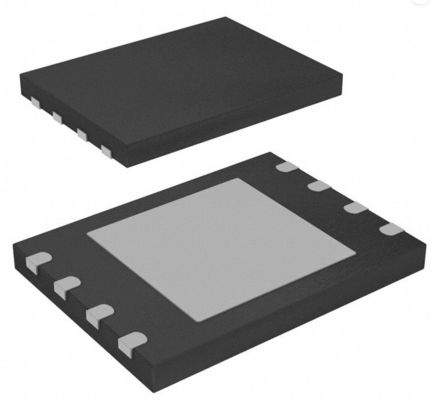

- 8-lead DFN (6.0 andtimes; 8.0 andtimes; 0.8 mm) (WSON)

- 24-ball FBGA (8.0 andtimes; 6.0 andtimes; 1.2 mm)

andnbsp; andnbsp;andbull; 5 andtimes; 5 ball (FAB024) and 4 andtimes; 6 ball (FAC024) footprint options

andnbsp; andnbsp;andbull; Known good die (KGD) and known tested die

andnbsp;

Information
