PIC16F54-I/P 8-bit RISC MCU 20MHz 512x12 Flash 25B RAM 12 I/O DIP-18 2-5.5V -40°C~125°C Low Power <2mA

PIC16F54-I/P 8-bit RISC MCU 20MHz 512x12 Flash 25B RAM 12 I/O DIP-18 2-5.5V -40°C~125°C Low Power <2mA
PIC16F54-I/P 8-bit RISC MCU 20MHz 512x12 Flash 25B RAM 12 I/O DIP-18 2-5.5V -40°C~125°C Low Power <2mA PIC16F54-I/P 8-bit RISC MCU 20MHz 512x12 Flash 25B RAM 12 I/O DIP-18 2-5.5V -40°C~125°C Low Power <2mA PIC16F54-I/P 8-bit RISC MCU 20MHz 512x12 Flash 25B RAM 12 I/O DIP-18 2-5.5V -40°C~125°C Low Power <2mA PIC16F54-I/P 8-bit RISC MCU 20MHz 512x12 Flash 25B RAM 12 I/O DIP-18 2-5.5V -40°C~125°C Low Power <2mA

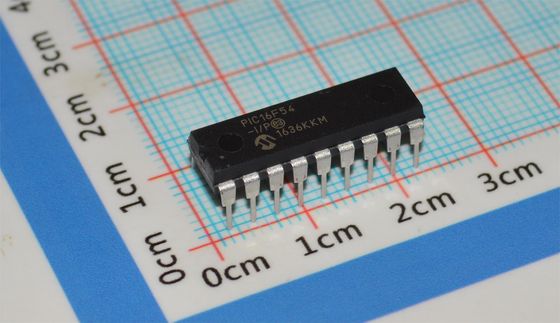

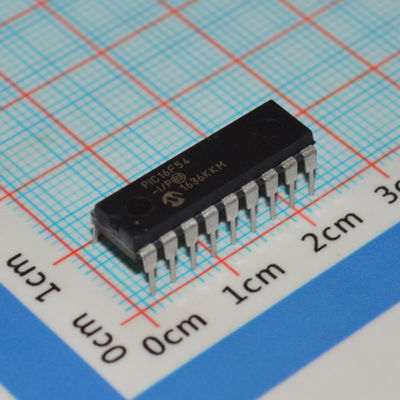

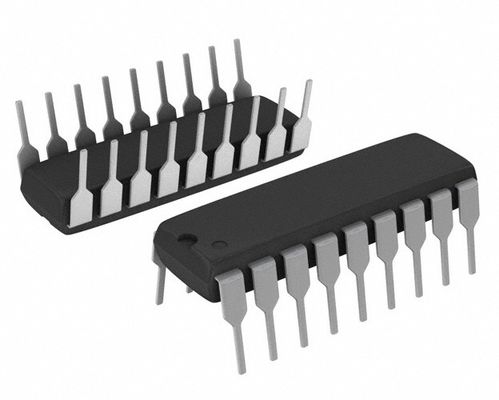

Large Image :  PIC16F54-I/P 8-bit RISC MCU 20MHz 512x12 Flash 25B RAM 12 I/O DIP-18 2-5.5V -40°C~125°C Low Power <2mA

Product Details:
Place of Origin: China
Brand Name: Microchip
Certification: CE, GCF, ROHS
Model Number: PIC16F54-I/P
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time: 3-5 working days after received the payment
Payment Terms: T/T, Western Union,
Supply Ability: 1000pcs per month
Detailed Product Description
Packaging Type: Reel Tray Tube Tape Bag Operating Temperature: -40°C ~ 125°C
Package / Case: WSON-8 Mounting Type: SMD/SMT
Manufacturing Date Code: 2024+ Function: Step-Down

PIC16F54-I/P

Features:

• Power-on Reset (POR)

• Device Reset Timer (DRT)

• Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

• Programmable Code Protection

• Power-Saving Sleep mode

• In-Circuit Serial Programming™ (ICSP™)

• Selectable oscillator options:

- RC: Low-cost RC oscillator

- XT: Standard crystal/resonator

- HS: High-speed crystal/resonator

- LP: Power-saving, low-frequency crystal



Low-Power Features:

  • Operating Current:- 170μA @ 2V, 4 MHz, typical - 15μA @ 2V, 32 kHz, typical

  • Standby Current:- 500 nA @ 2V, typical



Peripheral Features:

  • 12/20/32 I/O pins:- Individual direction control- High current source/sink

  • 8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler



Information

Category
Mfr
Series
Packaging
Tube
Part Status
Active
DigiKey Programmable
Verified
Core Processor
PIC
Core Size
8-Bit
Speed
20MHz
Connectivity
-
Peripherals
POR, WDT
Number of I/O
12
Program Memory Size
Program Memory Type
FLASH
EEPROM Size
-
RAM Size
25 x 8
Voltage - Supply (Vcc/Vdd)
2V ~ 5.5V
Data Converters
-
Oscillator Type
External
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Through Hole
Supplier Device Package
18-PDIP
Package / Case
18-DIP (0.300", 7.62mm)
Base Product Number



Drawing

PIC16F54-I/P 8-bit RISC MCU 20MHz 512x12 Flash 25B RAM 12 I/O DIP-18 2-5.5V -40°C~125°C Low Power <2mA 0
