Home ProductsIntegrated Circuit Components

OP07DRZ 0.6μV Low-Noise Op Amp 0.3μV/°C Drift 600nV Max Offset ±18V Supply SOIC-8 -40°C to +85°C

China TOP Electronic Industry Co., Ltd. certification
China TOP Electronic Industry Co., Ltd. certification
Excellent product , good quality , competitive price , professional service , with 10 years cooperation , now we become good friends each other.

—— Ronald-from Boilvia

It is very glad to find TOP as our partner in China , here we can get the best Product and serice , they always put the customer at the first place.

—— Carlos-from Argentina

I am very satisfied with all your service. It is really a good team! with your one-stop solution offer , help us to save much time and money

—— Giancarlo-from Italy

I'm Online Chat Now

OP07DRZ 0.6μV Low-Noise Op Amp 0.3μV/°C Drift 600nV Max Offset ±18V Supply SOIC-8 -40°C to +85°C

OP07DRZ 0.6μV Low-Noise Op Amp 0.3μV/°C Drift 600nV Max Offset ±18V Supply SOIC-8 -40°C to +85°C
OP07DRZ 0.6μV Low-Noise Op Amp 0.3μV/°C Drift 600nV Max Offset ±18V Supply SOIC-8 -40°C to +85°C OP07DRZ 0.6μV Low-Noise Op Amp 0.3μV/°C Drift 600nV Max Offset ±18V Supply SOIC-8 -40°C to +85°C OP07DRZ 0.6μV Low-Noise Op Amp 0.3μV/°C Drift 600nV Max Offset ±18V Supply SOIC-8 -40°C to +85°C

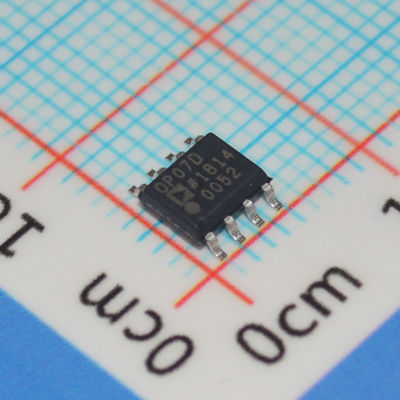

Large Image :  OP07DRZ 0.6μV Low-Noise Op Amp 0.3μV/°C Drift 600nV Max Offset ±18V Supply SOIC-8 -40°C to +85°C

Product Details:
Place of Origin: China
Brand Name: Analog Devices Inc
Certification: CE, GCF, ROHS
Model Number: OP07DRZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time: 3-5 working days after received the payment
Payment Terms: T/T, Western Union,
Supply Ability: 1000pcs per month
Detailed Product Description
Packaging Type: Reel Tray Tube Tape Bag Operating Temperature: -40°C ~ 125°C
Package / Case: WSON-8 Mounting Type: SMD/SMT
Manufacturing Date Code: 2024+ Function: Step-Down

OP07DRZ



FEATURES

Low offset voltage: 150 µV max

Input offset drift: 1.5 µV/°C max

Low noise: 0.25 μV p-p

High gain CMRR and PSRR: 115 dB min

Low supply current: 1.1 mA

Wide supply voltage range: ±4 V to ±18 V operation



APPLICATIONS

Medical and industrial instrumentation

Sensors and controls

  Thermocouple

  RTDs

  Strain bridges

  Shunt current measurements

Precision filters



GENERAL DESCRIPTION

The OP07D is a precision, ultralow offset amplifier. It integrates low power (1.1 mA typical), low input bias current (±1 nA maximum), and high CMRR/PSRR (130 dB) in the small DIP package. Operation is fully specified from ±5 V to ±15 V supply.

The OP07D provides higher accuracy than industry-standard OP07-type amplifiers due to Analog Devices’ iPolar™ process, which supports enhanced performance in a smaller footprint. These performance enhancements include wider output swing, lower power, and higher CMRR (common-mode rejection ratio) and PSRR (power supply rejection ratio).

The OP07D maintains stability of offsets and gain virtually regardless of variations in time or temperature. Excellent linearity and gain accuracy can be maintained at high closed-loop gains. The OP07D is fully specified over the extended industrial tem perature range of −40°C to +125°C. The OP07D amplifier is available in 8-lead DIP and the popular 8-lead, narrow SOIC lead-free packages



Information

Category
Mfr
Series
-
Packaging
Tube
Part Status
Active
Amplifier Type
Number of Circuits
1
Output Type
-
Slew Rate
0.2V/µs
Gain Bandwidth Product
600 kHz
-3db Bandwidth
600 kHz
Current - Input Bias
200 pA
Voltage - Input Offset
45 µV
Current - Supply
1.1mA
Current - Output / Channel
15 mA
Voltage - Supply Span (Min)
8 V
Voltage - Supply Span (Max)
36 V
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC
Base Product Number



Drawing

OP07DRZ 0.6μV Low-Noise Op Amp 0.3μV/°C Drift 600nV Max Offset ±18V Supply SOIC-8 -40°C to +85°C 0
