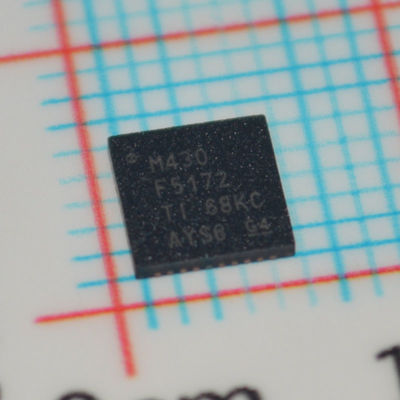

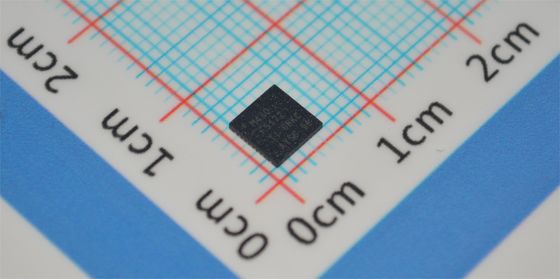

MSP430F5172IRSBR 16MHz Ultra-Low Power MCU, 32KB Flash 4KB RAM 12-bit ADC, QFN-32 0.1μA Sleep -40°C to +85°C

MSP430F5172IRSBR

andnbsp;

Features andnbsp;

andbull; LowSupply-Voltage Range: 3.6 V Down to 1.8 V

andbull; Ultra-Low Power Consumptionandndash; Active Mode (AM): 180 andmicro;A/MHzandndash; Standby Mode (LPM3 WDT Mode, 3 V): 1.1 andmicro;Aandndash; Off Mode (LPM4 RAM Retention, 3 V): 0.9 andmicro;Aandndash; Shutdown Mode (LPM4.5, 3 V): 0.25 andmicro;A

andbull; Wake up From Standby Mode in Less Than 5 andmicro;s

andbull; 16-Bit RISC Architecture, Extended Memory, 40-ns Instruction Cycle Time

andbull; Flexible Power-Management Systemandndash; Fully Integrated LDO With Programmable Regulated Core Supply Voltageandndash; Supply Voltage Supervision, Monitoring, and Brownout

andbull; Unified Clock Systemandndash; FLL Control Loop for Frequency Stabilizationandndash; Low-Power Low-Frequency Internal Clock Source (VLO)andndash; Low-Frequency Trimmed Internal Reference Source (REFO)andndash; 32-kHz Crystals (XT1)andndash; High-Frequency Crystals up to 25 MHz (XT1)

andbull; Hardware Multiplier Supports 32-Bit Operations

andbull; 3-Channel DMA

andbull; Upto Twelve 5-V-Tolerant Digital Push/Pull I/Os With up to 20-mA Drive Strength(1)

andbull; 16-Bit Timer TD0 With Three Capture/Compare Registers and Support of High-Resolution Mode

andbull; 16-Bit Timer TD1 With Three Capture/Compare Registers and Support of High-Resolution Mode

andbull; 16-Bit Timer TA0 With Three Capture/Compare Registers

andbull; Universal Serial Communication Interfaces (USCIs) (1)andndash; USCI_A0 Supports:andndash; Enhanced UART Supports Automatic Baud Rate Detectionandndash; IrDA Encoder and Decoderandndash; Synchronous SPIandndash; USCI_B0 Supports:andndash; I2Candndash; Synchronous SPI

andbull; 10-Bit 200-ksps Analog-to-Digital Converter (ADC)andndash; Internal Referenceandndash; Sample-and-Holdandndash; Autoscan Featureandndash; Upto 8 External Channels and 2 Internal Channels, Including Temperature Sensor(1)

andbull; Upto 16-Channel On-Chip Comparator Including an Ultra-Low-Power Mode(1)

andbull; Serial Onboard Programming, No External Programming Voltage Needed

andbull; Device Comparison Summarizes the Available Family Members

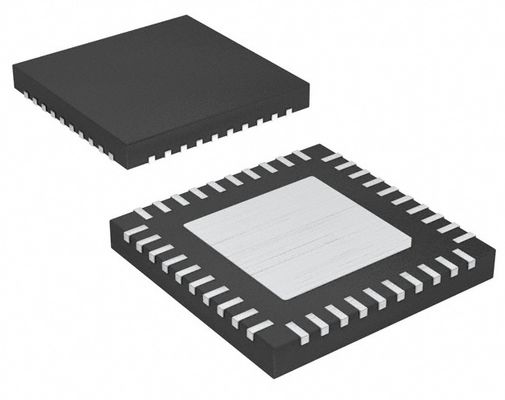

andbull; Available in 40-Pin QFN (RSB), 38-Pin TSSOP (DA), and 40-Pin Die-Sized BGA (YFF) Packages

andnbsp;

Applications

andbull; Analog and Digital Sensor Systems

andbull; LEDLighting

andbull; Digital Power Supplies

andbull; Motor Controls

andbull; Remote Controls

andbull; Thermostats

andnbsp;
