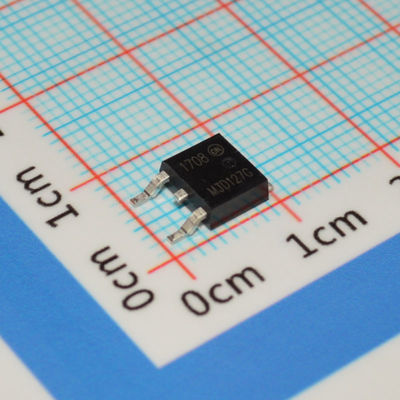

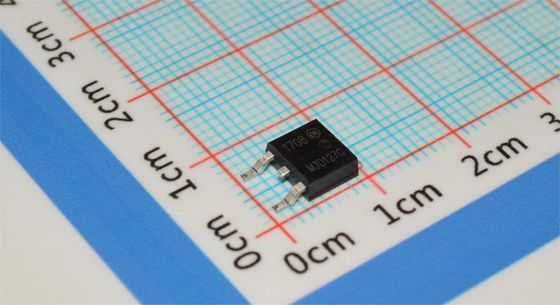

MJD127G 5A 100V PNP Darlington Transistor TO-252 (DPAK) 1V VCE(sat) @ 3A, hFE 1000 min -55°C to +150°C AEC-Q101

MJD127G

andnbsp;

Features

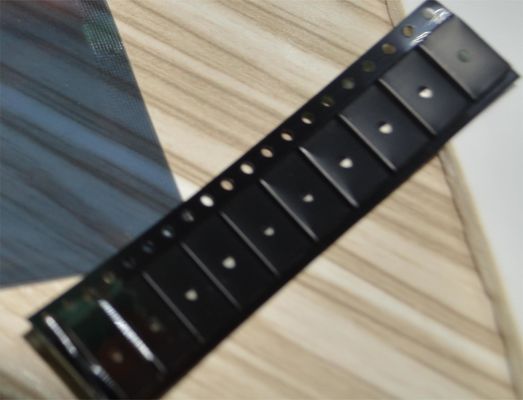

andbull; Lead Formed for Surface Mount Applications in Plastic Sleeves

andbull; Surface Mount Replacements for 2N6040andminus;2N6045 Series, TIP120andminus;TIP122 Series, and TIP125andminus;TIP127 Series

andbull; Monolithic Construction With Builtandminus;in Baseandminus;Emitter Shunt Resistors

andbull; High DC Current Gain: hFE = 2500 (Typ) @ IC = 4.0 Adc

andbull; Epoxy Meets UL 94 Vandminus;0 @ 0.125 in

andbull; ESD Ratings:

andnbsp; andnbsp;anddiams; Human Body Model, 3B andgt; 8000 V

andnbsp; andnbsp;anddiams; Machine Model, C andgt; 400 V

andbull; NJV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AECandminus;Q101 Qualified and PPAP Capable andbull; These Devices are Pbandminus;Free, Halogen Free/BFR Free and are RoHS Compliant

andnbsp;

Application

andnbsp;

andnbsp;

andnbsp;

• Audio power amplifier circuits: Due to its large current handling capability and high voltage withstand capability, it can be used in audio power amplifiers to amplify audio signals and drive loads such as speakers. It can output sufficient power to push the speaker to emit sound, meeting the needs of audio playback.
• Motor drive circuits: It can be used as a switching element in motor drive circuits to control the start, stop, and steering of the motor. For example, in some small DC motor drive systems, the voltage across the motor is controlled by regulating the on-off state of MJD127G, thereby achieving speed regulation and direction control of the motor.
• Power supply voltage regulation circuits: In some linear power supply voltage regulation circuits, it can be used as a regulating transistor. By adjusting the voltage drop between its collector and emitter, the output voltage is stabilized to ensure that the power supply can provide a stable DC voltage to the load.
• Automotive electronic systems: The MJD127G with the NJV prefix complies with the AEC - Q101 standard and has good reliability, making it applicable to various circuits in vehicles, such as window lift motor drives, headlight control circuits, etc.
• Industrial control equipment: It can be used in relay drive circuits in industrial control to control the on-off of relay coils, thereby realizing the control of various industrial equipment, such as contactor control and solenoid valve drive. It can also be used in some low-speed switching quantity control circuits, such as the start-stop control of material conveying equipment in industrial automation production lines.

Information

andnbsp;

andnbsp;

Drawing

andnbsp;
