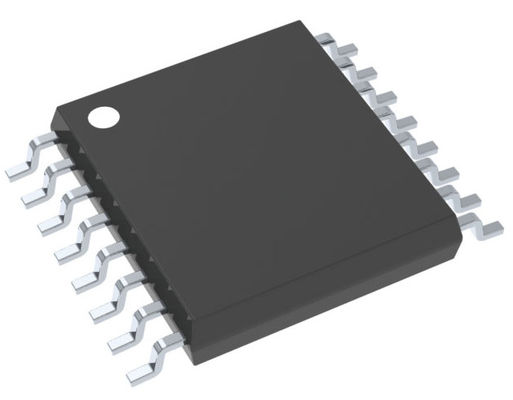

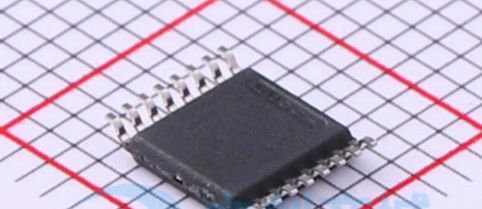

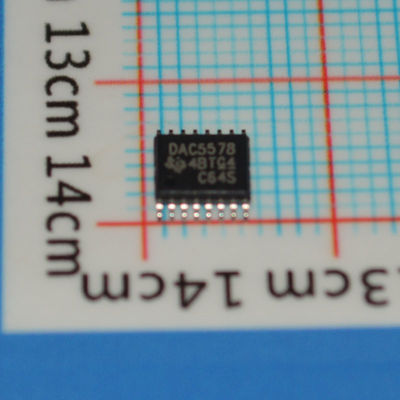

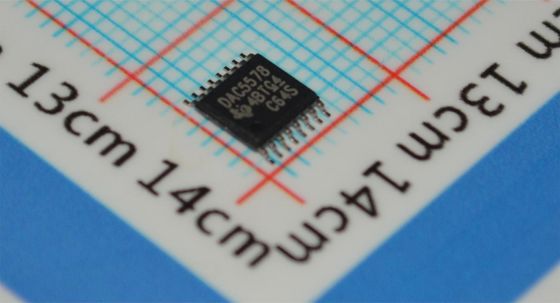

DAC5578SPWR 8-Ch 8-bit DAC I2C Interface 2.7-5.5V, Low Power 0.4mA, ±1LSB INL TSSOP-16 -40°C to +105°C

DAC5578SPWR

andnbsp;

FEATURES

andbull; Relative Accuracy: 23andndash; DAC5578 (8 bit): 0.25LSB INLandndash; DAC6578 (10 bit): 0.5LSB INLandndash; DAC7578 (12 bit): 1LSB INL

andbull; Glitch Energy: 0.15nV-s

andbull; Power-On Reset to Zero Scale or Midscaleandndash; Devices in the TSSOP Package Reset to Zero Scaleandndash; Devices in the QFN Package Reset to Zero Scale or Midscale

andbull; Ultra-Low Power Operation: 0.13mA/ch at 5V

andbull; WidePower-Supply Range: +2.7V to +5.5V

andbull; 2-Wire Serial Interface ( I2Candtrade; compatible)

andbull; Temperature Range:andndash;40anddeg;C to +125anddeg;C

andnbsp;

DESCRIPTION

The DAC5578 (8 bit), DAC6578 (10 bit), and DAC7578 (12 bit) are low-power, voltage-output, octal channel, digital-to-analog converters (DACs). The devices are monolithic, provide good linearity,and minimize undesired code-to-code transient voltages (glitch).

The devices use a versatile, 2-wire serial interface that is I2C-compatible and operates at clock rates of up to 3.4MHz. Multiple devices can share the same bus.

The devices incorporate a power-on-reset (POR) circuit that ensures the DAC output powers up to zero-scale or midscale until a valid code is written to the device. These devices also contain a power-down feature, accessed through the serial interface, that reduces the current consumption of the devices to typically 0.42andmu;A at 5V. Power consumption is typically 2.32mW at 3V, reducing to 0.68andmu;W in power-down mode. The low power consumption and small footprint make these devices ideal for portable, battery-operated equipment.
