ATTINY24A-MUR 20MHz 8-bit MCU 2KB Flash 128B SRAM 12 I/O Pins UART/SPI 1.8-5.5V -40°C to +85°C

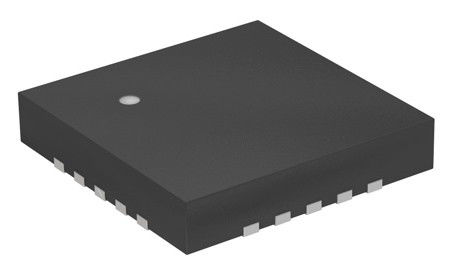

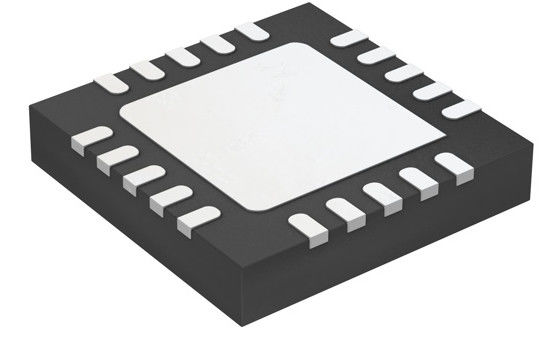

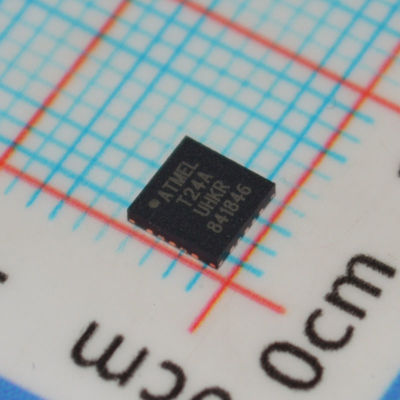

ATTINY24A-MUR

andnbsp;

Features

andbull; High Performance, Low Power AVRandreg; 8-bit Microcontroller

andbull; Advanced RISC Architectureandndash; 120 Powerful Instructions andndash; Most Single Clock Cycle Executionandndash; 32 x 8 General Purpose Working Registersandndash; Fully Static Operation

andbull; High Endurance, Non-volatile Memory Segmentsandndash; 2K/4K/8K Bytes of In-System, Self-programmable Flash Program Memory

andbull; Endurance: 10,000 Write/Erase Cyclesandndash; 128/256/512 Bytes of In-System Programmable EEPROM

andbull; Endurance: 100,000 Write/Erase Cyclesandndash; 128/256/512 Bytes of Internal SRAMandndash; Data Retention: 20 years at 85anddeg;C / 100 years at 25anddeg;Candndash; Programming Lock for Self-programming Flash andamp; EEPROM Data Security

andbull; Peripheral Featuresandndash; One 8-bit and One 16-bit Timer/Counter with Two PWM Channels, Eachandndash; 10-bit ADC

andbull; 8 Single-ended Channels

andbull; 12 Differential ADC Channel Pairs with Programmable Gain (1x / 20x)andndash; Programmable Watchdog Timer with Separate On-chip Oscillatorandndash; On-chip Analog Comparatorandndash; Universal Serial Interface

andbull; Special Microcontroller Featuresandndash; debugWIRE On-chip Debug Systemandndash; In-System Programmable via SPI Portandndash; Internal and External Interrupt Sources

andbull; Pin Change Interrupt on 12 Pinsandndash; Low Power Idle, ADC Noise Reduction, Standby and Power-down Modesandndash; Enhanced Power-on Reset Circuitandndash; Programmable Brown-out Detection Circuit with Software Disable Functionandndash; Internal Calibrated Oscillatorandndash; On-chip Temperature Sensor

andbull; I/O and Packagesandndash; Available in 20-pin QFN/MLF/VQFN, 14-pin SOIC, 14-pin PDIP and 15-ball UFBGAandndash; Twelve Programmable I/O Lines

andbull; Operating Voltage:andndash; 1.8 andndash; 5.5V

andbull; Speed Grade:andndash; 0 andndash; 4 MHz @ 1.8 andndash; 5.5Vandndash; 0 andndash; 10 MHz @ 2.7 andndash; 5.5Vandndash; 0 andndash; 20 MHz @ 4.5 andndash; 5.5V

andbull; Industrial Temperature Range: -40anddeg;C to +85anddeg;C

andbull; Low Power Consumptionandndash; Active Mode:

andbull; 210 andmicro;A at 1.8V and 1 MHzandndash; Idle Mode:

andbull; 33 andmicro;A at 1.8V and 1 MHzandndash; Power-down Mode:

andbull; 0.1 andmicro;A at 1.8V and 25anddeg;C
