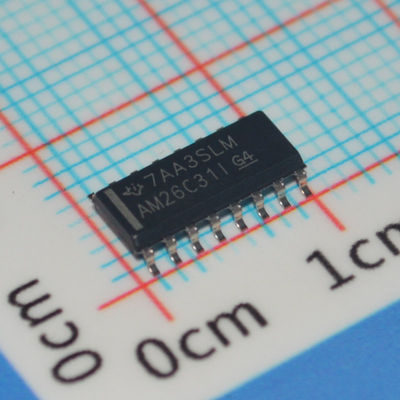

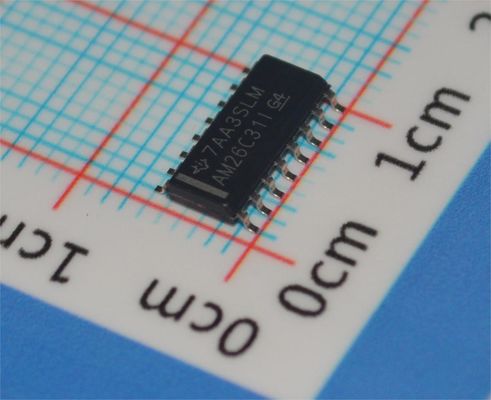

AM26C31IDR
andnbsp;
Features
andbull; Meets or exceeds the requirements of TIA/ EIA-422-B and ITU recommendation V.11
andbull; Low power, ICC = 100andmu;A typical
andbull; Operates from a single 5V supply
andbull; High speed, tPLH = tPHL = 7ns typical
andbull; Low pulse distortion, tsk(p) = 0.5ns typical
andbull; High output impedance in power-off conditions
andbull; Improved replacement for AM26LS31 device
andbull; Available in Q-temp automotiveandndash; High-reliability automotive applicationsandndash; Configuration control and print supportandndash; Qualification to automotive standards
andbull; On products compliant to MIL-PRF-38535, all parameters are tested unless otherwise noted. On all other products, production processing does not necessarily include testing of all parameters.
Applications
andbull; Chemical and gas sensors
andbull; Field transmitters: temperature sensors and pressure sensors
andbull; Military: radars and sonars
andbull; Motor control: brushless DC and brushed DC
andbull; Military and avionics imaging
andbull; Temperature sensors and controllers using modbus Output 1 0.1 P Output 2
Description
The AM26C31 device is a differential line driver with complementary outputs, designed to meet the requirements of TIA/EIA-422-B and ITU (formerly CCITT). The 3-state outputs have high-current capability for driving balanced lines, such as twisted pair or parallel-wire transmission lines, and they provide the high-impedance state in the power-off condition. The enable functions are common to all four drivers and offer the choice of an active-high (G) or active-low ( G) enable input. BiCMOS circuitry reduces power consumption without sacrificing speed. The AM26C31C device is characterized for operation from 0anddeg;C to 70anddeg;C, the AM26C31I device is characterized for operation from andndash;40anddeg;C to +85anddeg;C, the AM26C31Q device is characterized for operation over the automotive temperature range of andndash;40anddeg;C to +125anddeg;C, and the AM26C31M device is characterized for operation over the full military temperature range of andndash;55anddeg;C to +125anddeg;C.
andnbsp;
Information
|
Category
|
|
|
|
Manufacturer
|
|
|
|
Series
|
|
|
|
Packaging
|
Tape andamp; Reel (TR)andnbsp;
Cut Tape (CTandnbsp;)
Digi-Reelandnbsp;
|
|
|
Part Status
|
|
|
|
Type
|
|
|
|
Protocol
|
|
|
|
Number of Drivers/Receivers
|
|
|
|
Duplex
|
|
|
|
Data Rate
|
|
|
|
Voltage - Supply
|
|
|
|
Operating Temperature
|
|
|
|
Mounting Type
|
|
|
|
Package / Case
|

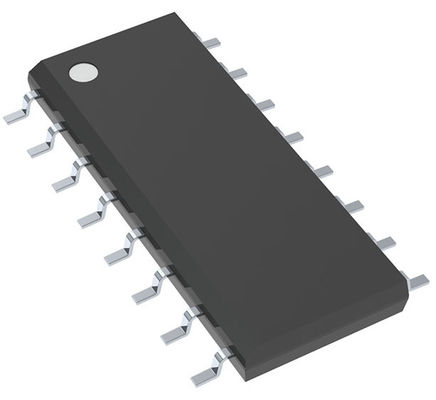

16-SOIC (0.154andquot;, 3.90mm Width)
|
|
|
Supplier Device Package
|
|
|
|
Base Product Number
|
|
andnbsp;
Drawing
