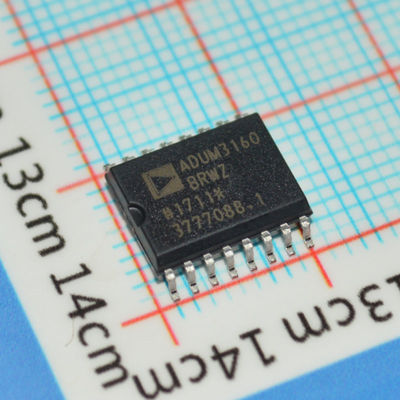

ADUM3160BRWZ 2.5kV USB Isolator Full/Low Speed 16Mbps 3V-5.5V SOIC-16 -40°C to +105°C

ADUM3160BRWZ

FEATURES

USB 2.0 compatible

Low and full speed data rate: 1.5 Mbps and 12 Mbps

Bidirectional communication

4.5 V to 5.5 V VBUS operation

7 mA maximum upstream supply current at 1.5 Mbps

8 mA maximum upstream supply current at 12 Mbps

2.3 mA maximum upstream idle current

Upstream short-circuit protection

Class 3A contact ESD performance per ANSI/ESD STM5.1-2007

High temperature operation: 105°C

High common-mode transient immunity: >25 kV/μs

16-lead SOIC wide body package

RoHS compliant

Qualified for automotive applications

GENERAL DESCRIPTION

The ADuM31601 is a USB port isolator based on Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic air core transformer technology, this isolation component provides outstanding performance characteristics and is easily integrated with low and full speed USB-compatible peripheral devices.

Many microcontrollers implement USB so that it presents only the D+ and D− lines to external pins. This is desirable in many cases because it minimizes external components and simplifies the design; however, this presents particular challenges when isolation is required. Because the USB lines must switch between actively driving D+/D− and allowing external resistors to set the state of the bus, the ADuM3160 provides mechanisms for detecting the direction of data flow and control over the state of the output buffers. Data direction is determined on a packet-by-packet basis.
