ADT6501SRJZP085RL7
FEATURES
±0.5°C (typical) threshold accuracy
Factory-set trip points from
−45°C to +15°C in 10°C increments
+35°C to +115°C in 10°C increments
No external components required
Maximum temperature of 125°C
Open-drain output (ADT6501/ADT6503)
Push-pull output (ADT6502/ADT6504)
Pin-selectable hysteresis of 2°C and 10°C
Supply current of 30 µA (typical)

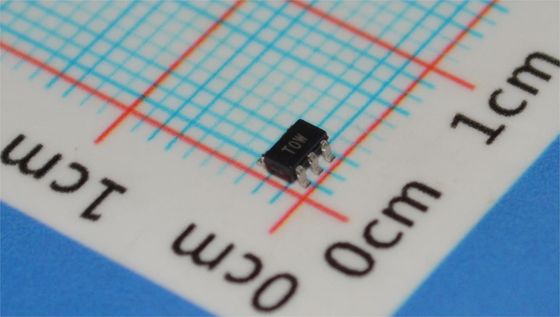

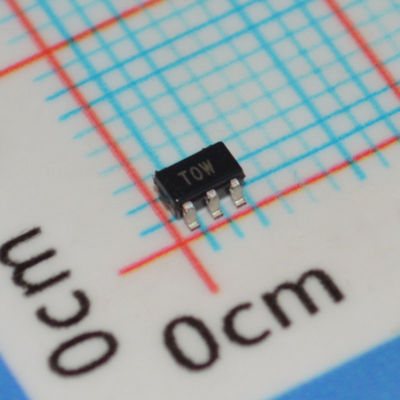

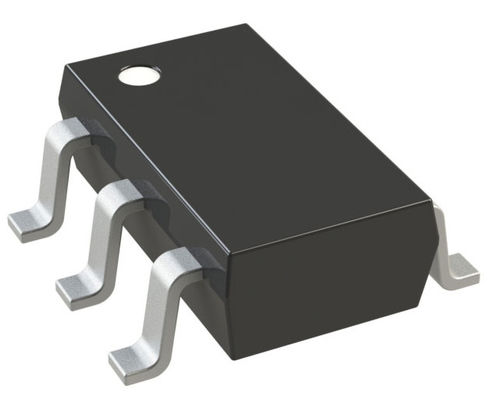

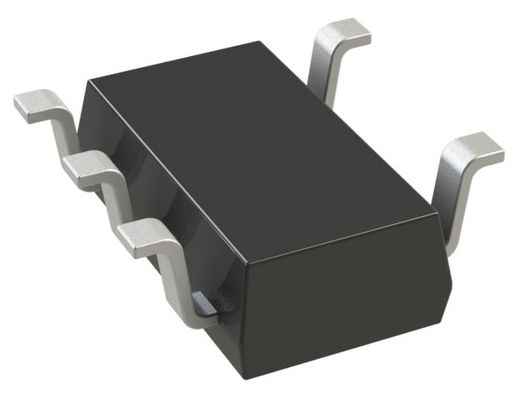

Space-saving, 5-lead SOT-23 package
APPLICATIONS
Medical equipment
Automotive
Cell phones
Hard disk drives
Personal computers
Electronic test equipment
Domestic appliances
Process control
GENERAL DESCRIPTION
The ADT6501/ADT6502/ADT6503/ADT6504 are trip point temperature switches available in a 5-lead SOT-23 package. Each part contains an internal band gap temperature sensor for local temperature sensing. When the temperature crosses the trip point setting, the logic output is activated. The ADT6501/ ADT6503 logic output is active low and open-drain. The ADT6502/ADT6504 logic output is active high and push-pull. The temperature is digitized to a resolution of 0.125°C (11-bit). The factory trip point settings are 10°C apart starting from −45°C to +15°C for the cold threshold models and from +35°C to +115°C for the hot threshold models. These devices require no external components and typically consume 30 μA supply current. Hysteresis is pin-selectable at 2°C and 10°C. The temperature switch is specified to operate over the supply range of 2.7 V to 5.5 V. The ADT6501 and ADT6502 are used for monitoring temperatures from +35°C to +115°C only. Therefore, the logic output pin becomes active when the temperature goes higher than the selected trip point temperature.
The ADT6503 and ADT6504 are used for monitoring tempera tures from −45°C to +15°C only. Therefore, the logic output pin becomes active when the temperature goes lower than the selected trip point temperature.
Information
|
Category
|
|
|
|
Manufacturer
|
|
|
|
Series
|
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT )
Digi-Reel
|
|
|
Part Status
|
|
|
|
Trip Temperature Threshold
|
|
|
|
Switching Temperature
|
|
|
|
Accuracy
|
|
|
|
Current - Output (Max)
|
|
|
|
Output Type
|
|
|
|
Output
|
|
|
|
Output Function
|
|
|
|
Selectable Hysteresis
|
|
|
|
Features
|
|
|
|
Voltage - Supply
|
|
|
|
Current - Supply
|
|
|
|
Operating Temperature
|
|
|
|
Mounting Type
|
|
|
|
Package / Case
|
|
|
|
Supplier Device Package
|
|
|
|
Base Product Number
|
|
Drawing
