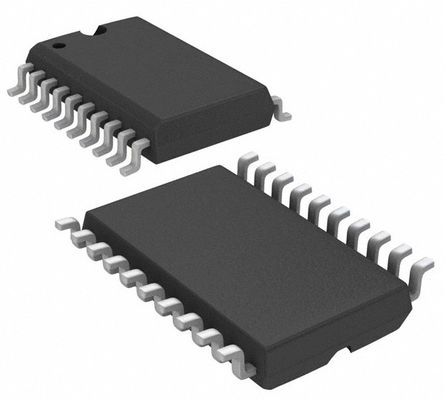

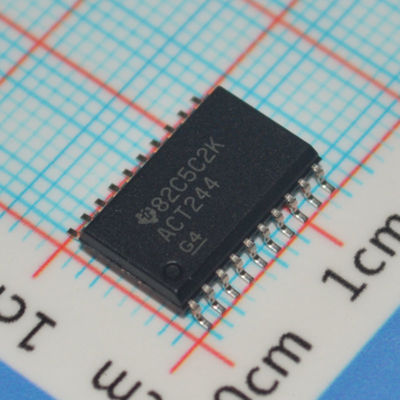

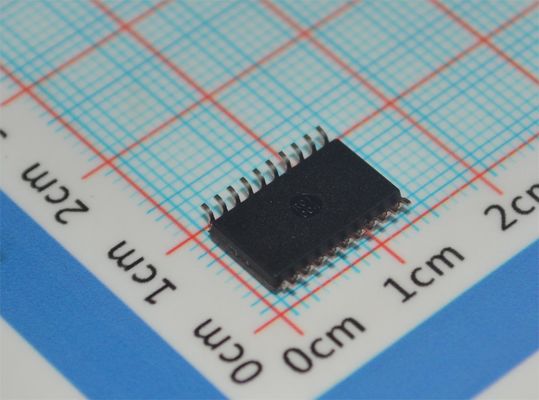

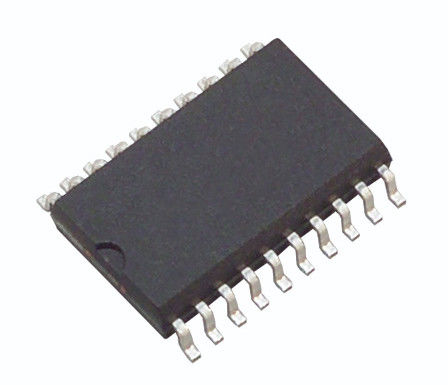

SN74ACT244DWR 3.3V/5V Octal Buffer 24mA Drive SOIC-20 4.5ns Speed TTL-Compatible -40°C to +85°C

SN74ACT244DWR

andnbsp;

Features

andbull; 4.5V to 5.5V VCC operation

andbull; Inputs accept voltages to 5.5V

andbull; Maximum tpd of 9.5ns at 5V

andbull; Inputs are TTL-compatible

andbull; On products compliant to MIL-PRF-38535, all parameters are tested unless otherwise noted. On all other products, production processing does not necessarily include testing of all parameters.

andnbsp;

Description

These SNx4ACT244 octal buffers and drivers are designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The SNx4ACT244 devices are organized as two 4 bit buffers and drivers with separate output-enable ( OE) inputs. When OE is low, the device passes non inverted data from the A inputs to the Y outputs. When OE is high, the outputs are in the high impedance state.

andnbsp;

Information

andnbsp;

andnbsp;

andnbsp;

Drawing
