STM8AF5288TC (Electronic Components IC Chips Integrated Circuits IC)

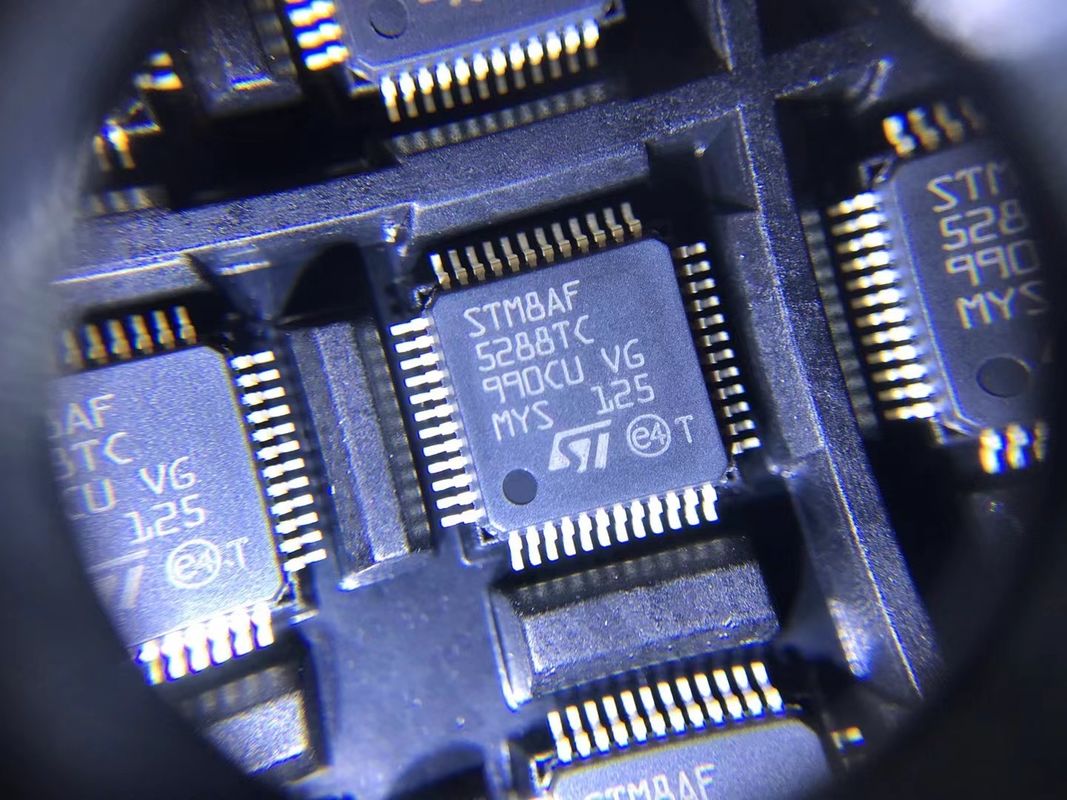

STM8AF5288TC

Core Functions

1. Automotive-Grade Processing Power
   • STM8 Core: Operates at up to 24 MHz, delivering efficient instruction execution for real-time control tasks.
   • Memory: 128 KB Flash for program storage and 6 KB RAM for data handling, supporting complex algorithms.
   • Automotive Compliance: Meets AEC-Q100 Grade 1 standards (-40°C to +125°C), ensuring reliability in harsh environments.
2. Communication Interfaces
   • CAN 2.0B: Enables high-speed communication with other vehicle systems (e.g., engine control units, infotainment).
   • LIN 2.2: Supports low-cost serial communication for body electronics (e.g., door modules, sensors).
   • SPI/I2C/UART: Facilitates connectivity with external devices like sensors, displays, or actuators.
3. Precision Sensing and Control
   • 10-bit ADC: Converts analog signals from sensors (temperature, pressure, etc.) into digital data with up to 16 input channels.
   • PWM Outputs: Controls motors, solenoids, or LED lighting with adjustable pulse widths.
   • Timers: Multiple 16-bit timers manage timing-critical tasks (e.g., engine ignition, pump control).
4. Safety and Reliability
   • CRC Unit: Detects data corruption in critical systems.
   • Watchdog Timer: Resets the MCU if software malfunctions occur, preventing system failures.
   • EEPROM Endurance: 100,000 write cycles for long-term data storage (e.g., fault codes, calibration values).
5. Low-Power Operation
   • Sleep Modes: Reduces power consumption during idle periods, extending battery life in electric vehicles.
   • Wake-Up Capabilities: Quickly resumes operation via external interrupts (e.g., sensor triggers).

Key Applications

1. Body Control Modules (BCM)
   • Manages power windows, door locks, lighting, and climate control systems.
   • Coordinates LIN/CAN network communication between subsystems.
2. Powertrain and Chassis Control
   • Controls fuel injection timing, ignition systems, or electric power steering.
   • Processes sensor data for anti-lock braking systems (ABS) or stability control.
3. Sensor Interface Units
   • Converts raw sensor data (temperature, pressure, position) into actionable signals.
   • Performs signal conditioning and filtering for accurate measurements.
4. LED Lighting Control
   • Drives adaptive headlight systems or interior ambient lighting with PWM dimming.
   • Monitors bulb status and detects faults via current sensing.
5. Battery Management Systems (BMS)
   • Monitors battery voltage, temperature, and state of charge in electric vehicles.
   • Balances cell voltages to extend battery life.

Technical Advantages

• Automotive-Qualified: Designed for high-reliability applications with extended temperature ranges and EMI resistance.
• Integrated Peripherals: Reduces external component count, lowering system cost and board space.
• Scalable Performance: Suits both entry-level and mid-range automotive functions.
• Development Support: Comprehensive toolchain with STM8Cube HAL, debuggers, and IDE integration.
