Lm2576 Lm2576t-5.0V/3.3V/12V/Adj New Original Integrated Circuit Lm2576t IC Chip Electronic Components

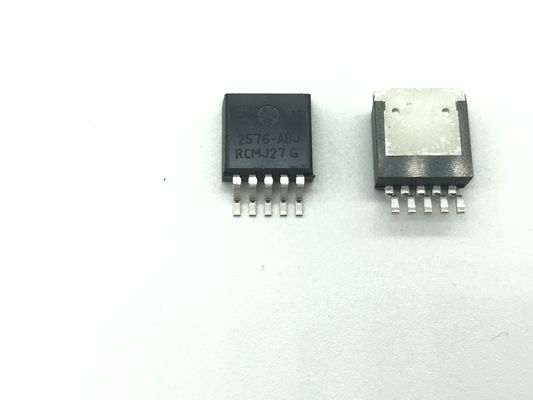

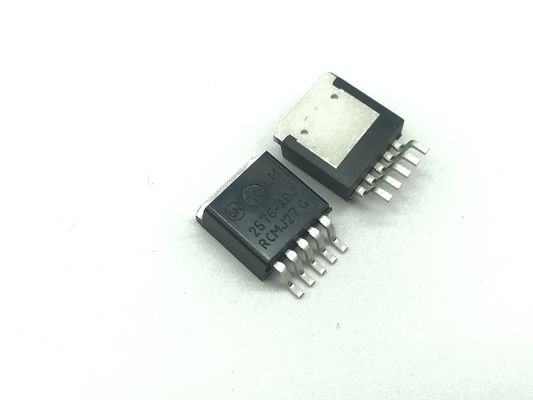

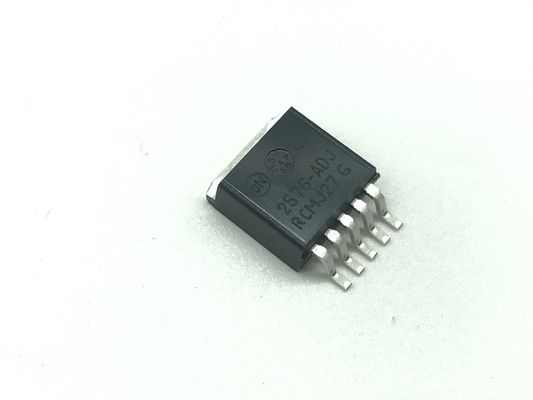

LM2576-ADJ

• 3.3V, 5.0V, 12V, 15V, and Adjustable Output Versions • Adjustable Version Output Voltage Range, 1.23V to 37V ±4% maximum over line and load conditions • Guaranteed 3.0A Output Current • Wide Input Voltage Range: Up to 40V • Requires Only 4 External Components • 52kHz Fixed Frequency Internal Oscillator • TTL Shutdown Capability, Low Power Standby Mode • High Efficiency • Uses Readily Available Standard Inductors • Thermal Shutdown and Current Limit Protection • Moisture Sensitivity Level 3 for SMD type packages APPLICATIONS • Simple High-Efficiency Step-Down (Buck) Regulator • Efficient Pre-Regulator for Linear Regulators • On-Card Switching Regulators • Positive to Negative Converter (Buck-Boost) • Negative Boost Converters • Power Supply for Battery Chargers DESCRIPTION The LM2576 series of regulators are monolithic integrated circuits ideally suited for easy and convenient design of a step-down switching regulator (buck converter).

All circuits of this series are capable of driving a 3.0A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5.0V, 12V, 15V, and an adjustable output version. These regulators were designed to minimize the number of external components to simplify the power supply design.

Standard series of inductors optimized for use with the LM2576 are offered by several different inductor manufacturers. The LM2576 features include a ±4% tolerance on output voltage within specified input voltages and output load conditions, and ±10% on the oscillator frequency. External shutdown is included, featuring 50µA (typical) standby current. The output switch includes cycle-by-cycle current limiting, as well as thermal shutdown for full protection under fault conditions.

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
