MPM6010GQV-AEC1-Z QFN New And Original One-stop Service Bom Ic in Stock Other IC Electronic Components Micro Chip

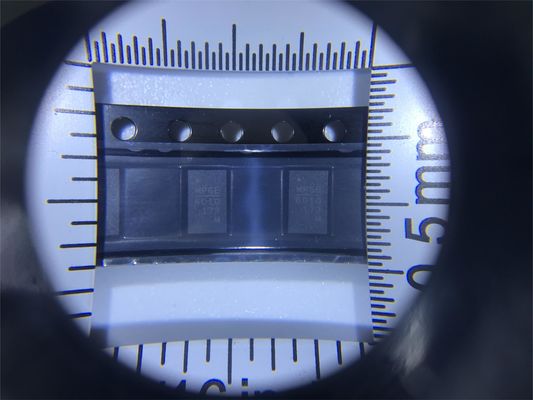

MPM6010GQV-AEC1-Z

Automotive-Grade Power Solution

• AEC-Q100 Qualified: Meets automotive-grade reliability standards (Grade 1: -40anddeg;C to +125anddeg;C ambient temperature).
• PPAP Capable: Supports Production Part Approval Process (PPAP) for automotive manufacturing.
• ISO 26262 Ready: Designed with functional safety features for ASIL-B compliance (when properly implemented).

High-Efficiency Buck Converter

• Wide Input Voltage Range: Operates from 4.5 V to 42 V (withstands 60 V load dump), suitable for automotive battery systems.
• Adjustable Output Voltage: Configurable from 0.8 V to 5.5 V with andplusmn;1% accuracy.
• High Efficiency: Up to 95% efficiency with low RDS(ON) internal switches (HS: 13 mandOmega;, LS: 8 mandOmega;).
• Synchronous Rectification: Reduces power loss compared to asynchronous designs.

Flexible Control andamp; Protection

• Adjustable Switching Frequency: 200 kHz to 2.2 MHz (synchronizable), allowing optimization for noise, efficiency, or component size.
• Multiple Modes:
  • PWM Mode: Fixed-frequency operation for predictable noise profiles.
  • PFM Mode: Improved light-load efficiency for reduced standby power.
  • Forced PWM Mode: Eliminates frequency modulation for sensitive applications.
• Comprehensive Protection Features:
  • Overcurrent Protection (OCP): Cycle-by-cycle current limiting.
  • Thermal Shutdown: Protects against overheating.
  • Under-Voltage Lockout (UVLO): Ensures stable operation within voltage limits.
  • Overvoltage Protection (OVP): Safeguards against output voltage spikes.

Compact Package andamp; Thermal Performance

• QFN-20 (4 mm andtimes; 4 mm) Package: Space-efficient design with exposed thermal pad.
• Excellent Thermal Resistance: Low andtheta;JA for effective heat dissipation in automotive environments.

Automotive-Specific Features

• Cold-Crank Operation: Maintains regulation during low-battery start conditions.
• EMI Reduction: Spread-spectrum frequency modulation and soft-switching options.
• Pre-Biased Load Startup: Handles startup with pre-charged output capacitors.

Applications

• Automotive Electronics: Infotainment systems, ADAS sensors, telematics, and body control modules.
• Industrial andamp; Telecom: High-reliability systems requiring wide input voltage tolerance.
• Battery-Powered Devices: Backup power systems and portable equipment.

• Packaging	Tape andamp; Reel (TRandnbsp;
  Part Status	Active
  Type	Constant Current
  Topology	Buck
  Number of Outputs	1
  Voltage - Input (Min)	4V
  Voltage - Input (Max)	36V
  Voltage - Output	-
  Current - Output (Max)	1.5A
  Dimming	PWM
  Features	OCP, OTP, SCP, UVLO
  Operating Temperature	-40anddeg;C ~ 125anddeg;C
  Efficiency	-
  Grade	Automotive
  Qualification	AEC-Q100
  Mounting Type	Surface Mount
  Package / Case	17-PowerLQFN Module
  Size / Dimension	0.12andquot; L x 0.20andquot; W x 0.06andquot; H (3.0mm x 5.0mm x 1.7mm)
  Approval Agency	-
  Base Product Number	MPM6010

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active andamp; passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer andamp; Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal andamp; Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
