Product Details:
Payment & Shipping Terms:
|
| Product Name: | 4G Module | Network Type: | WCDMA / GSM / EDGE |
|---|---|---|---|
| Supply Voltage Range: | 3.135V~4.4V (3.3 V Recommended) | Temp Range: | -40°C To +85°C |
| Size: | 42 Mm × 30 Mm × 2.3 Mm | Form Factor: | PCIE |
| Highlight: | HUA-WEI ME936 4G LTE Module,WCDMA 4G LTE Module,EDGE NGFF 4g lte sim module |
||
ME936
HUA-WEI ME936 module 4G LTE WCDMA/HSDPA/HSUPA/HSPA+ GPRS/EDGE NGFF Modules
Hua Wei ME936 is an LTE module 4G NGFF interface, LTE support (FDD) B1 / B2 / B3 / B4 / B5 / B7 / B8 / B13 / B17 / B20, penta-band
DC-HSPA + / HSPA + / HSPA / WCDMA for North American and European network covering low power consumption, global navigation
satellite systems (GNSS), and North American and European carrier certifications, which makes it easier and more flexible, and
integration into the terminals. In addition, the ME936 support NGFF characteristics to optimize performance, power consumption,
and ease of use. ME936 is an ideal choice for the Ultrabook, laptop, tablet, and so on. D.
Features:
Brand: Huawei
Model: ME936
Operating range:
LTE: BI / B2 / B3 / B4 / B5 / B7 / B8 / B13 / B17 / B20
WCDMA / HSDPA / HSUPA / HSPA +: 850 MHz / 900 MHz / 1700 MHz
(AWS) / 1900 MHz / 2100 MHz
GPRS / EDGE: 850 MHz / 900 MHz / 1800 MHz / 1900 MHz
GPS / GLONASS: L1
Data transfer rate:
WCDMA PS: UL (384 kbps) / DL (384 kb)
DC-HSPA +: UL (11 Mbps) / DL (42 Mbps)
LTE FDD: UL (50 Mbps) / DL (100 Mbps) bandwidth @ 20 M (CAT3)
GPRS / EDGE multi-slot class 12
GPRS data services: 85.6 kbit / UL / DL 107 kbit / s
EDGE: 236.8 kbit / UL / DL 296 kbit / s
HSPA +: 5.76 Mbps UL / DL 21.6 Mbit / s
Interface: NGFF: Supply voltage range: 3.135 V ~ 4.4 (3.3 recommended)
GPS / GLONASS GNSS: Autonomous GPS, A-GPS, GPS XTRA, GLONASS
Features:
Hot-swappable SIM
IPV6
BodySAR
Ultrabook function support (LAW, wi-fi unloading, DPTF)
MIN USB (Link Power Management)
tunable Antenna
MO and MT support
PDU format support
point-to-point base station and
The interface antenna
Main and auxiliary (supporting Diversity and GPS at the same time)
MM4829-2702RA4 for MURATA or other equivalent parts
Sms-new signal message.
SMS Management: read SMS, write SMS, send SMS, delete
SMS and SMS list
MO and MT support
point-to-point
operating system
Windows 7/8 / 8.1 / Android 4.0 or later / Chrome OS
physical Features
Dimensions (L × W × H): 42 mm × 30 mm × 2.3 mm
Weight: about 6 grams
| Power Supply | Supply voltage range | 3.135V~4.4V (3.3 V recommended) |
| Temp Range | Normal operation: | -10°C to +55°C |
| Extended operation: | -20°C to +70°C | |
| Storage: | -40°C to +85°C | |
| Data Transfer Rate | WCDMA PS: | UL (384 kbps)/ DL (384 kbps) |
| DC-HSPA+ : | UL (11 Mbps)/ DL (42 Mbps) | |
| LTE FDD: | UL (50 Mbps)/ DL (100 Mbps) @Bandwidth 20M (CAT3) | |
| GPRS/EDGE: | Multi-slot Class 12 |

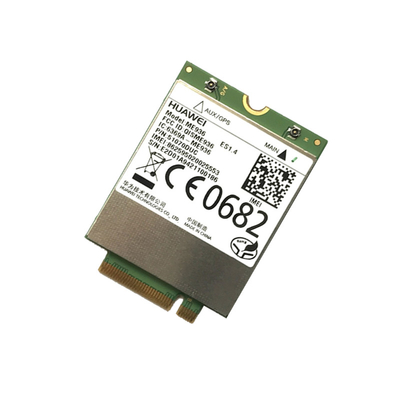

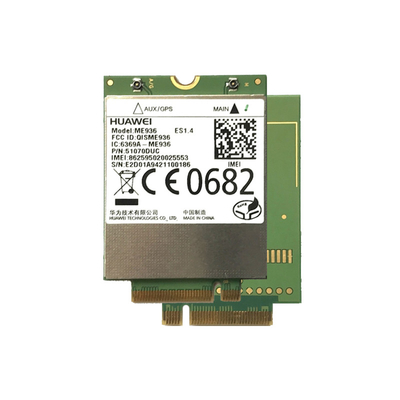

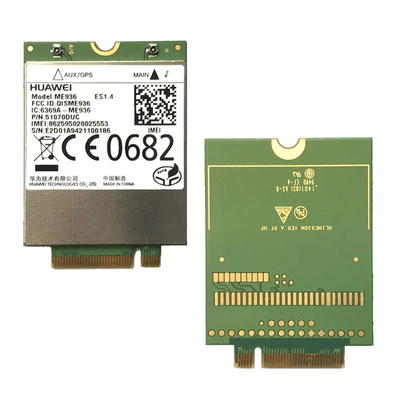

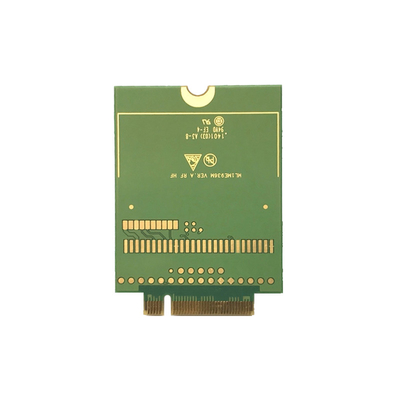

Module show:
