IC DAC 16BIT A-OUT 28SSOP integrated circuit parts AD5544ARSZ

China TOP Electronic Industry Co., Ltd. certification
China TOP Electronic Industry Co., Ltd. certification
Excellent product , good quality , competitive price , professional service , with 10 years cooperation , now we become good friends each other.

—— Ronald-from Boilvia

It is very glad to find TOP as our partner in China , here we can get the best Product and serice , they always put the customer at the first place.

—— Carlos-from Argentina

I am very satisfied with all your service. It is really a good team! with your one-stop solution offer , help us to save much time and money

—— Giancarlo-from Italy

I'm Online Chat Now

IC DAC 16BIT A-OUT 28SSOP integrated circuit parts AD5544ARSZ

IC DAC 16BIT A-OUT 28SSOP  integrated circuit parts  AD5544ARSZ
IC DAC 16BIT A-OUT 28SSOP  integrated circuit parts  AD5544ARSZ IC DAC 16BIT A-OUT 28SSOP  integrated circuit parts  AD5544ARSZ IC DAC 16BIT A-OUT 28SSOP  integrated circuit parts  AD5544ARSZ IC DAC 16BIT A-OUT 28SSOP  integrated circuit parts  AD5544ARSZ

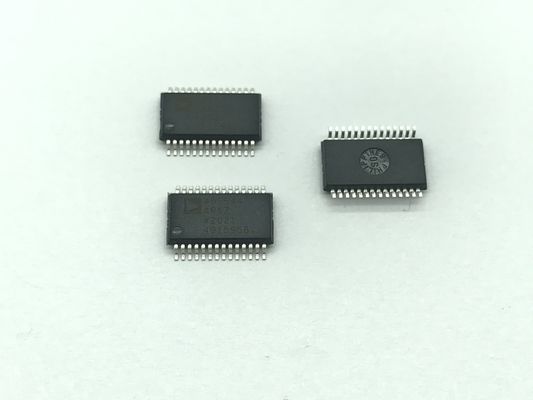

Large Image :  IC DAC 16BIT A-OUT 28SSOP integrated circuit parts AD5544ARSZ

Product Details:
Place of Origin: USA
Brand Name: AD
Certification: CE,ROHS
Model Number: AD5544ARSZ
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 150$
Packaging Details: 47pcs/tube, 500pcs/reel
Delivery Time: 2-4 working days after receiving the payment
Payment Terms: T/T, Western Union,paypal
Supply Ability: 50000pcs/month
Detailed Product Description
Program Memory Type: FLASH EEPROM Size: 8-Bit
Voltage - Supply (Vcc/Vdd): 1.8V ~ 5.5V Operating Temperature: -40°C ~ 125°C
Speed: 20 MHZ Number Of I/O: 32

ATMEGA328-PU



GENERAL DESCRIPTION

The AD5544/AD5554 quad, 16-/14-bit, current output, digital

to-analog converters (DACs) are designed to operate from a

2.7 V to 5.5 V supply range.

The applied external reference input voltage (VREFx) determines

the full-scale output current. Integrated feedback resistors (RFB)

provide temperature-tracking, full-scale voltage outputs when

combined with an external I-to-V precision amplifier.

A double-buffered serial data interface offers high speed, 3-wire,

SPI- and microcontroller-compatible inputs using serial data in

(SDI), a chip select (CS), and clock (CLK) signals. In addition,

a serial data out pin (SDO) allows for daisy-chaining when multiple

packages are used. A common, level-sensitive, load DAC strobe

(LDAC) input allows the simultaneous update of all DAC outputs

from previously loaded input registers. Additionally, an internal

power-on reset forces the output voltage to 0 at system turn-on.

The MSB pin allows system reset assertion (RS) to force all registers

to zero code when MSB = 0 or to half-scale code when MSB = 1.



FEATURES

AD5544: 16-bit resolution INL of ±1 LSB (B Grade)

AD5554: 14-bit resolution INL of ±0.5 LSB (B Grade)

2 mA full-scale current ± 20%, with VREF = ±10 V , 0.9 µs settling time to ±0.1%

12 MHz multiplying bandwidth ,Midscale glitch of −1 nV-sec

Midscale or zero-scale reset ,4 separate, 4-quadrant multiplying reference inputs

SPI-compatible, 3-wire interface ,Double-buffered registers enable

Simultaneous multichannel change ,Internal power-on reset

Temperature range: −40°C to +125°C

Compact 28-lead SSOP and 32-lead LFCSP



Product Attributes

Mfr Microchip Technology
Series AVR® ATmega
Package Tube
Part Status Active
Core Size 8-Bit
Speed 20MHz
Connectivity IC, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Reset Active High/Active Low
Program Memory Size 32KB (16K x 16)
Voltage - Supply (Vcc/Vdd) 1.8V ~ 5.5V
Operating Temperature -40°C ~ 85°C (TA)
Program Memory Type FLASH
Package / Case 28-DIP (0.300", 7.62mm)
Supplier Device Package 28-PDIP
Number of Voltages Monitored 23



APPLICATIONS

Automatic test equipment

Instrumentation

Digitally controlled calibration



FUNCTIONAL BLOCK DIAGRAM
