Product Details:
Payment & Shipping Terms:
|
| Name: | 3G Antenna | Frequency (MHz): | 850/900/1800/1900/2100 |
|---|---|---|---|
| VSWR: | 1:1.5 | Gain(dBi): | 2 |
| Max Input Power(W): | 60 | Input Impedance(Ω): | 50 |
| Polarization: | Vertical | Antenna Size(mm): | 100(L) |
| High Light: | 2100MHz 3g outdoor antenna,850MHz 3g lte antenna |
||

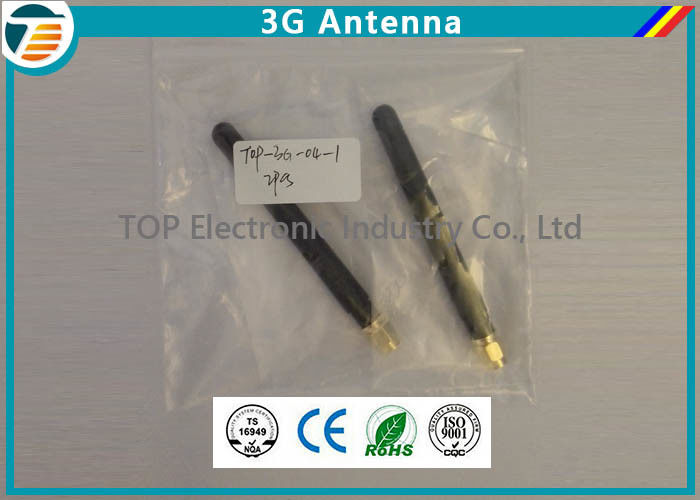

3G Rubber duck Antenna With SMA RF coaxial connector, Straight or right angle connector TOP-3G-04 antenna
2 types :
TOP-3G-04 : D8*108mm
TOP-3G-04-1 : D9.2*87mm
Description :
2G 3G 850/900/1800/1900mhz rubber duck antenna with SMA plug
Frequency (MHz):850/900/1800/1900/2100
VSWR:1:1.5
Gain(dBi):2
Max Input power(W):60
Input Impedance(Ω):50
Polarization :Vertical
Antenna Size(mm):100(L)
Connector :SMB
Mounting :Direct
Housing:Black
Direction:Omni
Operating Temperature :-45℃ to+75℃
Specification
| Item | Specifications | |
| Antenna | Frequency Range | 850/900/1800/1900/2100MHz |
| Polarization | Vertical | |
| Gain | 2.0dBi(Zenith) | |
| V.S.W.R | ＜2.0 | |
| Impendance | 50Ω | |
| Mechanical | Cable | NO |
| Connector | SMA,SMB,TNC,FME etc | |
| Mounting Method | Connector | |
| Environmental | Operating Temperature | -45℃~+75℃ |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant | |
Application :
This antennas can be used for Alarm Systems, Traffic Control, Police, Fire, EMS, Medical, IMS, Homeland Security, & Disaster Response, Vehicles, Marine, Aviation, Automated Teller Machines (ATMs), Point-of-Sale (POS), Kiosks, Vending Machines, Gaming Machines, Digital Signage, and so on.
Advantages:
Our antenna with the highest efficiency, widest spectrum, highest quality, and best price.
Drawing:
Pictures
Our Antenna :
---Powerful R&D team
---Wonderful design solution
---Perfect after-sales service
---Strict quality testing
---Rich cooperation experiences with Communication product manufactures
---Competitive price
FAQ
1. What's the Warranty of the Products?
Answer: In general, all goods with 12 month-warranty after the shipments .
2. How about the defective rate ?
Answer: Less than 1%.
3. Where can customers get the Product Specification and other datasheets?
Answer: we will send them via email once get the request from the customers.
