|Package:||MINI PCIE||Band Number:||B13,B17,B5,B4,B25,B2|
|Chip:||MDM9615||Provide:||LED Driver Output|
Sierra Wireless Module,
m2m wireless module
Sierra wireless 4G LTE CAT-6 module MC7350 end of life B13,B17,B5,B4,B25,B2 module
Supported RF Bands
The MC7350 is based on Qualcomm’s MDM9615 baseband processor.
The following table enumerates the bands and technologies supported by the MC7350 module.
Table 1. Supported RF Bands
|CDMA BC0 (Cellular 800 MHz)||CDMA IS-2000||3G diversity support|
|Up to 153 kbps, simultaneous forward and reverse channel|
|CDMA BC1(PCS 1900 MHz)||CDMA IS-856 (1xEV-DO Release A)|
|· Up to 3.1 Mbps forward channel|
|CDMA BC10(Secondary 800 MHz)||· Up to 1.8 Mbps reverse channel|
|Circuit-switched data bearers up to 14.4 kbps|
|LTE Band 4 (AWS 1700/2100 MHz)||HSPA+ rates||MIMO support|
|· Downlink: Up to 42 Mbps (category 24)|
|LTE Band 13 (700 MHz)||· Uplink: Up to 5.76 Mbps (category 7)||MIMO support|
|Circuit-switched data bearers up to 64 kbps|
|LTE Band 25 (1900 MHz G Block)||Category 3||MIMO support|
|· 100 Mbps (20 MHz bandwidth)|
|· 50 Mbps (10 MHz bandwidth)|
|· 50 Mbps (20 MHz bandwidth)|
|· 25 Mbps (10 MHz bandwidth)|

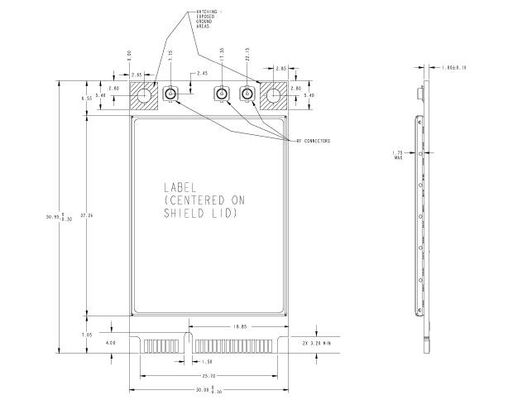

1.2. Physical Features
Small form factor – conforms to type F2 as specified in document  PCI Express Mini Card
Electromechanical Specification Revision 1.2
Operating temperature range:
Class A (3GPP compliant): -30°C to +70°C
Class B (operational, non-3GPP compliant): -40°C to +85°C
4114103 Rev 4.0 December 03, 2014 12
Product Technical Specification &
Customer Design Guidelines Introduction
Note: The internal module temperature must be kept below 100°C. For best performance, the internal
module temperature should be kept below 85°C. Proper mounting, heat sinks and active cooling
may be required, depending on the integrated application.
1.3. Application Interface Features
USB interface (QMI) for Windows 7 and legacy Windows operating systems
MBIM for Windows 8
USB Link Power Management (LPM2) combined with selective suspend to maximize power
savings. Also supports fast wakeup.
AT command interface (refer to document  AT Command Set for User Equipment (UE)
(Release 6), 3GPP TS 27.007, plus proprietary extended AT commands in document
AirPrime MiniCard MC73xx/MC8805 AT Command Reference)
Software Development Kits (SDK) for Windows 7 and Windows 8
Linux SDK, including a Linux API (Application Program Interface)
QDL loader compliant
Support for active antenna control via dedicated antenna control signals (ANT_CTRL0:2)
Dynamic power reduction support via software and dedicated signal (DPR)
Note: Dial-up networking (DUN) is not supported.
1.4. Modem Features
CDMA (EVDO) / LTE operation
Multiple (up to 16) cellular packet data profiles
Traditional modem COM port support for AT commands
USB suspend / resume
Sleep mode for minimum idle power draw
SIM application tool kit with proactive SIM commands
Enhanced Operator Name String (EONS)
MS-initiated and network-initiated detach
Mobile-originated PDP context activation / deactivation
Support QoS profile
Release 99 QoS negotiation – Background, Interactive, and Streaming
Release 97 – Precedence Class, Reliability Class, Delay Class, Peak Throughput, Mean
Static and Dynamic IP address. The network may assign a fixed IP address or dynamically
assign one using DHCP (Dynamic Host Configuration Protocol).
PAP and CHAP support
PDP context type (IPv4, IPv6, or IPv4v6). IP Packet Data Protocol context.
RFC1144 TCP/IP header compression
