50 Ohm , 75 Ohm Right Angle Straight SMB Coaxial Connector Low Reflection

China TOP Electronic Industry Co., Ltd. certification
China TOP Electronic Industry Co., Ltd. certification
Excellent product , good quality , competitive price , professional service , with 10 years cooperation , now we become good friends each other.

—— Ronald-from Boilvia

It is very glad to find TOP as our partner in China , here we can get the best Product and serice , they always put the customer at the first place.

—— Carlos-from Argentina

I am very satisfied with all your service. It is really a good team! with your one-stop solution offer , help us to save much time and money

—— Giancarlo-from Italy

I'm Online Chat Now

50 Ohm , 75 Ohm Right Angle Straight SMB Coaxial Connector Low Reflection

50 Ohm , 75 Ohm Right Angle Straight SMB Coaxial Connector Low Reflection
50 Ohm , 75 Ohm Right Angle Straight SMB Coaxial Connector Low Reflection 50 Ohm , 75 Ohm Right Angle Straight SMB Coaxial Connector Low Reflection 50 Ohm , 75 Ohm Right Angle Straight SMB Coaxial Connector Low Reflection

Large Image :  50 Ohm , 75 Ohm Right Angle Straight SMB Coaxial Connector Low Reflection

Product Details:
Place of Origin: Shen Zhen ,Guang Dong,China
Brand Name: TOP
Certification: CE,ROHS
Model Number: TOP-SMB-1
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: $0.5/pcs ~1.5$/pcs
Packaging Details: 100pcs/PE bag
Delivery Time: 3-5 working days after receiving the payment
Payment Terms: T/T, Western Union,paypal
Supply Ability: 30kpcs/month
Detailed Product Description
Product Name: Rf Coaxial Connector Product Material: Cooper
Cable: 2.6/50+75 S Temperature Range: -65~+165℃
Connector: Male, Female Impedance: 50 Ohm, 75 Ohm
High Light:

coaxial power connector

,

coax cable connectors

50 Ohm , 75 Ohm Right Angle Straight SMB Coaxial Connector Low Reflection







SMB connector Introduction:

SMB (SubMiniature version B) connectors are coaxial RF connectors developed in the 1960s. SMB connectors are smaller than SMA connectors.

    They feature a snap-on coupling and are available in either 50 Ω or 75 Ω impedance. They offer excellent electrical performance from DC to 4 GHz.

    An SMB jack has a male center pin, while an SMB plug has a female basket.

Connectors are available for two SMB cable sizes:

 1.Cable 2.6/50+75 S (3 mm outer / 1.7 mm inner diameter) and

2.Cable 2/50 S (2.2 mm outer / 1 mm inner diameter)



Features

·         Low cost combined with high quality.

·         Broadband performance with low reflection from DC to 4 GHz.

·         Quick connect/disconnect snap-on mating.

·         50 Ohm and 75 Ohm impedance.

·         Various Plating Options.

·         Braid crimp cable attachment and solder center pin.

·         Automated assembly and inspection.

·         Especially designed for subminiature packaging needs where snap-on mating is an advantage.







Applications

·         Telecommunications

·         Wireless

·         PC/LAN

·         Base Station

·         Radio Boards





Our Services

1.   Competitive prices and Short Lead time

 2.   12 Months Warranty

 3.   Perfect After-sale service

 4.   Supporting customization/OEM/ODM

 5.   Technical Supporting





Often referred to as SMZ connector or BT43 this connector is built in accordance to MIL Standard 348.  As mentioned above, it is larger than the 50 ohm connector.  These connectors offer a positive lock feature that prevents the connector from easily detaching once mated.

This connector is typically used in central office applications such as Cisco backplanes and other high end data products.  It is available for RG179 cable as well as the 735 DS3-4 interconnect cables.



Mini-SMB 75 ohm:

This connector is the same physical size as the 50 ohm SMB.

DS3-4 interconnect cables.

They are typically available for the RG179 cable as well as the 735

SMB 50 ohm:

There is only one size SMB for the 50 ohm cable.

They are typically available for the smaller diameter

50 ohm cables Semi Rigid cables such as RG405/U.

such as RG174, RG316/U, Belden 7805, and LMR-100 as well as for

Semi Rigid cables such as RG405/U.

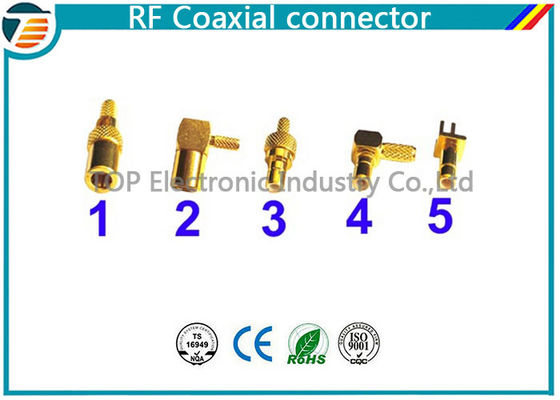

SMB connector show :

Center Contact Orientation:Unlike most connectors, the SMB Plug has a female contact and the SMB Jack has a male contact.  (It is not described as Reverse Polarity since it is the standard for the connector).

50 Ohm , 75 Ohm Right Angle Straight SMB Coaxial Connector Low Reflection 0





Two Physical Sizes:The standard SMB for 75 Ohm cable is a larger connector than the standard SMB for the 50 Ohm applications.  To further confuse, a MINI-SMB for 75 Ohm cable is offered, which is the same size 50 Ohm SMB



50 Ohm , 75 Ohm Right Angle Straight SMB Coaxial Connector Low Reflection 1






Our main RF coaxial connector :

All series connectors:

SMA,SMB,SMC,MCX,MMCX,N,FME,TNC,

BNC,TNC,FAKRA,GT5,U.FL, GSC,IPEX etc
